Faced with the growing popularity of electric vehicles, an automobile repair shop in Armenia has keenly captured the new business opportunity of providing charging services for car owners. To expand its business scope and attract high-value customers, the shop owner decided to add electric vehicle charging services. After evaluating multiple suppliers in the market, our company’s intelligent charging solution finally won his trust, and multiple sets of YG brand Electric Charging Machine were successfully installed, injecting new growth vitality into his store.【WhatsApp/WeChat/Phone】+86 13837122632
Car Charging Machine Parameters
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Demands of the Automobile Repair Shop
After in-depth communication with the shop owner, we clearly sorted out several key motivations for him to choose charging services as a business expansion direction:
- Attract incremental customer flow: It is hoped that public charging services will serve as a “traffic entrance” to attract electric vehicle owners from surrounding communities and passing by to the store, creating opportunities for customers to access its core maintenance and repair business during the 30-60 minutes of charging waiting time.
- Enhance service image: By adding modern intelligent charging piles, the store can demonstrate an image of advanced technology and comprehensive services to customers, cater to the electrification upgrade trend of the automobile industry, and enhance brand competitiveness.
- Create a stable and sustainable source of service income and optimize the store’s revenue structure. The shop owner pays close attention to the balance between ev charging machine price and future returns.
- Simple operation and management: As a store focusing on repair business, it requires charging equipment to realize unmanned and self-service operation as much as possible, so as to avoid occupying too much manpower for management and on-duty work.

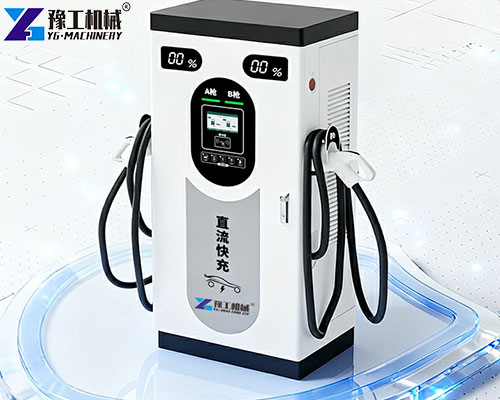

Value Brought by YG Electric Charging Machine
To meet the above needs, the YG DC fast-charging Electric Charging Machine we configured for the repair shop has brought various competitive advantages:
- Become an efficient “customer flow magnet”: Our fast car charging machine can replenish considerable cruising range for car owners in the time of a lunch or a cup of coffee, and this efficient experience is deeply welcomed.
- Intelligent operation, liberate manpower: Through the YG intelligent cloud platform, the shop owner can remotely set electricity prices, monitor equipment status, and view real-time revenue. All charging processes support self-service code scanning payment and completion by car owners. This fully realizes “unmanned” operation, allowing the shop owner to continue focusing on the core repair business.
- Sturdy and reliable, establish a professional image: The industrial-grade texture and stable operation performance of the equipment silently convey the professionalism and reliability of the store. The IP54 protection level ensures that this outdoor Electric Charging Machine can resist local weather changes, reduce failures, and maintain the store’s service reputation.
- Clear investment and considerable returns: We provide a transparent ev charging machine price. Combined with fast charging service fees, potential customer conversion brought to the repair business, and Armenia’s supportive policies for clean energy facilities, this investment has been proven to be an asset that can appreciate rapidly.
Customer Feedback on Electric Charging Machine
After operating for a period of time, the repair shop owner happily shared the results: “These ev charger stand not only directly bring charging income, but more importantly, many new customers come to the store to rest while charging, and then consult or complete maintenance, film coating and other businesses, truly realizing the linkage growth of business.”
Contact Us
If your enterprise is also looking for a breakthrough for business upgrading or transformation, electric vehicle charging service may be that key engine. We are committed to providing reliable intelligent charging solutions for customers around the world.
Co-create new business value
- Whether it is an automobile repair shop, 4S store, shopping mall, hotel or any commercial place hoping to attract customer flow, we can provide you with professional business prospect analysis, helping you transform charging services into a tangible profit growth point.
Obtain customized solutions
- We provide one-stop services from professional consulting, solution customization to equipment supply. Welcome to contact our consultant team through our official website, email or international business hotline to obtain customized Electric Charging Machine solutions and detailed quotations for your business scenarios.
Enjoy full-process service support
- Choosing YG, you will get a full-cycle service covering installation guidance, cloud platform access and long-term operation and maintenance support. We have rich experience in serving the international market to ensure the stable and compliant operation of equipment in Armenia.
Start cooperation
- We look forward to working with all visionaries to jointly explore unlimited business opportunities under the green economy. Please contact us immediately and take the first step in business expansion.【WhatsApp/WeChat/Phone】+86 13837122632
