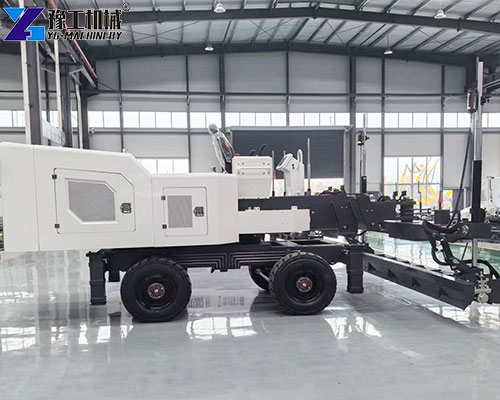

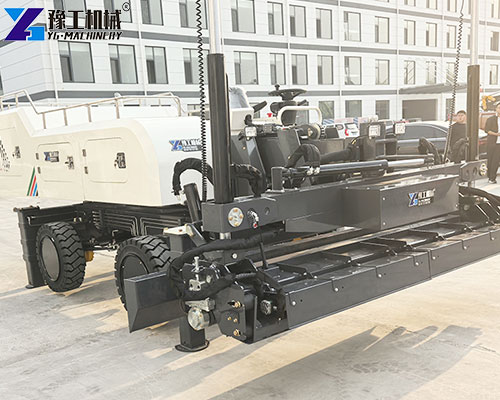

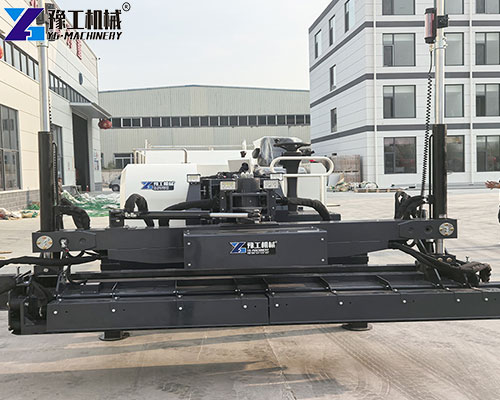

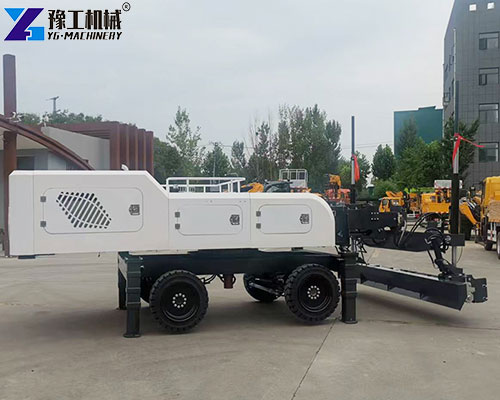

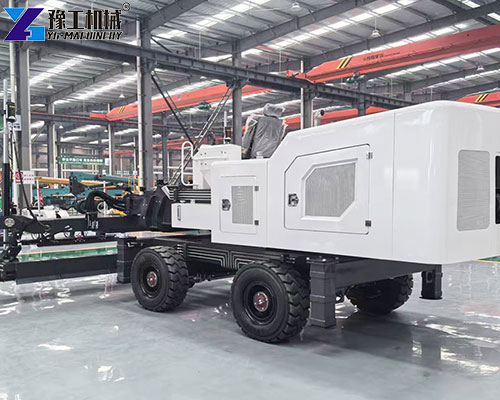

The YG laser concrete screed machine integrates a 360-degree rotating telescopic arm, intelligent laser control, and a hydraulic four-wheel drive system, ensuring mirror-smooth concrete surfaces. Whether facing complex slopes or large-span construction, it handles every challenge with ease and delivers perfect results. Contact us anytime for more product details and an exclusive quotation!【WhatsApp/WeChat/Phone】+86 13837122632
Hot-Selling Concrete Laser Leveling Machine Parameters
| YG-ZP30 | |
| Engine brand model | Yanmar 4TNV94L |
| Type | Diesel |
| Power | 35.5KW/48hp |
| Fuel tank volume | 100L |
| Hydraulic oil volume | 150L |
| Hydraulic system | Danfoss |
| Laser transmitter | American Tempo |
| Laser receiver | German Mopar |
| Laser system control effect | Flat, inclined or double slope (3D) |
| Laser system control method | Microcomputer laser scanning |
| Trapping method | Hydraulic Cage Paving |
| Auger power | Hydraulic motor |
| Advantages of Jiaobanlong | Flip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durable |
| Reach length | 6000mm |
| Vibrating plate width | 3100mm |
| Leveling thickness | 100-450mm |
| Walking weight/working speed | 4-8km/h 24m/min |
| Walking drive form | Hydraulic four-wheel drive Outrigger |
| Steering method | One-touch four-leg self-leveling |
| Walking tires | Front wheel + four wheels + crab walk |
| Cleaning machine flow | 15L/min |
| Body size | 5350x3650x2040mm |
| Weight | 5500 kgs |
Technological Innovations of the Laser Concrete Screed Machine

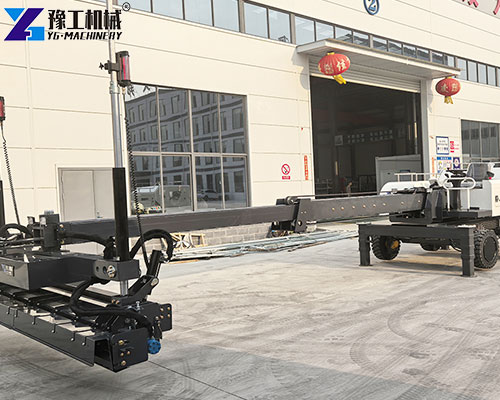

- 360-degree omnidirectional operation:
The telescopic arm design provides a 6000mm working radius and a 3100mm vibration plate width, forming a unique fan-shaped working area. This concrete laser screed for sale can complete large-area construction without moving the main unit, significantly improving efficiency. - Intelligent pressure balance system:
The floating vibration plate automatically adapts to ground level variations, ensuring consistent leveling thickness. During operation, it adjusts vibration frequency in real-time to maintain concrete density that meets engineering standards. - Multi-mode steering system:
The innovative crab steering function enables flexible movement in confined spaces. The combination of front-wheel and four-wheel steering greatly enhances maneuverability in complex conditions.
Efficient Construction with Laser Concrete Screed Machine
- Intelligent hydraulic control system:
Equipped with a Danfoss hydraulic system and a 150L high-capacity hydraulic tank, the machine ensures stable performance even under long-term heavy-duty operation. The hydraulic system precisely controls vibration frequency and walking speed for optimal construction results. - Automatic elevation control system:
Using microcomputer laser scanning technology, it continuously monitors ground height changes and automatically adjusts the leveling head height to maintain a precision level within ±1.5mm. - Efficient cleaning and maintenance system:
With a 15L/min high-pressure cleaning system, concrete residue can be quickly removed. The innovative auger flipping design makes cleaning and maintenance easier and faster, greatly reducing downtime.
Case Study
- Project background and technical requirements:
This project, located in southern France, is part of an intelligent logistics warehouse complex with a total area of 120,000㎡ and strict surface flatness requirements. After multiple technical comparisons, the French client finally chose YG’s concrete laser leveling machine for its high precision and excellent cost-performance ratio. - Equipment performance and construction results:
During the six-month implementation, our telescopic arm laser concrete leveling machine demonstrated outstanding efficiency. Equipped with a 6000mm telescopic arm and 3100mm vibration plate, together with the microcomputer laser scanning system, it maintained precision within ±1.5mm—well above project standards. The hydraulic four-wheel drive system enabled smooth operation even in France’s rainy climate, ensuring on-time progress. - Technical support and after-sales service:
YG assigned a French-speaking technical team for on-site training and construction guidance, ensuring local operators could master the concrete laser leveling machine. Comprehensive after-sales service and timely spare parts supply ensured project success and led to follow-up orders from the client.
FAQs about Boom Laser Screed
Q1: What is a boom laser screed? How is it different from ordinary ride-on concrete leveling machines?
A:
- Different working principles: Standard ride-on levelers travel across fresh concrete via their drive wheels to finish leveling. In contrast, the main body of boom laser screed stays stationary. Its 360° rotating platform and extendable mechanical arm (up to 6 meters for YG-ZP30) push the leveling head to target areas, finishing vibration, scraping and leveling as the arm retracts.
- Core advantage: The standout feature of the boom-type model is that its base never sinks into fresh concrete. It is perfectly suited for projects with double-layer two-way steel mesh reinforcement, large-area superflat floors, and projects requiring strict floor bearing capacity.
Q2: What core benefits can boom laser screed deliver for large-area floor construction?
A:
- Produce genuine Superflat Floor: Supported by high-precision laser control systems, the finished floor’s overall flatness (Ff) and levelness (Fl) outperform results from conventional machines, easily meeting strict specifications for logistics warehouses and VNA narrow-aisle racking systems.
- Protect steel reinforcement: Since the machine avoids driving onto uncured concrete, it eliminates risks of bent or damaged steel mesh and embedded parts common with traditional equipment.
- Cut costs and boost efficiency: Each arm extension covers a wide working range, drastically reducing construction joints, improving crack resistance and extending the overall service life of concrete floors.
Q3: How does the machine maintain leveling accuracy on uneven ground?
A:
The YG-ZP30 comes with one-click four-legged automatic leveling:
- Four individually retractable hydraulic outriggers
- After tapping the auto-level button, the onboard microcomputer detects the machine’s tilt and adjusts each leg to level the body automatically
- The full adjustment process takes roughly 30 seconds
Even on crushed stone bedding or slightly uneven base courses, the unit quickly adjusts into optimal working condition and keeps the leveling head perfectly horizontal at all times.
Maintenance and Usage Recommendations
- Daily maintenance points:
Regularly check the hydraulic system for leaks and replace worn components promptly. It is recommended to change the hydraulic oil every 500 working hours to keep the laser concrete leveling machine in optimal condition. - Operator training:
Professional operation is key to maximizing performance. Operators should be proficient in laser calibration, telescopic arm control, and other core skills to ensure the best results.
Choose YG’s Laser Concrete Leveling Machine
The laser concrete screed machine, with its excellent performance and reliable quality, has become the preferred equipment for modern construction. We sincerely invite you to experience this innovative product firsthand. Whether you want to explore more concrete laser screed for sale options like the ride-on model or get the best pricing, our team can provide customized solutions. Contact us now for free technical guidance and equipment demonstrations—let’s build better floors and a brighter future together!【WhatsApp/WeChat/Phone】+86 13837122632
