As a typical modern electric cutting tool, the high frequency wall saw has become the top pick for numerous construction teams thanks to its lightweight frame, intelligent control system, and powerful power output. It adopts a water-cooled permanent magnet synchronous high-frequency motor as its core power unit, delivering direct and efficient energy conversion. While maintaining premium cutting results, it greatly simplifies on-site operations and makes precise, fast, and safe cutting easily achievable.
Technical Parameters of Wall Saw for Sale
| Parameter Item | Specification |
| Max Cutting Depth | 510 mm |
| Max Compatible Saw Blade Diameter | φ1200 mm |
| Saw Blade Fixing Method | 6 countersunk head screws, 110 mm pitch circle |
| Motor Type | Water-cooled permanent magnet synchronous high-frequency motor |
| Max Output Power | 16 kW |
| Ingress Protection Rating | IP 67 (dustproof & waterproof) |
| Wall Saw Main Unit Weight (with feed motor) | 27 kg |
| Main Motor Weight | 18 kg |
| Control Unit Voltage | 380-460 V (single-phase optional) |
| Applicable Frequency | 50 Hz / 60 Hz |
| Control Unit Weight | 19 kg |
| Wireless Remote Controller Weight | 2 kg |

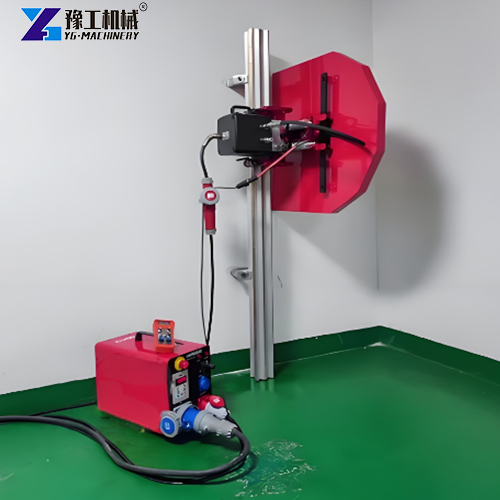

As shown in the table, the full system features a light overall weight. The split design separating the control unit from the main machine allows flexible layout on site, making it ideal for high-rise buildings and narrow confined spaces.
What Unique Advantages Does YG High Frequency Wall Saw Offer?
The core competitiveness of the high frequency wall saw comes from three major technical innovations:
- Ultra-high power density, compact body with strong power. Even with a smaller size, the permanent magnet synchronous motor outputs a robust 16 kW and maintains constant torque across the full speed range. This means the motor keeps a stable power output when cutting dense rebar, without obvious speed drop or jamming.
- Intelligent variable frequency control with real-time load detection. The built-in digital frequency converter monitors cutting resistance at a millisecond-level response and automatically adjusts feed speed. When cutting concrete with uneven hardness, the system smoothly regulates feed rate to protect saw blades and guarantee flat cutting surfaces. The converter also supports soft start to avoid instant current surges and extend machine service life.

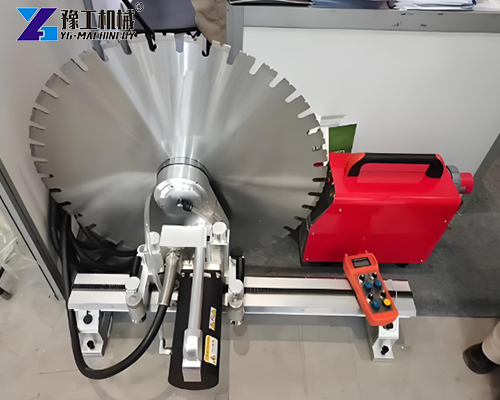

- Simplified wiring for quick setup. Eliminating complicated pipeline connections, the full set of high frequency wall saw only uses one quick-plug cable to link the control unit and main machine. Skilled operators can finish full assembly and get ready for cutting within 10 minutes after unpacking. The standard wireless remote controller lets operators move freely within a 15-meter radius to accurately control feed direction and speed without extra helpers.
Factory Configuration & Ready-to-Use Guide for High Frequency Wall Saw

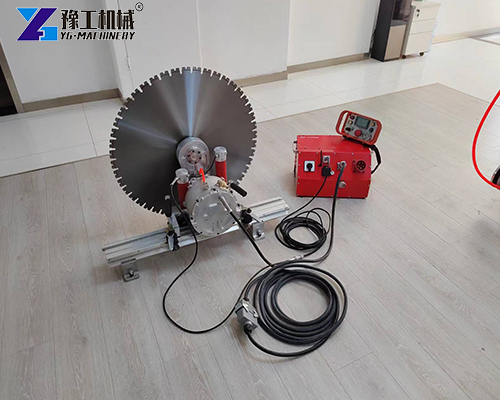

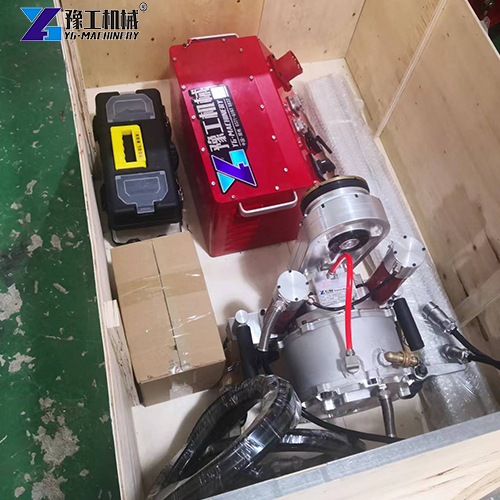

When you order a high frequency wall saw, YG provides a complete integrated cutting system ready for immediate use, instead of scattered separate parts. Standard factory configuration covers all required components from the main unit to accessories, so the machine can be assembled and put into operation in minimal time once delivered to construction sites.
1. Standard Factory Accessory List
| No. | Accessory Name | Spec / Qty | Description |
| 1 | Wall Saw Head (Main Unit) | 1 set | Equipped with a feed motor, only 27 kg; the core cutting component of the whole system |
| 2 | Guide Rail | 1 set (3 m total) | Composed of one 2 m rail + one 1 m rail, freely combinable to match wall height |
| 3 | Control Station (Control Unit) | 1 unit | Integrated frequency drive & operation panel, 19 kg suitcase-style for easy transport |
| 4 | Power Cables | 2 pcs (7.5 m each) | 6 mm² gauge, connects control unit and main machine; standard length fits most regular working radii |
| 5 | Blade Guard | 1 pc | Covers upper half of saw blade, providing safety shielding and cooling water diversion |
| 6 | Diamond Saw Blade | 1 pc (φ800mm) | Factory standard fitting; ready for cutting right after delivery |
| 7 | Wireless Remote Controller | 1 pc | Only 2 kg, stepless speed remote control within 15 meters |
| 8 | Tool Kit | 1 set | Contains countersunk screw wrench, rail expansion bolts, grease gun and other daily maintenance tools |
2. Cable Specification Notes
Two standard 7.5-meter 6 mm² cables are included. A single cable works for short-distance tasks and meets most construction radius demands. YG offers customized extended cables if longer working distance is needed on site.
3. Complete Ready-to-Use Supporting Kit
With the above full configuration, you can start construction right after receiving the equipment with no extra accessories purchased separately. The 3-meter guide rail handles most wall thickness cutting (max cutting depth 510 mm). The φ800mm diamond blade covers common wall opening and cutting tasks. Special wrenches and expansion bolts in the tool kit enable fast and easy rail installation. Even if you use a wall mounted concrete saw for the first time, you can finish assembly following the operation manual after checking all items against the list. Every accessory serves a clear purpose with no redundant or missing parts.
What Practical Construction Problems Can High Frequency Wall Saw Solve?
The high frequency wall saw performs excellently across multiple construction scenarios:

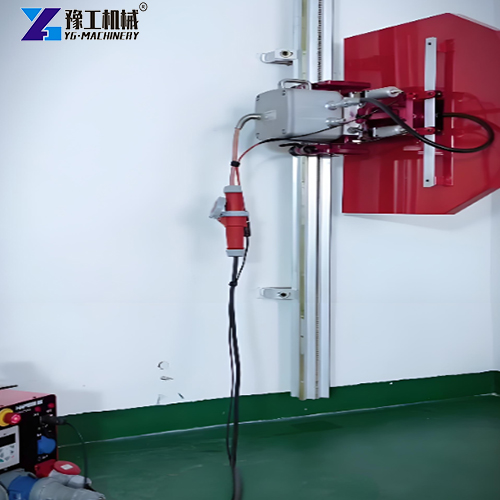

- Renovation wall openings: When cutting doorways, window openings, or elevator shafts in existing buildings, the wall mounted concrete saw mounts firmly on walls via guide rails to deliver perfectly straight cutting lines and avoid secondary repair work.
- Bridge & tunnel maintenance: Cut bridge flange slabs, tunnel linings, and anti-collision walls. The high-frequency motor delivers continuous high power output to tackle high-strength concrete effortlessly.
- Industrial plant foundation retrofitting: Cut concrete around anchor bolts or carve pipeline slots. The water cooling system effectively suppresses dust to meet eco-friendly construction standards.
- Emergency rescue & rapid demolition: The fast-to-deploy concrete wall saw cutting machine can quickly slice damaged structural sections during sudden structural failures to reserve time for subsequent reinforcement work.
How to Pick a Suitable High Frequency Wall Mounted Concrete Saw?
Faced with abundant wall saw for sale options on the market, evaluate machines comprehensively from the following five aspects:
- Cutting depth & saw blade size: Select the maximum cutting depth based on wall thickness; 510 mm covers most walls generally. Larger-diameter saw blades remove thicker concrete per pass, but you must check the matching motor power.
- Motor power & cooling mode: 16 kW is the mainstream configuration. Water cooling outperforms air cooling for long continuous operation and better resistance to dusty job sites.
- Intelligent control level: Prioritize models equipped with wireless remote control and variable frequency speed regulation for safer operation and higher cutting precision.
- Weight & portability: Main unit weight under 30 kg simplifies segmented installation at heights; lightweight control unit reduces transport labor.
- Ingress protection & durability: IP 67 rating blocks water and dust intrusion on construction sites, lowering failure rates and extending machine service life.
Additionally, confirm whether manufacturers supply complete matching accessories (guide rails, saw blades, cables, etc.) and after-sales training support, which helps your team master new equipment rapidly.
Contact YG
Even top-tier machines cannot deliver full performance without skilled operators. Alongside every delivered high frequency wall saw, YG supplies detailed Chinese-English bilingual operation manuals and troubleshooting guides. On-site or remote operation training is available upon request. Our training covers the full workflow from guide rail installation, blade replacement, to precise feed control via wireless remote. Whether your team is new users of a concrete wall saw cutting machine or veteran crews aiming to upgrade construction standards, YG’s after-sales support helps your equipment reach full load production in the shortest time. Reliable purchase and effortless operation are our ultimate pursuit for every cooperation.
