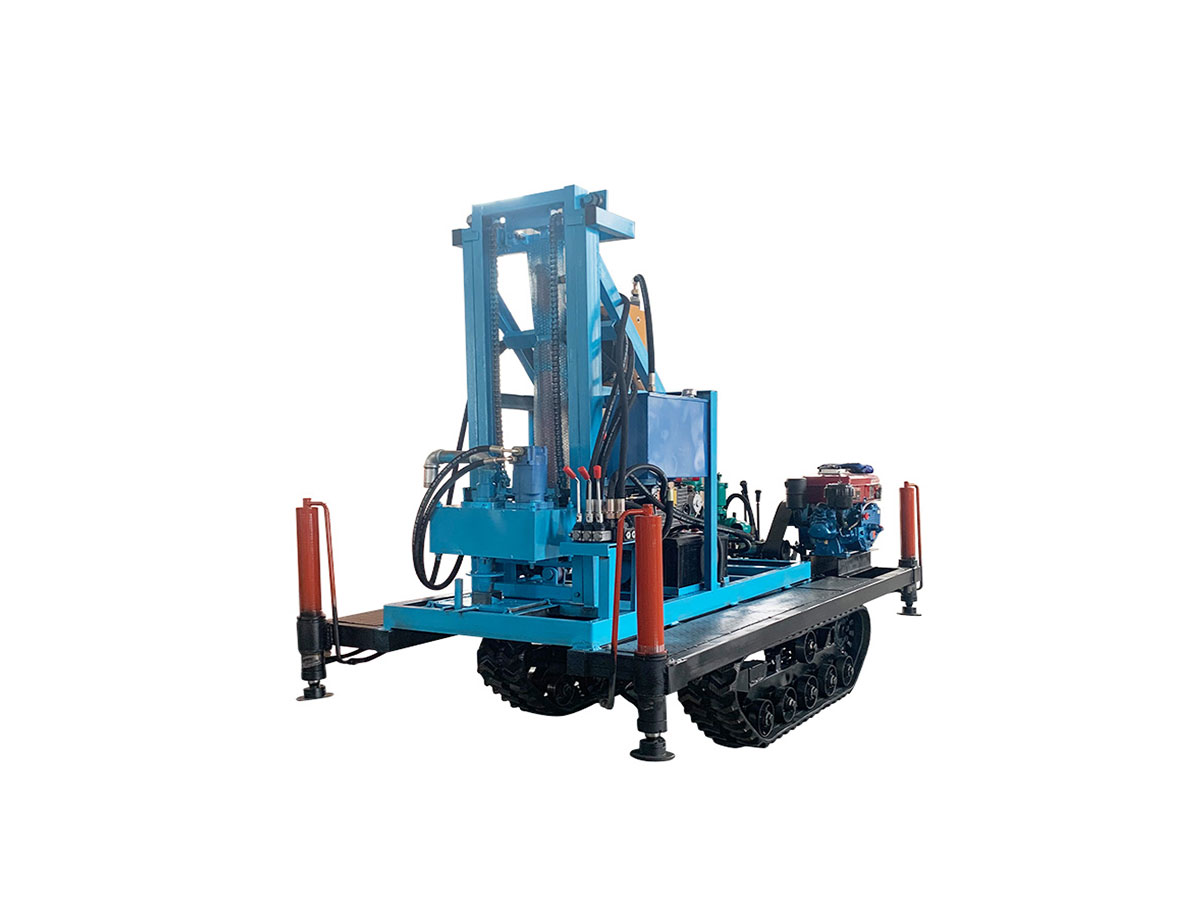

When searching for a reliable water source, terrain is never a true obstacle. Imagine a drilling machine capable of crossing muddy fields, climbing steep slopes, and operating flexibly in narrow courtyards—the crawler-type small well drilling rig YG-HY200 is exactly such a breakthrough solution. It perfectly integrates the performance of large drilling rigs with the portability of small equipment, making water well development within 150 meters simpler and more efficient than ever. Whether for remote farm irrigation or village drinking-water projects, this portable well drilling machine can arrive quickly and start working immediately. Feel free to contact us anytime!【WhatsApp/WeChat/Phone】+86 13837122632
Small Well Drilling Rig Parameters
| Model | YG-HY200 |
| Engine | Diesel |
| Drilling Power | 22HP |
| Walking power | 8HP |
| Max drill depth | 150m |
| Drill diameter | Φ75-Φ300mm |
| Electric start | include |
| Radiator | include |
| Lifting power | 800KG |
| Lifting height | the highest point of 2.5 meters machine |
| Volume | 12 CBM |
| Weight | 1000kg |

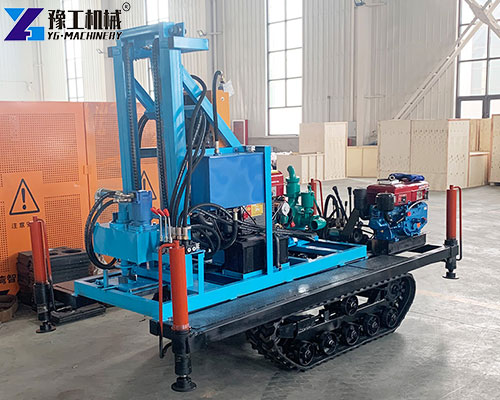

Excellent Terrain Adaptability of the Portable Well Drilling Machine
- Flexible mobility and capability for tight-space operations
The crawler chassis gives the YG-HY200 outstanding off-road performance, enabling stable movement through mud, slopes, and other complex terrains. Its compact body and 2.5-meter lifting height allow the rig to operate in confined areas such as courtyards, solving the limitations that traditional large drilling rigs cannot overcome. - Fast deployment and reduced relocation costs
Compared with truck-mounted rigs, this portable well drilling machine does not rely on large transport vehicles and can relocate directly at low speed, reducing hoisting frequency and cost. Hydraulic outriggers further optimize leveling efficiency, allowing the machine to begin drilling immediately upon arrival.

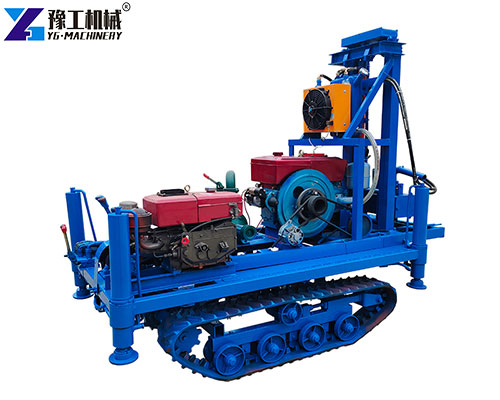

Balanced Power System and Drilling Efficiency of the Portable Well Drilling Machine
- Collaborative advantages of diesel power and electric start
The 22HP diesel engine provides strong power, while the electric start eliminates ignition difficulties in field conditions and reduces operator fatigue. The combination of air-cooling and water-cooling systems ensures stable operation under high temperatures and extends the service life of key components. - Wide bore diameter and deep-drilling capability for diverse needs
With a diameter range of Φ75–Φ300mm and a maximum depth of 150 meters, it meets the requirements of civil drinking-water wells (typically <200mm), irrigation wells, and geothermal heat pump wells. Its 800kg lifting capacity ensures safe drill-rod handling in deep-hole operations.

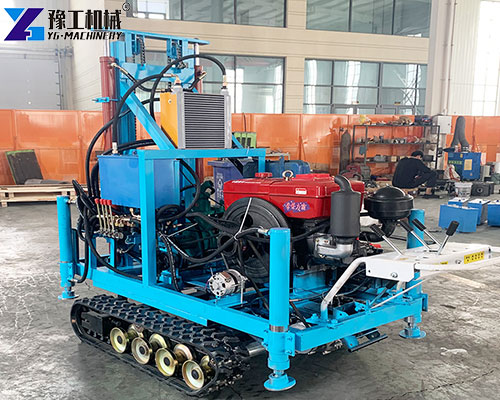

Small Well Drilling Rig’s User-Friendly Design
- Intuitive control and low maintenance cost
The centralized hydraulic control valves are clearly arranged, allowing beginners to master basic operation after short training. The standard radiator reduces failure rates, and daily maintenance requires only basic cleaning and lubrication. - Enhanced safety and stability
Rubber tracks prevent damage to urban road surfaces while reducing vibration and noise. Hydraulic outriggers provide additional support during drilling, preventing sinking or tilting and ensuring job-site safety.

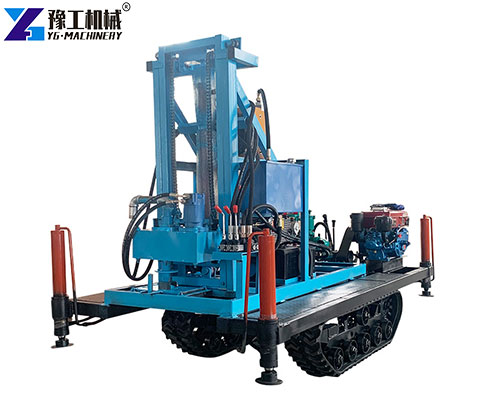

Small Well Drilling Rig Case Studies
For agricultural irrigation, rural water supply, and infrastructure construction projects, a small well drilling rig has become the top choice for more and more contractors thanks to its great mobility and wide adaptability. This article covers two real field application cases of the YG-HY200 rig from two totally different regions: the Dominican Republic in the Caribbean and Oman in the Middle East. We will show how this machine delivers steady performance in rough terrain and extreme weather.
Case 1: Agricultural Irrigation Project in the Dominican Republic
Client Background
A coffee plantation sits in the hilly San Cristóbal Province of the Dominican Republic. It long relied purely on natural rainfall for irrigation. Shifting rainfall patterns caused by climate change left the farm in urgent need of water wells to guarantee a stable water supply for coffee trees.
Client Requirements
The plantation’s biggest obstacle was its terrain: rolling, steep hills that regular truck-mounted drilling rigs could not access at all. The local ground consists of mixed clay and gravel layers, which set high standards for the rig’s crossing ability and drilling power. The farm needed a lightweight, small rig that could work steadily on sloped ground.
YG Solution: YG technical team recommended the YG-HY200 portable well drilling machine. It features a crawler undercarriage that delivers outstanding traversing capacity and stability on rough ground. Its 22HP diesel engine provides strong drilling power. With an 800kg lifting capacity and 2.5m lifting height, it greatly simplifies fast loading and unloading of drill rods. Before shipment, YG matched suitable drill bits based on local geological conditions and provided complete operation training documents for the client.
Project Process
The client worked through key specs, including target drilling depth, borehole diameter, and ground types, with our sales team. Since the remote plantation lacked stable electricity, YG specially suggested the diesel-powered model. After the rig arrived, YG after-sales specialists walked the client through on-site assembly and commissioning via remote video calls.
Operation Results
After putting the YG-HY200 into service, crews drilled multiple water wells ranging from 80m to 120m deep through mixed clay-gravel strata, with a consistent daily drilling rate of roughly 25 meters. The plantation’s irrigation troubles were fully resolved, and coffee tree growth improved noticeably. The farm manager commented, “This small well drilling rig runs efficiently even on restricted hilly ground. It completely fixed our irrigation water shortage and has become an essential piece of equipment for farm operations.”
Case 2: Rural Water Supply Project in Oman
Client Background
A remote inland village in Oman suffered chronic shortages of drinking water. The local government planned to drill water wells to improve residents’ water access. The project site sits on the edge of the desert with dry, scorching weather where summer temperatures often top 40°C, placing strict demands on the rig’s heat resistance and overall reliability.
Client Requirements
The project required a drilling rig capable of consistent work in dry sandy soil and medium-hard limestone formations. It also needed easy transport and fast setup. With a limited project budget, the client prioritized cost efficiency and low long-term running costs.
YG Solution: YG offered the client the YG-HY200 portable water well drilling rig for sale. This model reaches a maximum drilling depth of 150 meters and supports borehole diameters from 75mm to 300mm, flexibly fitting diverse geological conditions and water yield demands. Standard built-in radiators and an electric starting system ensure reliable operation under high temperatures. YG also recommended matched drill tool sets tailored to Oman’s sandy ground geology.
Project Process
The client contacted YG via an online inquiry. After several rounds of parameter confirmation and price negotiations, the two sides finalized the purchase order. YG ran full factory inspection tests before delivery and sent complete machine operation videos to the client. Once the equipment reached Oman, our after-sales team delivered remote installation guidance and hands-on operation training.
Operation Results
Over five weeks of continuous work, the YG-HY200 completed eight water wells with depths between 60m and 100m, holding a daily drilling speed of 18 to 22 meters. The machine maintained stable running even in temperatures over 40°C. The project’s technical staff shared feedback: “This rig adapts to arid conditions far better than we expected. Its consistent performance gives us a dependable drilling solution, and YG’s after-sales support kept our project moving forward without delays.”

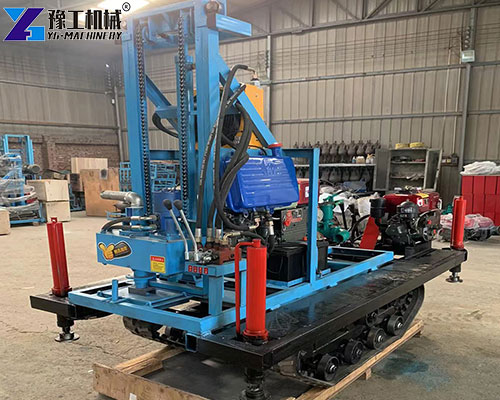

A Smart Choice in the Era of Lightweight Drilling
The crawler-type YG-HY200 small well drilling rig redefines small-scale drilling efficiency with practical parameters, flexible adaptability, and user-friendly operation. Whether you are an individual farmer, drilling service team, or engineering project group, this reliable portable water well drilling rig for sale enables efficient groundwater development. Contact our professional team now to get a customized solution and make clean water easily accessible! Looking for more options? Feel free to check out our wheeled well drilling rig.【WhatsApp/WeChat/Phone】+86 13837122632
