When your project involves lifting medium-weight loads but the worksite restricts the use of large cranes, efficiency and feasibility often conflict. Now, the solution is here — the 5 ton spider crane. This mid-sized spider crane from YG Machinery achieves a perfect balance between compact mobility and powerful lifting capacity. Designed specifically to perform 5-ton lifting tasks efficiently in challenging environments, it is the key equipment to boost project profitability. In addition, YG also offers 3-ton and 8-ton spider cranes — feel free to contact us anytime for an exclusive quotation!【WhatsApp/WeChat/Phone】+86 13837122632
Hot-Selling Small Tracked Crane Parameters
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |

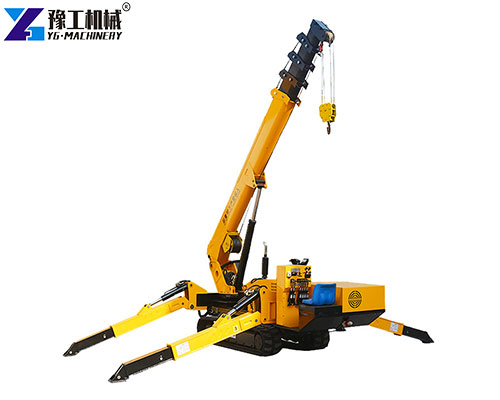

5 Ton Spider Crane: The Versatile All-Rounder with Excellent Return on Investment
If the 3-ton model is the highly maneuverable “narrow-space specialist” and the 8-ton model is the “heavy-duty powerhouse” focused on lifting capacity, then the 5-ton spider crawler crane is undoubtedly the “golden middle ground” on the market — also the most popular mainstream model with the highest inquiry volume and rental utilization rate.
Its user base is mainly concentrated in rental companies and general construction contractors, for a simple reason: the 5-ton lifting capacity covers more than 80% of conventional indoor and outdoor lifting demands (steel structure installation, equipment erection, curtain wall maintenance, etc.). Meanwhile, its compact body and crawler travel system allow access to most existing buildings and municipal construction sites.
For rental companies, a 5-ton spider crawler crane means a wider customer base, higher turnover rate, and shorter payback period. For general contractors, it is a highly practical “one machine for multiple tasks” solution. It avoids the limitation of the 3-ton model when handling slightly heavy components, and also eliminates the higher procurement and transportation costs of the 8-ton model.
This delicate balance among performance, size, and cost makes it the most robust model in terms of return on investment, as well as one of the best-selling products of YG Machinery worldwide.
Advantages of the YG 5 Ton Spider Crane
- Perfect balance of performance and space: With a total weight of 6.2 tons, it integrates a 5-ton lifting capacity and 16.8-meter working height, making it one of the most space-efficient solutions for mid-scale lifting tasks. This is exactly the ideal model for those looking for a mini tracked crawler crane.
- Efficiency first: A 12 m/min hoisting speed combined with a 38-second 360° rotation cycle far exceeds similar products, significantly shortening each lifting operation and improving overall project progress.
- Smart remote control for safety: Wireless control gives operators the best visibility and keeps them away from load zones. Together with the smooth hydraulic system, this spider crawler crane minimizes safety risks and enhances precision.
- Excellent terrain adaptability: The hydraulic motor-driven tracked chassis and 36% climbing ability allow it to easily handle factory floors, soft soil, and sloped surfaces.
- Durable and globally proven: From its pentagonal anti-torsion boom to its high-strength wear-resistant hook, every detail uses top-quality materials and mature craftsmanship. We also offer customization to make this mini crawler crane for sale perfectly suited to your working conditions.
Application Scenarios of 5 Ton Spider Crane
The 5 ton spider crane is a versatile machine for medium-scale lifting operations, typically used in:
- Urban municipal projects: Ideal for installing streetlights or replacing transformers on busy streets, offering minimal road occupation and fast setup.
- Factory equipment installation: Precisely lifting and positioning medium-sized machines, production line components, or large storage tanks in factories.
- Steel structure and prefabricated component installation: Used for lifting and positioning beams, floor decks, and other components in stadium or building construction.
- Logistics and warehousing: Efficiently lifting heavy goods or large sorting equipment inside warehouses or at loading docks.
Real Cases: Exported to Slovakia and the Netherlands
- Case 1 (Slovakia):
Our YG-5 model 5 ton spider crane was exported to a large industrial zone in Slovakia for production line upgrades inside an existing factory. The customer needed to frequently move and lift several-ton components in a workshop filled with dense equipment. This mini tracked crawler crane, with its flexible 360° rotation and remote control operation, navigated narrow aisles with ease and accurately positioned heavy machinery. Its stable and efficient performance earned high praise from the client. - Case 2 (Netherlands):
In a warehouse project near a canal in Rotterdam, the ground load capacity was limited, and space was tight. The contractor chose our spider crawler crane to lift steel roof structures. The rubber tracks effectively distributed ground pressure, while the 16.8-meter lifting height and precise remote-control operation ensured all components were safely and efficiently installed, completing the project on schedule before the rainy season.
If your medium-scale project demands a lifting machine that combines power, flexibility, and efficiency, the 5 ton mini tracked crawler crane from YG Machinery is your best choice. If you need a smaller or larger lifting capacity option, you can check the 3-ton tracked crawler crane or the 8-ton tracked crawler crane. Contact us now for a professional solution and a competitive quote, and let this high-performance small tracked crane bring strong momentum to your business growth!【WhatsApp/WeChat/Phone】+86 13837122632
