In Cancun, Mexico, a small hotel dedicated to improving service quality and embracing the green travel trend decided to install charging facilities in its parking lot to attract a growing number of new energy vehicle owners. Upon the recommendation of industry friends, the hotel’s procurement manager finally got in touch with us. With our professional solutions and reliable products, we successfully installed two advanced EV Charging Machines for the hotel.【WhatsApp/WeChat/Phone】+86 13837122632
Parameters of Dc Fast Charger for Sale
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Why Choose YG’s EV Charging Machines?
The hotel ultimately selected the YG brand thanks to our products’ outstanding comprehensive advantages, which perfectly meet the needs of commercial operation scenarios:
- Safety First, Strong Adaptability: The equipment has an IP54 protection rating and multiple protection functions such as over-temperature, over-voltage, and leakage protection, enabling it to easily cope with the humid and salty spray climate of Cancun’s coastal area. The sheet metal casing and flame-retardant materials build a double firewall for safe operation.
- Intelligent Operation, Effortless Management: Through the intelligent cloud platform, the hotel can remotely monitor equipment status, perform real-time meter reading and billing, and support scan-to-pay, which greatly simplifies the management process and enhances the convenience of self-service use for guests.
- Durable and Reliable, High Investment Value: With a MTBF (Mean Time Between Failures) of up to 100,000 hours and OTA remote upgrade function, the EV Charging Machine is guaranteed to operate stably for a long time and keep updating continuously, protecting the hotel’s long-term investment. Considering both performance and service comprehensively, the dc fast charger price we offer demonstrates extremely high cost-effectiveness.
Customized Solutions and Equipment Selection
Instead of providing a one-size-fits-all solution, we carried out customization based on in-depth analysis:
- Scenario-based Power Matching: Combining the scale of the hotel parking lot, estimated passenger flow, and mainstream electric vehicle models, we recommended 60KW DC fast charging. This power level can charge most vehicles to 80% battery capacity within 30-40 minutes, meeting guests’ demand of “charging upon check-in and leaving with a full battery” and serving as a highly efficient ev quick charger.
- Power Supply and Installation Evaluation: We assisted the hotel in evaluating the capacity of the existing power grid and confirmed that it can support the simultaneous operation of two devices. The floor-mounted EV Charging Machine features flexible installation, without damaging the existing ground structure, and the construction is fast and efficient.
- Compliance and Payment Localization: We ensured that the equipment complies with international and local safety standards, and integrated mobile payment methods to provide guests with barrier-free operation.
Customer Feedback on EV Charging Machine
The hotel manager was very satisfied with the project results: “Initially, we compared several models of dc fast charger for sale, and YG’s professional advice left a deep impression on us. The two installed devices have not only become a promotional highlight of our hotel, bringing in direct new customers, but also operate extremely stably with almost no management burden. Guests are very fond of this fast and convenient charging experience.”
EV Charging Machine Frequently Asked Questions (FAQ)
Q: Is the installation process of the charging pile complicated? How long does it take?
A: For sites with standard power distribution conditions, the installation is highly efficient. We provide detailed installation guidelines and remote support. Usually, the installation and commissioning of a single device can be completed within 1-2 working days, minimizing the impact on hotel operations.
Q: What are the advantages of your equipment casing? Will the casing rust?
A: The sheet metal factory we cooperate with is a shareholder-owned enterprise of our company. It strictly implements the processes formulated by the quality control department for production. The painting process adopts oven baking to ensure one-time molding, which is the same as the original car painting process. This process ensures that the casing remains bright and new even after 8-10 years of outdoor exposure to wind and sun.
Q: Besides hotels, what other places are your charging piles suitable for?

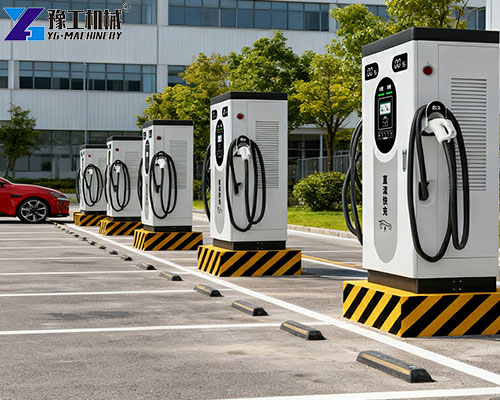

A: Our DC fast charging equipment has a wide range of applications, and is also suitable for shopping malls, public parking lots, fleet operation stations, etc. Whether it is an ev quick charger to meet the demand for temporary fast charging, or a core device for charging stations, we can provide matching power and solutions.
Q: How is the waterproof performance?
A: The waterproof foam adhesive used in the casing is imported adhesive tape, which is applied by robots through programmed processes to ensure one-time molding with moderate hardness and softness. The adhesive tape we selected costs nearly 10 yuan per meter, which is nearly 4 times the price of domestic third and fourth-tier brands. A poor choice of waterproof foam adhesive process will lead to subsequent problems such as inability to open the casing, adhesive tape decay, water ingress after 2-3 years of use, and equipment damage.
Contact Us
If you are like the hotel in Cancun, looking for reliable and intelligent charging solutions to enhance your competitiveness, or want to learn more detailed information about dc fast charger for sale and the specific dc fast charger price, please feel free to contact us at any time.【WhatsApp/WeChat/Phone】+86 13837122632
