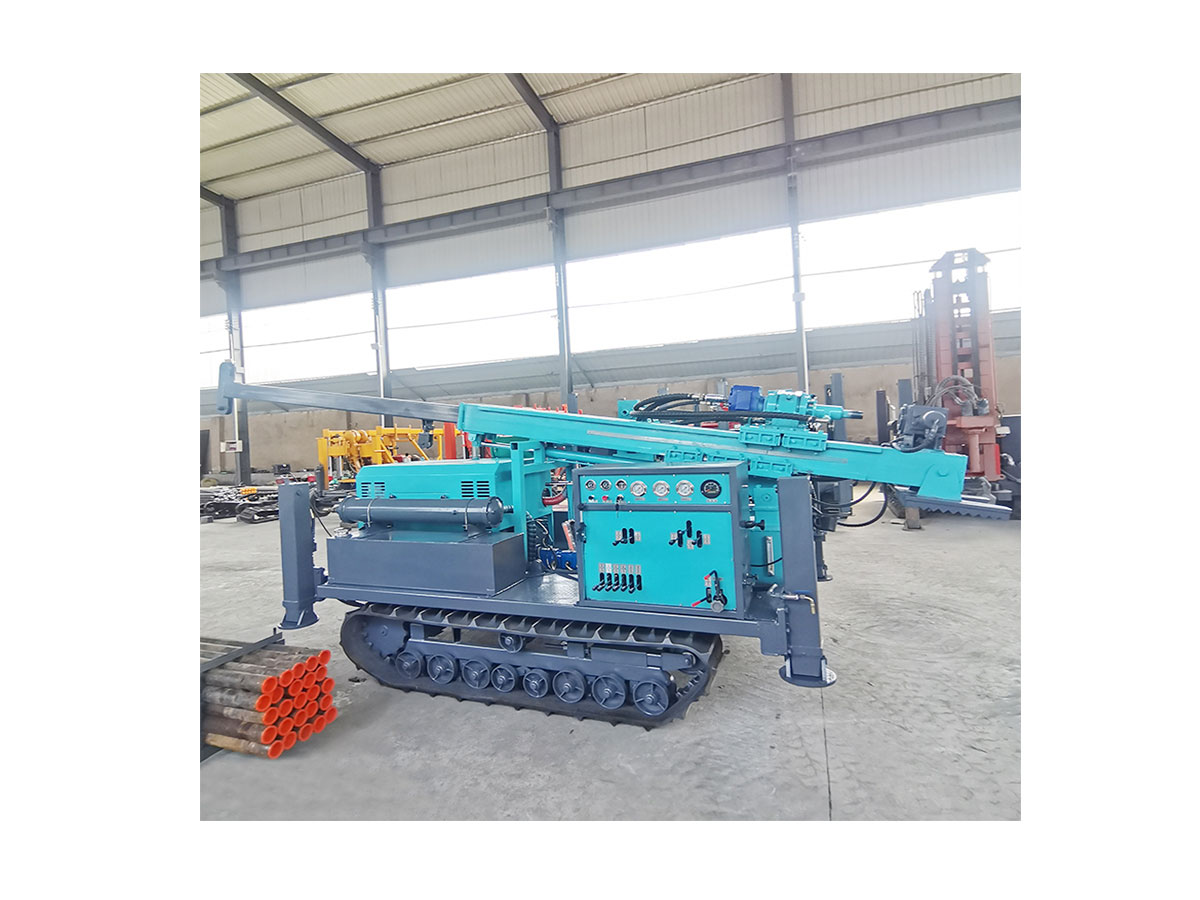

The YG series full hydraulic borehole rig for sale, with its outstanding exploration capability and environmental adaptability, successfully assisted a Philippine mining company in completing drilling tasks under complex geological conditions. This article systematically introduces the successful application of the YG drilling rig in the Philippines, providing valuable insights for mining companies seeking a reliable core drill rig for sale. Feel free to contact our professional team anytime!【WhatsApp/WeChat/Phone】+86 13837122632

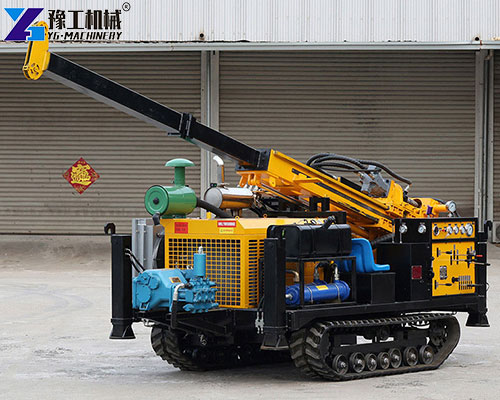

Hot-Selling Core Drill Rig for Sale Parameters
| Parameter Category | YG-400 | YG-600 | YG-800 | YG-1000 |
| Drilling Capacity | Diameter: HTW-NTW-BTW; Depth: 180-400-500 (M) | Diameter: HTW-NTW-BTW; Depth: 200-600-650 (M) | Diameter: HTW-NTW-BTW; Depth: 400-800-1000 (M) | Diameter: HTW-NTW-BTW; Depth: 500-1000-1100 (M) |
| Hydraulic System | Rated Pressure: 21 (MPA); Rated Flow: 168 (L/min); Cooling: Air + Water | Rated Pressure: 21 (MPA); Rated Flow: 192 (L/min); Cooling: Air + Water | Rated Pressure: 25 (MPA); Rated Flow: 260 (L/min); Cooling: Air + Water | Rated Pressure: 28 (MPA); Rated Flow: 300 (L/min); Cooling: Air + Water |
| Engine | Brand: Yuchai; Type: Turbocharged; Rated Speed: 2400 (RPM); Power: 78 (KW) | Brand: Yuchai; Type: Turbocharged; Rated Speed: 2400 (RPM); Power: 92 (KW) | Brand: Yuchai; Type: Turbocharged; Rated Speed: 2400 (RPM); Power: 92 Six-cylinder (KW) | Brand: Cummins; Type: Turbocharged; Rated Speed: 2400 (RPM); Power: 154 Six-cylinder (KW) |
| Power Head | Max Torque: 300-500 (N.M); Max Speed: 1300 (RPM); Feed Stroke: 1900 (MM) | Torque: 450-1000 (N.M); Speed: 1300 (RPM); Feed Stroke: 1900 (MM) | Torque: 950-1300 (N.M); Speed: 1300 (RPM); Feed Stroke: 2400 (MM) | Torque: 1000-3500 (N.M); Speed: 1300 (RPM); Feed Stroke: 3500 (MM) |
| Mast | Type: Ground-contact Integrated Tower; Drilling Angle: 0-90 (°); Lifting Force: 12 (T); Feeding Force: 6 (T) | Type: Ground-contact Integrated Tower; Drilling Angle: 45-90 (°); Lifting Force: 16 (T); Feeding Force: 8 (T) | Type: Ground-contact Integrated Tower; Drilling Angle: 45-90 (°); Lifting Force: 24 (T); Feeding Force: 12 (T) | Type: Ground-contact Integrated Tower; Drilling Angle: 45-90 (°); Lifting Force: 30 (T); Feeding Force: 15 (T) |
| Hoist | Lifting Force: 500 (KG); Speed: 100-240 (RPM); Wire Rope Dia: 6 (MM); Capacity: 500 (M) | Lifting Force: 600 (KG); Speed: 100-300 (RPM); Wire Rope Dia: 6 (MM); Capacity: 600 (M) | Lifting Force: 600 (KG); Speed: 100-300 (RPM); Wire Rope Dia: 6 (MM); Capacity: 800 (M) | Lifting Force: 1000 (KG); Speed: 100-300 (RPM); Wire Rope Dia: 6 (MM); Capacity: 1000 (M) |
| Travel | Type: Manual + Remote Control; Speed: 2.5 (KM/H); Gradeability: 45 (°) | Type: Manual + Remote Control; Speed: 3.5 (KM/H); Gradeability: 45 (°) | Type: Manual + Remote Control; Speed: 3.5 (KM/H); Gradeability: 45 (°) | Type: Manual + Remote Control; Speed: 3.5 (KM/H); Gradeability: 45 (°) |
| Hydraulic Mud Pump | Flow: 30-90 (L/min); Pressure: 4-7 (MPA) | Flow: 30-90 (L/min); Pressure: 4-7 (MPA) | Flow: 90-180 (L/min); Pressure: 4-7 (MPA) | Flow: 90-180 (L/min); Pressure: 4-7 (MPA) |
| Transport Size | 4000×1900×1800 (MM) | 4000×2000×1800 (MM) | 5500×2100×2000 (MM) | 6000×2200×2400 (MM) |
| Weight | 4.3 (T) | N/A | 6.5 (T) | 7.5 (T) |
Needs and Challenges of the Philippine Mining Client
The project site of the Philippine customer is located in the northern mountainous area of Luzon Island, where geological structures are complex, dominated by medium-hard rock layers, and characterized by significant terrain variations and inconvenient transportation. The customer needed a borehole rig for sale capable of handling these challenges. Specific requirements included: strong climbing ability and site adaptability to cope with rugged terrain; high drilling efficiency to maintain rapid penetration in hard rock formations; excellent core quality for strict geological analysis; and high operational safety and equipment reliability as essential decision factors.

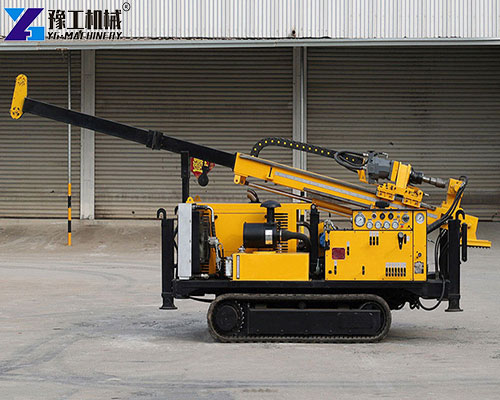

How the YG Borehole Rig for Sale Creates Value for the Client
- Excellent Terrain Adaptability and Operational Efficiency:
The YG drilling rig adopts an integrated mast structure combined with a ground-contact multi-angle mast, enabling fast hole setup and relocation, significantly improving efficiency on narrow or inclined working surfaces. Its crawler chassis supports both manual and remote-control walking modes, offering speeds up to 3.5 km/h and a climbing capacity of 45°, safely and efficiently overcoming complex terrain. The telescopic mast eliminates the need for a traditional drilling tower, making transportation and installation faster and simpler. - Precise Operation and Stable Drilling Performance:
The full hydraulic transmission system provides stepless speed regulation, ensuring smooth and stable drilling while reducing vibration and impact. Operators can monitor downhole conditions in real time through hydraulic pressure readings, and the built-in pressure limiting protection further enhances safety—an essential feature when drilling in unpredictable geological formations. - Advanced Coring Technology to Ensure Exploration Quality:
The thin-wall diamond wireline coring drilling process ensures that the drill string system features stability, rigidity, and excellent straightness, effectively controlling borehole deviation. Thin-wall drill bits offer low torque resistance and fast cutting speed while producing larger-diameter, more intact cores, significantly improving recovery rates and providing high-quality samples for subsequent geological evaluation.
Practical Application and Feedback of the Borehole Rig for Sale

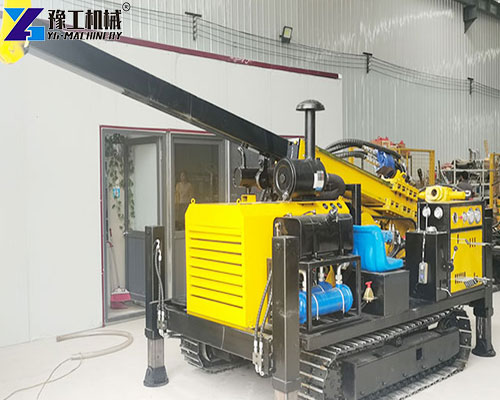

In the actual Philippine project, the YG series drilling rig demonstrated its strength as a high-performance core drilling machine for mining. According to client feedback, the equipment achieved an average daily footage increase of about 30% in hard andesite formations compared with their previous rigs. Its mobility greatly reduced the time and cost required for site leveling. Notably, its high core recovery rate provided reliable data for evaluating orebody reserves and grade. Additionally, local technicians became proficient operators after brief training, reflecting the user-friendly ergonomic design of the YG rig.
Why Choose YG Machinery
- Factory-direct Advantage Ensures Best Cost Performance

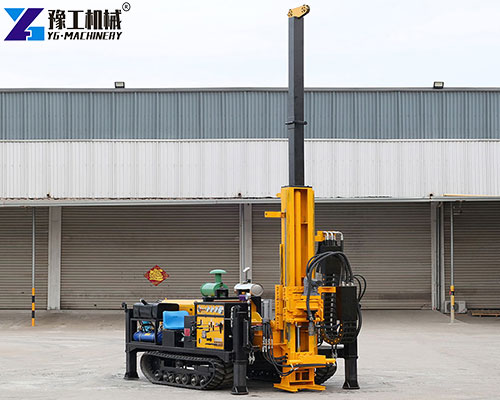

As a direct manufacturer, YG Machinery eliminates middleman markups. When evaluating borehole drilling rig price, customers can obtain higher-quality configurations within the same budget. This factory-to-client supply chain not only ensures competitive pricing but also guarantees strict quality control from components to final assembly. - Comprehensive After-sales Support with 24/7 Assistance
YG Machinery provides a complete after-sales service system, assigning a dedicated technical support team to every core drilling machine for mining sold. Whether it’s operational guidance or on-site troubleshooting, the 24-hour online support ensures continuous and stable project operation, significantly reducing downtime losses for customers. - Strict Quality Control for Long-term Reliability
Every drilling rig produced by YG undergoes strict quality inspections. From hydraulic component selection to full-machine performance testing, each stage is thoroughly evaluated. This commitment to quality ensures that YG’s borehole rig for sale maintains stable performance even under the demanding working conditions found in the Philippines, providing a solid foundation for successful project execution.

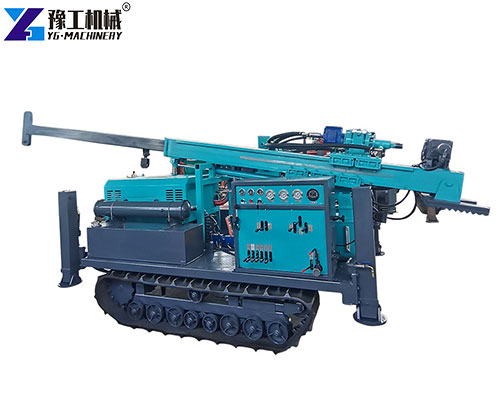

The successful application of the YG full hydraulic borehole rig for sale in the challenging mining environments of the Philippines fully demonstrates its comprehensive strength as a top-tier drilling solution. From exceptional terrain adaptability to advanced coring technology, YG rigs meet the strict requirements of modern mineral exploration. For companies in the Philippines and worldwide seeking efficient and reliable core drilling machine for mining solutions, the YG full hydraulic series is an excellent choice that will deliver significant value to your exploration projects. Contact us to get your exclusive quotation!【WhatsApp/WeChat/Phone】+86 13837122632
