In the rolling hills of San Cristóbal Province, Dominican Republic, a coffee plantation was facing a serious irrigation challenge. The uneven terrain made it impossible for large drilling equipment to operate, and securing a reliable water source had become urgent. Eventually, they introduced a YG-HY200 portable well drill, which successfully solved the problem. Thanks to its crawler chassis, this flexible machine tackled steep slopes with ease and drilled multiple deep wells efficiently in mixed geological layers, achieving an average drilling progress of 25 meters per day—bringing “timely rain” to the crops.【WhatsApp/WeChat/Phone】+86 13837122632

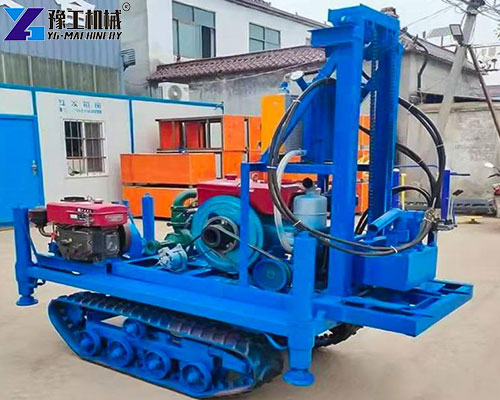

Portable Drilling Rig for Water Well Parameters
| Model | YG-HY200 |
| Engine | Diesel |
| Drilling Power | 22HP |
| Walking power | 8HP |
| Max drill depth | 150m |
| Drill diameter | Φ75-Φ300mm |
| Electric start | include |
| Radiator | include |
| Lifting power | 800KG |
| Lifting height | the highest point of 2.5 meters machine |
| Volume | 12 CBM |
| Weight | 1000kg |
Why Choose YG Portable Well Drill?
The key reasons the customer selected this portable well drilling machine include:
- Unmatched terrain adaptability: The hilly area of the Dominican Republic has extremely challenging road conditions where traditional machines struggle to move. With low ground pressure and strong off-road capability from its crawler chassis, this portable drilling rig for water well can move freely on slopes and muddy ground, reaching the jobsite without obstruction.
- Powerful and durable core engine: Confronting hard mixed formations, the 22-horsepower branded diesel engine provides a solid power foundation. The hydraulic system’s independent radiator ensures the machine maintains high efficiency even in tropical heat, preventing overheating and shutdowns.
- Optimal overall investment return: Compared with the high purchase and operating costs of large drilling rigs, and the insufficient capacity of ultra-small machines, this small water well drilling rig strikes the perfect balance between price, performance, and portability—making it an ideal choice for small to medium-sized farms.

Portable Well Drill Practical Application
During operations in San Cristóbal, the advantages of the portable well drill were fully demonstrated:
- Efficient drilling in complex formations: For clay–gravel layers, the high-power hydraulic motor driving the power head enabled fast forward-reverse rotation, effectively preventing and resolving drilling-jam issues and ensuring continuous drilling.
- Easy operation with reduced manpower dependence: The electric start system makes starting the machine effortless. Its hydraulic controls are intuitive and responsive, greatly reducing physical workload and skill requirements so even non-professional operators can learn quickly.
- High-efficiency work cycle: With a lifting capacity of up to 800 kg and an optimized lifting height, the time needed for adding or removing drill pipes is significantly shortened. This directly contributes to the impressive 25 meters of daily drilling progress, meeting the farm’s urgent water-supply needs.

Portable Well Drill Customer Feedback
After the project was completed, the plantation manager shared clear and insightful feedback:
- Solving core challenges: “It accurately solved our two biggest problems: getting the equipment up the hills and drilling through hard rock to reach water. This portable well drilling machine accomplished both.”
- Value beyond expectations: “Now we can drill wells wherever the crops need them, without being limited by terrain or distance from water sources.” This is the deeper value delivered by an excellent small water well drilling rig.

Contact Us
If you’re facing challenges such as decentralized water supply or difficult terrain, this field-proven crawler-type portable well drill will be your reliable partner. We provide:
- Professional pre-sales consultation: We recommend the most suitable model based on your geological conditions and project requirements.
- Comprehensive technical training and support: Ensuring your team can operate the machine safely and efficiently.
- Fast spare-parts supply and after-sales service: Keeping your project running smoothly at all times.
Feel free to contact us anytime to get detailed information and start your water-source development project.【WhatsApp/WeChat/Phone】+86 13837122632
