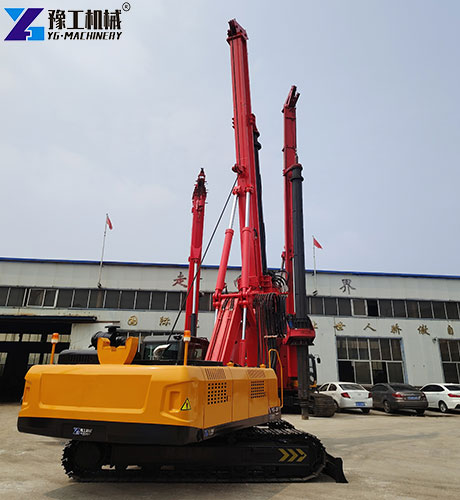

At the construction site of an industrial park in central Mexico, a brand-new rotary drilling rig is performing drilling operations smoothly, with drill pipes lowering accurately and dregs being discharged efficiently in a coherent and seamless sequence. This is the rotary drilling rig our company recently delivered to a local client, and it is also the core equipment introduced by the client to improve foundation construction efficiency and ensure project quality.【WhatsApp/WeChat/Phone】+86 13837122632
Rotary Drilling Rig Machine Parameters
| Item | Unit | Data | |
| Max. Drilling Diameter | mm | 1800 | |
| Max. Drilling Depth | m | 30 | |
| Engine | Model | / | Cummins, GBT5.9-C210 |
| Rated Power | kW | 154KW, 2200r/min | |
| Rotary Head | Max. output torque | kN .m | 100 |
| Rotary speed | r/min | 17-40 | |
| Oil Cylinder | Max.pull-down piston push | kN | 110 |
| Max.pull-down piston pull | kN | 100 | |
| Max.pull-down piston stroke | mm | 2000 | |
| Main Winch | Max.pulling force | kN | 100 |
| Max. single-rope speed | m/min | 70 | |
| Diameter of the steel wire rope | mm | 28 | |
| Auxiliary Winch | Max.pulling force | kN | 60 |
| Max. single-rope speed | m/min | 54 | |
| Diameter of the steel wire rope | mm | 16 | |
| Traveling | Max. traveling speed | km/h | 2.6 |
| Min.ground clearance | mm | 340 | |
| Approach angle | ° | 21 | |
| Departure angle | ° | 18 | |
| Max.grade ability | % | 30 | |
| Overall Weight | t | 28 | |
| Dimension | Transportation condition (L×WH) | mm | 11000×2600×3400 |
Core Logic for Selecting a High-Efficiency Rotary Drilling Rig Machine
- Demand for geological diversity: Construction projects in Mexico often encounter complex strata ranging from soft soil to hard rock, imposing high requirements on the versatility of equipment.

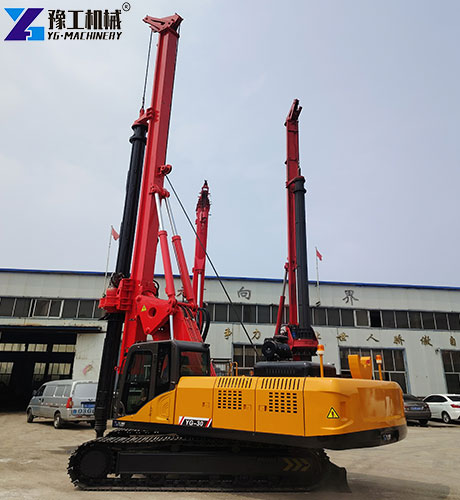

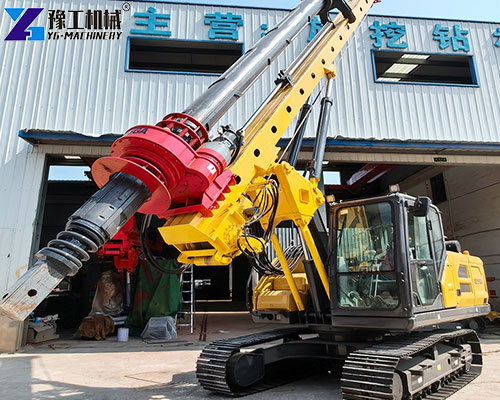

- Technical advantages of the power head: The power head of the YG-30 hydraulic rotary rig features dual modes of “high speed with low torque” and “low speed with high torque”, which can intelligently match stratum hardness and ensure high-efficiency drilling speed and hole-forming quality under various working conditions.
- Fit of the solution: The strong adaptability of the equipment directly meets the client’s core demand of addressing local variable geological conditions and pursuing a multi-purpose machine.
Excellent Performance Guarantee of Rotary Drilling Rig Machine

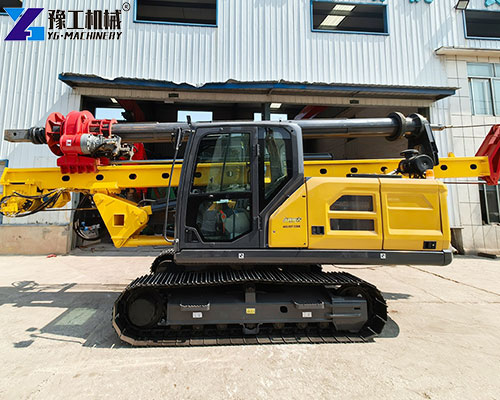

Advanced system architecture: As an advanced hydraulic rotary drilling rig, the fully hydraulic system of the equipment provides a solid foundation for power output.
- Outstanding performance: The hydraulic system ensures that the power head can output a stable torque of up to 100 kN·m and drive the main winch to achieve rapid lowering at 70 m/min, significantly improving the operation cycle efficiency.
- Reliability guarantee: The overall design of the hydraulic rotary rig ensures long-term continuous and stable operation of the equipment at overseas construction sites with its excellent reliability and power transmission efficiency.
Structural Design Innovation with Equal Emphasis on Safety and Efficiency
- Winch pressure-feeding system: The long-stroke and high-pressure winch pressure-feeding system is adopted, which specially meets the construction requirements of special construction methods such as casing running, expanding the application scope of the equipment.
- Active safety technology: Equipped with safety control technology based on real-time detection of the main winch lifting force, it can effectively warn and prevent overload operation, greatly improving the construction safety of the rotary drilling rig machine.
- Structural stability: The large triangle or parallelogram luffing mechanism provides stronger support and better luffing movement for the drill mast, ensuring the overall stability and positioning accuracy during drilling.

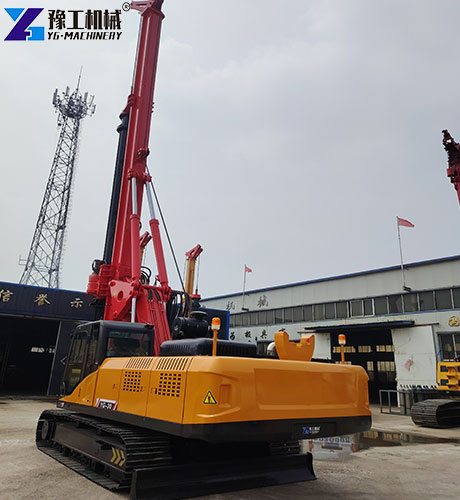

Achieving the Optimal Balance Between Rotary Drilling Machine Price and Value
- Client’s core concern: At the initial stage of the project, rotary drilling machine price was one of the important factors for the client’s decision-making.
- Value-oriented solution: Instead of providing a single equipment quotation, we formulated a one-stop solution covering international logistics and training, reducing the client’s hidden costs and operational threshold.
- Cost-effective choice: While providing strong performance and high reliability, the comprehensive purchase and use cost of the YG-30 model is more advantageous than that of international first-tier brands, enabling the client to obtain a high-value hydraulic rotary drilling rig with a reasonable investment.
Full-cycle Service Support from Delivery to Commissioning
- On-site support in place: A professional team of engineers was dispatched to the construction site in Mexico to be responsible for the final assembly, fine debugging and performance verification of the equipment.
- Thorough knowledge transfer: Systematic training was provided to the client’s operation and maintenance personnel to ensure that they fully master the equipment operation skills and daily maintenance specifications.
- Establishing long-term trust: This in-depth service ensures that the rotary drilling rig machine can be put into high-efficiency production immediately and transforms one-time sales into a long-term partnership.
Start Cooperation
- Professional consulting channel: If you are looking for a reliable hydraulic rotary drilling rig solution for projects in Mexico or other Latin American regions, please feel free to contact us through our official website or global service hotline at any time.
- Customized solution provision: Our technical team can provide professional suggestions including equipment selection and rotary drilling machine price analysis according to your specific working conditions and budget.
- Worry-free after-sales commitment: We promise to provide comprehensive guarantee for each exported equipment, covering technical training, spare parts supply and remote support, to ensure that your rotary drilling rig machine always operates efficiently.【WhatsApp/WeChat/Phone】+86 13837122632
