With high-pressure pumping and atomization spraying technology, the cement mortar spraying machine not only greatly speeds up construction but also ensures a uniform and dense coating, saving materials.【WhatsApp/WeChat/Phone】+86 13837122632

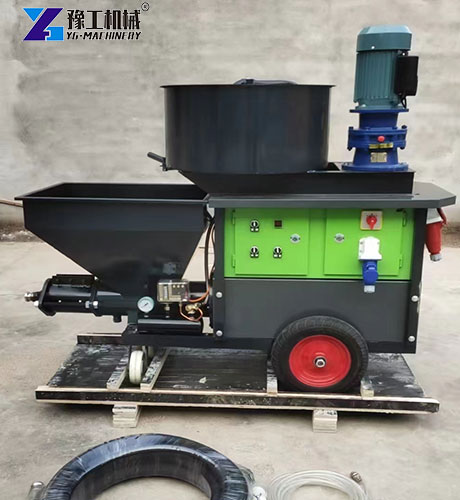

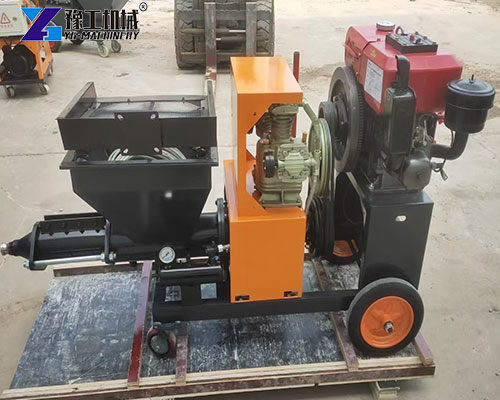

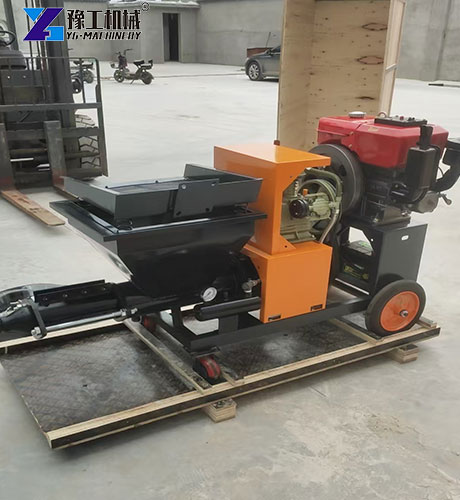

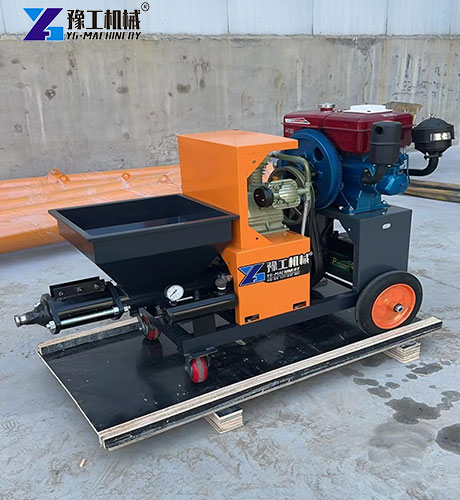

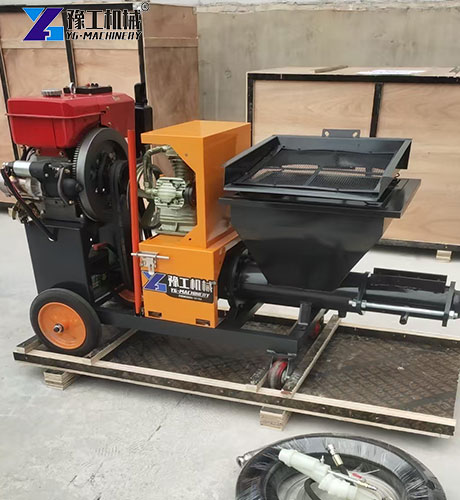

YG Cement Plaster Spray Machine Parameters
| Type | Electric | Diesel |
| Output | 3m³/h | 4m³/h |
| Power | 220v-380v/7.5kw | Diesel |
| Pressure | 3Mpa | 3Mpa |
| Conveying tube | 32mm | 32mm |
| Max. Aggregate size | ≤8mm | ≤8mm |
| Hopper volume | 80L | 80L |
| Air consumption | 0.3m³/min | 0.3m³/min |
| Weight | 320kg | 320kg |
| Applicable material proportion | 1:1:3 | |
| Conveying distance | Horizontal:50m Vertical:30m | Horizontal:50m Vertical:30m |
How Much Manual Labor Can a Cement Mortar Spraying Machine Replace in a Day?
This is probably the top concern for construction parties, and the answer is striking. A high-quality mortar sprayer machine can work 8 to 10 times faster than manual labor.
- Continuous operation: The machine can feed and spray materials non-stop, eliminating the downtime of manual mixing and handling.
- Ultra-high coverage: Take the YG model as an example, a standard three-person team (one operating the spray gun, two assisting with feeding and leveling) can easily finish 150 square meters of spraying (2 cm in thickness) per hour.
- Consistent quality: Mechanical spraying applies even force, leading to strong coating adhesion, which effectively avoids hollowing and peeling, the common problems of manual plastering.
- Comprehensively calculated, one machine’s daily workload far exceeds that of 20 skilled plasterers. For projects with tight schedules, its value in saving labor costs and shortening the construction period is irreplaceable.
Can a Cement Mortar Spraying Machine Be Used for Interior Wall Spraying?
Absolutely.
- Flexible and efficient: The cement plaster spray machine is compact in size, easy to move between indoor floors. The spray gun and feeding pipe are connected with a rotatable joint, allowing operators to adjust the angle easily to handle complex parts such as wall corners and ceilings.
- Wall flatness: The mortar sprayed on the wall has a long initial setting time, giving workers ample time for troweling and finishing, making it easier to achieve a highly flat wall and lay a solid foundation for subsequent decoration.
- Reduced labor intensity: It frees workers from the heavy and repetitive plastering work; their main tasks are converted to controlling the spray gun and troweling the wall, greatly improving the working environment.
Can Special Mortar Be Applied with a Cement Mortar Spraying Machine?
A fully functional spraying machine is by no means limited to ordinary mortar. It is perfectly suitable for a variety of special materials:
- Wide adaptability: Designed exclusively for water-soluble materials, it can spray waterproof mortar, thermal insulation mortar, fireproof coatings and many other materials.
- Performance guarantee: High-pressure spraying makes materials form a mechanical interlock with the base layer, resulting in a denser coating. This is crucial for special functions such as waterproofing and crack resistance, better ensuring the realization of design requirements.
- Wide application: Therefore, it is not only a tool for wall plastering, but also an indispensable equipment in professional projects such as bridge grouting, basement seepage prevention and tunnel support.
Cleaning Steps for the Mortar Sprayer Machine After Construction
Be sure to operate in the following steps before the sprayed materials dry out:
- Suction back and clean: Spray out the remaining materials in the hopper, then suck in clean water and discharge it through the spray gun to initially clean the pipeline.
- Deep cleaning: Open the hopper and rinse the inside and mixing blades thoroughly with clean water until there is no residue left.
- Pump flushing: Let the equipment run with clean water for a few more minutes to ensure the inside of the pump and all valve bodies are flushed clean.
- Disassembly and inspection: Regularly disassemble easily clogged parts such as the spray gun and joints for thorough cleaning. The machine’s design ensures easy maintenance, making daily upkeep extremely convenient.
If you want to learn more about how to select the right cement mortar spraying machine for your project, or know the specific spray plaster machine price, please feel free to contact us. Our professional team will provide you with detailed technical support and the most cost-effective solutions to help your project efficiency leap forward.【WhatsApp/WeChat/Phone】+86 13837122632
