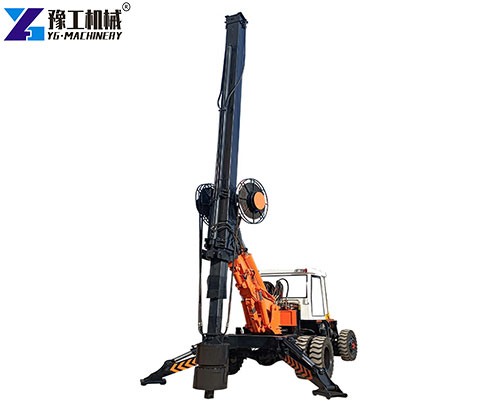

The hydraulic rotary rig integrates high-efficiency drilling and rapid relocation, especially represented by the combination of a wheeled chassis and an advanced hydraulic system. It provides a highly cost-effective solution for various pile foundation construction projects. Today, we will take the YG-180 model as an example to deeply analyze the charm of this type of equipment.【WhatsApp/WeChat/Phone】+86 13837122632
Parameters
| Item | Value |
| Product model | YG-180 |
| Engine model | Weichai 4108 |
| Engine power | 88KW |
| Max. Drilling Depth | 16m |
| Max. Drilling Diameter | 1500mm |
| Max. Rotary torque | 46KN.m |
| Max. Pulling force | 15 tons |
| Rotary angle | 180° |
| Rotary speed | 20-46r/min |
| Max. Oil flow | 120ml/r |
| Working pressure | 25MPa |
| Front wheels distance | 1840mm |
| Rear wheels distance | 1800mm |
| Machine size(L x W x H) | 10×2.3×3.2 m |
| Weight | 11 tons |

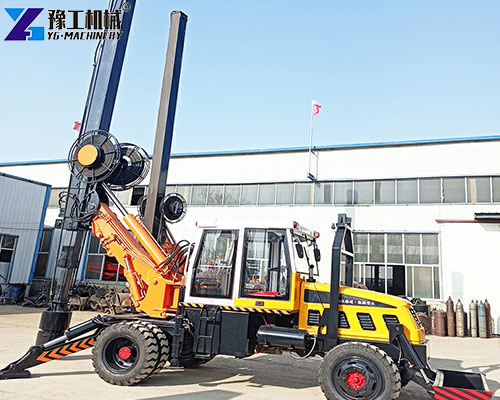

Outstanding Mobility of Wheeled Hydraulic Rotary Rig
Advantages of the hydraulic rotary rig with a dedicated wheeled chassis:
- Rapid relocation to improve efficiency: The four-wheel drive system enables it to move quickly between construction sites and even on highways, greatly reducing equipment deployment time and costs, and it is particularly suitable for multi-point and scattered engineering projects.
- More favorable investment threshold: Generally speaking, a wheeled hydraulic rotary drilling rig with equivalent performance has a more competitive price and relatively simple maintenance, realizing an entrepreneurial model of “small investment and quick returns”. It is an ideal choice for many individual operators and small construction teams.
- Strong site adaptability: It causes little damage to the ground of the construction site, and has greater advantages when working on hardened roads or sites requiring environmental protection.

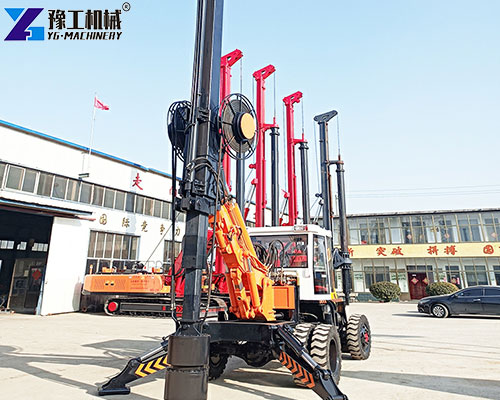

Technical Charm of the High-Efficiency Hydraulic Rotary Rig System
As the “heart” of the entire equipment, the hydraulic power head directly determines the drilling performance:
- High torque and high work efficiency: For example, the 46KN.m high torque provided by the YG-180 can effectively cope with various soil layers. The hydraulic system drive ensures stable output and strong power of the power head, significantly improving hole-forming speed.
- Multi-speed regulation for wide adaptability: The hydraulic rotary drilling rig with stepless speed regulation in the range of 20-46r/min can select the “high-speed and low-torque” or “low-speed and high-torque” mode according to different formations (such as soft soil or hard soil), achieving optimal drilling efficiency and demonstrating excellent formation adaptability.
- Stable operation, environmental protection and low noise: Compared with mechanical transmission, hydraulic transmission generates less noise and vibration, which not only improves the operating environment, but also reduces noise interference to the surrounding areas.
Humanized Design: Enhancing the Operating Experience of the Hydraulic Rotary Drilling Rig
The comfort of long-time operation directly affects the operator’s work efficiency and construction safety. Modern rotary piling machine deeply applies ergonomics:
- Spacious cab layout provides more legroom and movement space, and combined with the optimized steering wheel size, it significantly reduces the operator’s fatigue strength.
- Panoramic view design minimizes visual blind spots, making drilling alignment and monitoring of operation status safer and more intuitive, and improving the accuracy and safety of overall construction.
Key Parameters Defining a Rotary Piling Machine
Understanding the meaning behind the parameters can help us better select and use the equipment:

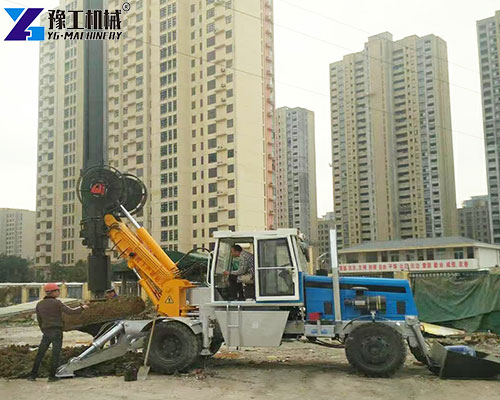

- Drilling capacity: The parameters of maximum 16-meter depth and 1.5-meter diameter cover the pile foundation needs of most civil construction foundations, fence guardrails, small bridges, etc.
- Power and efficiency: The 88KW Weichai engine provides a reliable power source, while the main winch lifting speed of up to 70m/min greatly shortens the non-drilling time of each drilling cycle, directly improving the shift output.
- Flexibility and stability: The 11-ton overall weight combined with the wheeled chassis ensures sufficient working stability while taking into account the convenience of transportation and relocation.
The wheeled hydraulic rotary rig represented by the YG-180, by integrating excellent mobility, an efficient hydraulic drilling system and humanized design, has successfully created a new dimension of efficient and flexible foundation construction. It is not only a tool to complete drilling tasks, but also a wealth-creating partner that creates value for users. Choosing a suitable hydraulic rotary drilling rig means choosing stronger project adaptability, faster investment returns and higher construction competitiveness. Contact us to get the latest rotary drilling machine price!【WhatsApp/WeChat/Phone】+86 13837122632
