Still troubled by well-drilling problems? Say goodbye to the high costs and complex scheduling of bulky equipment! A flexible and powerful small water boring machine is the key to your water independence and income-generating opportunities. Whether it’s an irrigation well in a farmyard or an emergency water source at a construction site, a modern portable borewell machine can make well-drilling easier and more efficient than ever before.【WhatsApp/WeChat/Phone】+86 13837122632
Portable Drill Rig for Sale Specifications
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
4 Advantages of Small Water Boring Machine
Choosing a modern small water boring machine means you will enjoy multiple conveniences that traditional methods can hardly match:

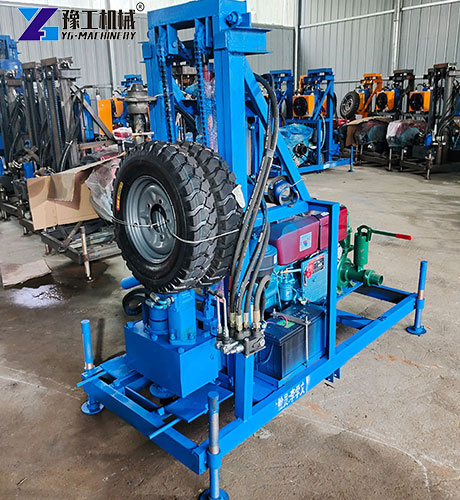

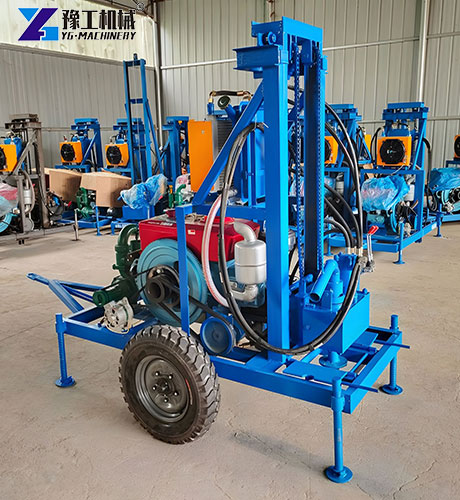

- Ultimate portability and flexibility: The equipment features a compact structure and light weight. Wheeled models, for example, can be easily towed by small vehicles and can even operate in courtyards or indoors, greatly expanding the construction scope.
- Efficient and labor-saving operation: Equipped with an electric-start diesel engine and hydraulic system, it starts quickly and delivers strong power, significantly reducing the labor intensity of operators.
- Strong site adaptability: It can handle both soft and hard soil layers by changing drilling tools. The standard-configured mud pump effectively removes slag and sand, ensuring well-drilling efficiency.
- Multi-functional and widely applicable: It is not only suitable for drilling drinking water wells and irrigation wells, but also for geothermal heat pump holes, construction dewatering wells and small foundation pile construction, boasting a high return on investment.

Structure and Working Principle of Small Water Boring Machine
The high efficiency of a typical portable borewell drilling machine stems from its sophisticated engineering design and reliable working principle:

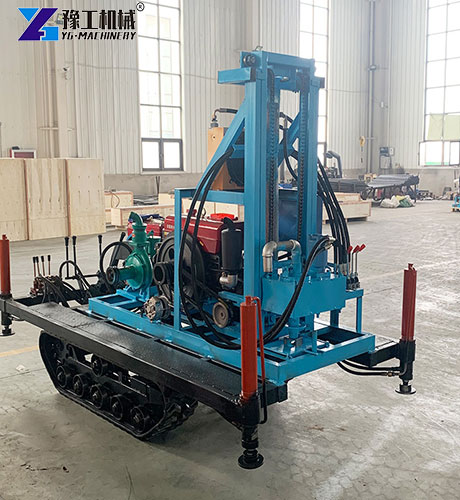

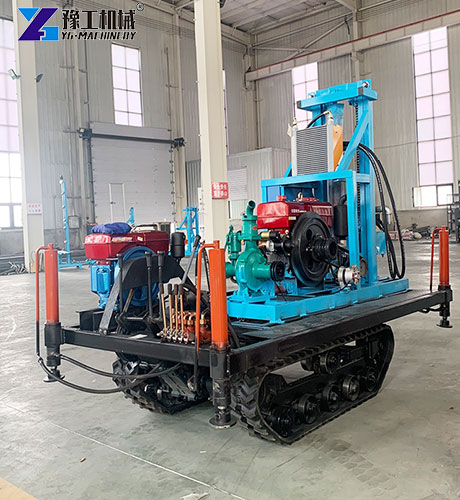

- Power and traveling system: With a diesel engine as the core power source, it transmits huge torque through the hydraulic system. Crawler-type models have strong off-road capability, while wheeled models are more convenient to move.
- Drilling and hoisting system: The hydraulic motor drives the drill pipe to rotate at high speed. Cooperating with adjustable feeding and hoisting devices (with a lifting capacity of up to 800kg), it achieves a stable and controllable drilling process.
- Circulating slag removal system: The built-in or external mud pump is the key component. It pumps water or mud into the bottom of the hole through hollow drill pipes, and the drilling cuttings are carried back to the ground through the gap between the hole walls, keeping the borehole clean.

Standard Operating Procedures for the Small Water Boring Machine
To ensure the efficient and safe use of your portable borewell machine, please follow these core steps:
- On-site survey and positioning: Confirm the location of underground pipelines, select a solid and flat site, and firmly set up the drilling rig.
- Equipment connection and commissioning: Connect the water source and mud pump, check the hydraulic system, and run the equipment without load to ensure all components work properly.
- Hole opening and drilling: Use a short drill pipe to open the hole while maintaining verticality. Then connect extended drill pipes for continuous drilling, and judge the stratum by observing the slag return in real time.
- Pipe lowering and well completion: After reaching the predetermined depth, clean the hole and immediately lower the well casing. Finally, perform well completion operations such as gravel packing and well flushing.

Cost-Benefit Analysis of Portable Borewell Machine
Investing in a portable drill rig for sale is a wise financial decision, and its economic benefits are reflected in multiple aspects:
- Direct cost savings: No need to pay high entry fees for large equipment and labor costs. Owning the equipment allows you to start construction at any time and control the project progress.
- Improved operational efficiency: The fast deployment capability and high drilling speed shorten the project cycle, enabling you to undertake more businesses.
- Long-term investment value: The equipment is durable with relatively low maintenance costs. After completing your own projects, you can also provide drilling services to external parties to generate continuous income.
- Solving fundamental needs: For agricultural users or those in remote areas, a one-time investment can provide an independent water source, saving long-term water purchase costs and ensuring production and living needs.
