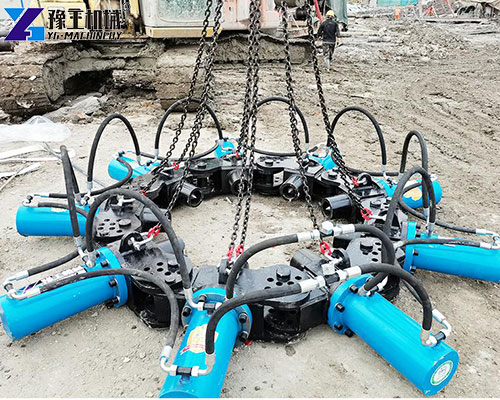

Faced with the predicament of traditional manual pile breaking, such as low efficiency, high cost and potential safety risks, an innovative solution – Hydraulic Pile Breaker – has emerged as the times require and quickly become a standard configuration in modern construction. Relying on its advanced design of static pressure breaking and modular combination, the YG series hydraulic pile cutter is leading the development of pile head processing technology towards a more efficient, more environmentally friendly and more economical direction.【WhatsApp/WeChat/Phone】+86 13837122632

Hydraulic Pile Cutter Parameters

Module Number	PCS	4	8	9	10	11	12	13	14	15	16	17	18
Combination of the total weight	KG	1600	2640	2970	3300	3630	3960	4290	4620	4950	5280	5610	5940
Pile diameter range	mm	400-600	600-800	800-1000	1000-1150	1150-1300	1300-1500	1500-1650	1650-1800	1800-1970	1970-2200	2200-2360	2360-2500
Hydraulic excavator	T	20T-30T			30T-40T				Hydraulic system/pump station
Max.Thrust		300KN		Max.Cylinder required		20L/min		Machinery Tonnage		≥20T		Location pinΦ35
Max.Cylinder Trip		300mm		Chisel diameter		110mm		Single module weight		335KG
Max.Cylinder Pressure		300MPa		Max.Hoist Capacity		≤500mm		Single module size		1015*865*340mm

Why Hydraulic Pile Breaker is an Inevitable Choice

When evaluating the hydraulic pile breaker price, we should not only focus on the equipment itself, but also compare the improvement of comprehensive benefits it brings. Compared with the traditional manual pile breaking with pneumatic pick, the YG hydraulic pile breaker has all-round advantages:

• Revolutionary improvement in efficiency: It usually takes a whole day for traditional manual chiseling to break one pile head, while the hydraulic pile breaker adopts multi-cylinder synchronous static pressure operation, and the whole process only takes several minutes to more than ten minutes. The efficiency is improved by more than 10 times, which is especially suitable for projects with dense pile groups.

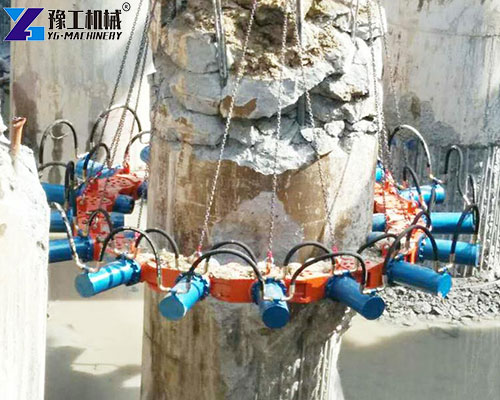

• Fundamental guarantee of construction quality: Driven by hydraulic cylinders, the equipment applies uniform radial static pressure to the pile body, making the concrete break from the inside. This method can produce a flat broken section, without damaging the steel bars inside the pile body, and there is no risk of cracks extending to the effective pile body, thus ensuring the bearing integrity of the pile foundation.

• Significant reduction in comprehensive cost: Although there is a one-time investment in the equipment, it greatly reduces the labor demand, shortens the construction period, and almost eliminates the rework or reinforcement costs caused by the poor quality of pile breaking. From the perspective of the whole project cycle, its “low-cost” advantage is extremely prominent.

• Comprehensive upgrade in safety and environmental protection: Operators can remotely control the equipment in the cab to achieve the separation of man and machine, thus ensuring personal safety. At the same time, the static pressure operation method produces extremely low noise and no dust, which fully meets the strict requirements of modern construction sites for environmental protection.

Outstanding Performance of YG Hydraulic Pile Breaker

The YG equipment can achieve the above advantages due to its in-depth precision engineering design, which is mainly reflected in the following aspects:

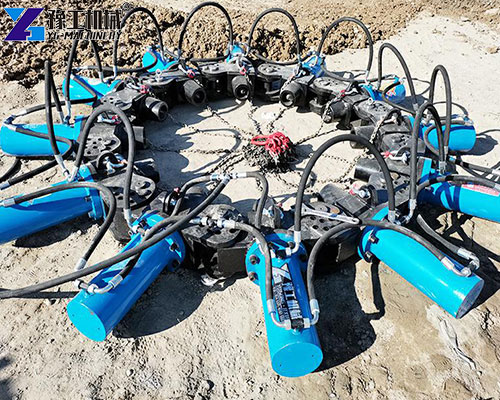

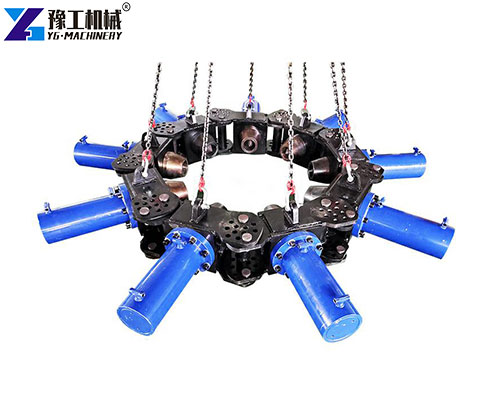

• High modularization, multi-purpose with one machine: This is the core feature of the equipment. Each independent module includes an oil cylinder and a drill rod, which are connected by pins like “building blocks”. By increasing or decreasing modules, it can not only adapt to circular piles of different diameters, but also handle square piles after replacing some components, truly realizing the ultimate versatility of dual-purpose with one machine.

• Diverse power sources, flexible adaptation: The equipment has strong versatility. It can directly draw power from 20-40 ton excavators to realize integrated operation of movement and power. In sites where excavators are inconvenient to enter, an independent hydraulic pump station can also be used to provide power, and a crane or loader can provide lifting force, so as to adapt to various complex working conditions.

• Durable and easy to maintain: The main structure is made of high-strength steel, and the key components are optimized in design, which ensures the long service life of the equipment under high-pressure and high-frequency operation. The modular design also makes local maintenance or replacement extremely simple, minimizing the downtime.

Application Scenarios

The application of YG Pile Head Breaking Machine has gone far beyond ordinary construction sites:

• Large-scale infrastructure field: In the construction of pier pile foundations for high-speed railways, expressways and cross-sea bridges, it deals with a large number of large-diameter cast-in-place piles, and its high efficiency and flatness meet the high standards and requirements.

• Urbanization construction: It is used for breaking the deep foundation pit support piles and engineering piles of commercial complexes and high-rise residential buildings in the city center. Its characteristics of low noise and low vibration reduce the interference to the surrounding environment.

Contact Us

If you want to have an in-depth understanding of how the YG hydraulic pile breaker can be specifically adapted to your project needs, or want to obtain a targeted product plan and competitive hydraulic pile breaker price, our professional team is ready to serve you at any time. We will provide full-cycle services from technical selection, working condition adaptation to after-sales support.

Welcome to contact us at any time:

We look forward to communicating with you, providing you with detailed product information, technical parameters and professional purchasing suggestions, and helping you make the most valuable investment decision. Let the advanced pile head breaking machine technology of YG become a solid and reliable efficiency cornerstone for your engineering projects.【WhatsApp/WeChat/Phone】+86 13837122632
