The mini skid steer with cab, available in both wheeled and tracked versions, is the ideal solution for overcoming challenges in modern construction and confined-space operations. It not only ensures operator safety and comfort but also, with its compact structure and excellent maneuverability, performs effortlessly in urban construction sites and factory workshops. Whether it’s the wheeled mini skid steer with flexible mobility on paved surfaces, or the mini track skid steer offering stable performance on rough terrains, this machine provides the best working solution for diverse operating conditions. Contact us anytime to learn more about this product!【WhatsApp/WeChat/Phone】+86 13837122632
Mini Skid Steer with Cab Parameters
| Model | W45 | W65 | T50 | T65 |
| Operating load (kg) | 700 | 1050 | 700 | 1000 |
| Max Speed（km/h） | 10 | 10 | 10 | 12 |
| Rated flux (L/min) | 80 | 89 | 80 | 89 |
| Rated power (Kw) | 36.7KW | 55KW | 45KW | 55KW |
| Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
| self weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
| Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
| Hheight to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2909 | 2862 | 2500 | 2790 |
| Without bucket length（mm） | 2325 | 2527 | 2170 | 2450 |
| Overall length with bucket(mm) | 3276 | 3428 | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 37.5 | 32 | 40 | 40 |
| Dumping height(mm) | 2342 | 2410 | 1990 | 2270 |
| Dumping reach(mm) | 550 | 850 | 1040 | 1120 |
| Rollback o bucket on ground(° ) | 20.5 | 23 | 30 | 30 |
| Rollback of bucket at full height(° ) | 96.5 | 95 | 100 | 100 |
| Wheelbase(mm) | 991 | 1074 | 1230 | 1500 |
| Ground clearance(mm) | 185 | 205 | 230 | 200 |
| Angle of departure(° ) | 20 | 20 | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1188 | 1320.5 | 1064 | 1230 |
| Front tuning radius(mm) | 2030 | 2095 | 1825 | 2010 |
| Rear tuning radius(mm) | 1630 | 1680 | 1264 | 1720 |
| Rear axle to bumper (mm) | 929 | 1057 | 590 | 730 |
| Tread width (mm) | 1462.5 | 1498 | 1022 | 1482 |
| Width (mm) | 1726.5 | 1805 | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 | 1727 | 1828 |
Advantages of Mini Skid Steer with Cab
• Outstanding Maneuverability
Taking the W45 model as an example, its turning radius without a bucket is only 1188 mm, and the overall width is 1726.5 mm. This compact design allows the machine to maneuver easily in narrow spaces. Whether it’s municipal projects in narrow city alleys or material handling inside workshops, it performs efficiently.
• Versatile Work Capabilities
The mini skid steer with cab can be equipped with more than 20 attachments—such as buckets, excavating buckets, and dozer blades—through a quick-attach system. This enables 12 types of operations, including loading, stacking, lifting, and drilling. Its powerful hydraulic system, with a flow rate of 80–89 L/min, ensures that all attachments deliver maximum performance.
• Efficient Power System
Equipped with rated power ranging from 36.7 KW to 55 KW and a hydrostatic transmission system, it ensures maximum power transmission efficiency. The T65 model can reach a maximum travel speed of 12 km/h, greatly improving working efficiency through quick on-site transfers.
• Intelligent Control Experience
An advanced electronic monitoring system displays 12 key operating parameters in real time. Operators can monitor all equipment data from inside the comfortable cab, significantly improving safety and ease of operation.
Wheeled Mini Skid Steer Vs. Mini Track Skid Steer

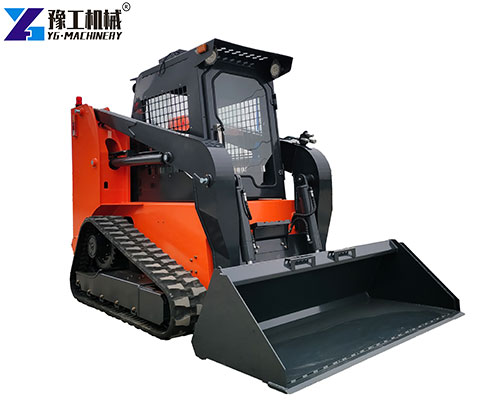

• Tracked Version – Best for Complex Terrains
The mini track skid steer is ideal for soft, muddy, or uneven ground conditions. For instance, the T50 and T65 models offer 230 mm and 200 mm ground clearance respectively. Their large contact area reduces ground pressure, providing better passability. With an operating weight of 5024 kg and a rated load of 1000 kg, the T65 maintains stable performance even in harsh environments.
Another advantage of the mini track skid steer is its ability to protect fragile surfaces, making it perfect for earthwork and landscaping projects that require low ground disturbance.

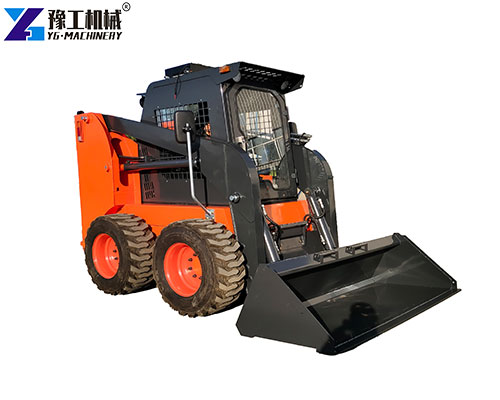

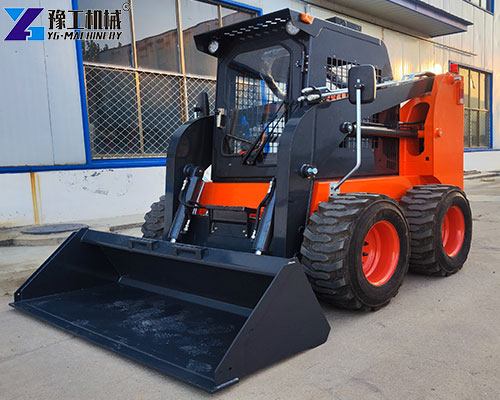

• Wheeled Version – Best for Hard Surfaces
The wheeled mini skid steer performs exceptionally well on flat and paved surfaces without damaging them. The W65 model, with a rated load of 1050 kg and a travel speed of 10 km/h, is ideal for operations inside workshops and industrial facilities. It ensures high productivity while protecting floor surfaces.
The wheeled mini skid steer also offers greater maneuverability. For instance, the W45 model has a turning radius of just 1188 mm, giving it a distinct advantage in work environments that require frequent turns.
Versatile Functions of Mini Skid Steer with Cab
The ride on mini skid steer stands out for its multifunctionality and unmatched site adaptability. With quick hydraulic attachment changes, it can switch between different working modes within minutes, replacing multiple single-function machines.
1. Replacement for Mini Excavators
- Main Application: Shallow trenching, foundation digging, and pipeline installation.
- Advantages: While it doesn’t reach the same depth as a specialized mini excavator, the ride on mini skid steer equipped with a digging bucket can handle most shallow excavation tasks. It offers better mobility, enabling quick site transfers and combining digging with material handling—reducing equipment scheduling time.
- Key Support Parameter: A powerful hydraulic system (80–89 L/min flow) ensures efficient bucket performance.
2. Replacement for Small Forklifts
- Main Application: Material stacking and pallet handling.
- Advantages: With fork attachments, the wheeled mini skid steer transforms into a flexible on-site forklift. Unlike traditional forklifts, it can operate on uneven ground thanks to its all-wheel drive and high ground clearance (up to 230 mm).
- Key Support Parameter: Its unloading height (up to 2410 mm for the W65) and rated load determine its upper performance limit in forklift use.
3. Replacement for Small Tractors or Utility Vehicles
- Main Application: Land leveling, tilling, trenching, and cleaning.
- Advantages: By equipping a dozer blade, rotary tiller, mower, or sweeper, the mini track skid steer can perform tasks traditionally requiring multiple tractor implements. Its low ground pressure makes it ideal for orchards, farms, or landscaping projects in confined areas.
- Key Support Parameter: Rated power (36.7 KW to 55 KW) provides sufficient base power for all these tasks.
Application Cases
• Singapore Urban Renewal Project
In a city renovation project in Singapore, the YG T65 model mini skid steer with cab played a vital role. With a maximum operating height of 3900 mm and a dumping reach of 1120 mm, it efficiently handled material loading and transfer in narrow streets. Its 5024 kg operating weight ensured stability, while the 2409 mm cab height provided excellent visibility for the operator.
• Saudi Agricultural Cooperative
At a large agricultural plant in Saudi Arabia, the YG W65 wheeled mini skid steer was used for feed handling and facility maintenance. Its rated load of 1050 kg and dumping height of 2410 mm enabled quick material transfers. The 75 L fuel tank allowed for long working hours, significantly improving operational efficiency.
Take Action Now!
Don’t let limited space restrict your progress! The YG ride on mini skid steer is your ultimate engineering solution — available in both wheeled and tracked configurations, like a true “all-round warrior” in your construction fleet. Conquer every challenge with ease. Contact us now to get your customized solution and make high-efficiency operation your everyday reality. For more model choices, you can also view our stand up mini skid steer.
Choose YG — choose endless possibilities!【WhatsApp/WeChat/Phone】+86 13837122632
