Breaking piles is difficult? That’s because you haven’t used the right equipment. The appearance of pile crusher machine makes pile head breaking as easy as “cutting tofu”. Hydraulically driven, quiet operation, zero damage to steel bars, and 5 times higher efficiency — this is not advertising, but a fact proven by thousands of construction sites.【WhatsApp/WeChat/Phone】+86 13837122632
Pile Breaker Machine Parameters
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
Round Vs Square Pile Crusher Machine — How to Choose?

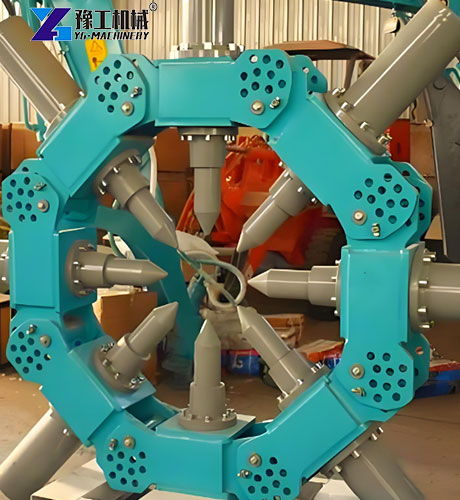

- Round pile head breaker: Suitable for cylindrical piles, such as bored piles and pipe piles. Its modules are arranged in an arc, forming circular extrusion around the pile to make the pile head break evenly. Our equipment covers pile diameters from 250mm to 2500mm, which can be flexibly adjusted by adding or removing modules. One set can handle multiple pile diameters.
- Square pile head breaker: Suitable for square piles, such as precast square piles and foundation pit support piles. Modules are arranged linearly, squeezing the pile from four directions at the same time to ensure a flat section. It fits square piles with side length 250–650mm, meeting common needs in civil and commercial construction.
To choose, just decide based on your pile type. Notably, our pile breaker machine supports interchangeable modules for round and square piles. By changing the module combination, one machine can do both round and square piles — truly “one machine with dual functions”.
Manual Pile Breaking vs. Pile Crusher Machine
- Efficiency comparison: A team of 4–5 workers using jackhammers can only break 3–5 piles per day with heavy labor. One pile crusher machine, operated by one excavator driver, can finish one pile head in just 10–25 minutes.
- Quality comparison: Manual work is hard to control and often damages main steel bars or causes cracks extending down the pile. Pile crusher machine uses synchronous extrusion from multiple cylinders, providing a clean, controlled breaking surface with perfectly intact steel bars.
- Safety comparison: Manual work exposes workers to falling objects and long-term vibration-related diseases. The pile crusher machine is operated remotely by excavator, keeping workers away from the pile head and greatly improving safety.

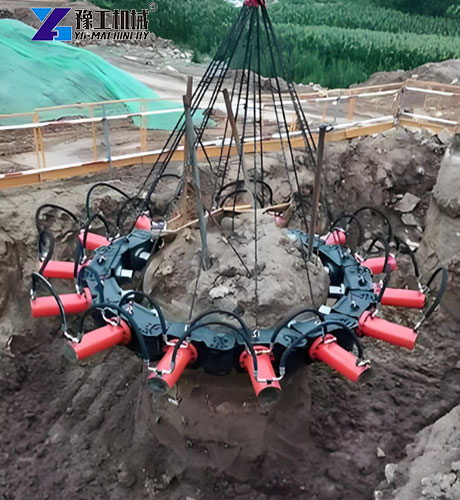

Which Fields Is Pile Crusher Machine Suitable For?
- High-speed rail & bridges: Ideal for large quantities of bridge piles with uniform diameter. Modular design adapts quickly, easily breaking dozens of piles per day to ensure construction schedules.
- Civil & commercial buildings: Efficiently breaks pile heads of precast and bored piles for residential and commercial buildings without disturbing neighbors.
- Ports & docks: Can work with excavators or cranes to break underwater or waterside piles in complex environments.
- Municipal engineering:Processes foundation pit support piles and retaining piles, accurately controlling elevation to avoid over-breaking.
- Reconstruction & expansion projects: When removing old piles, the pile head breaker breaks only the pile head precisely, preserving the lower section for reuse.
How to Choose the Right Pile Head Breaker
- Check the pile diameter range: Choose the number of modules according to the most common pile diameter on site. For variable diameters, select a model with flexible modules. Our equipment uses pin-connected modules, easy to install and remove, covering 250–2500mm.
- Check the power source: Our equipment supports multiple power solutions: Directly powered by excavator where available; Otherwise, use “hydraulic power station + crane” or “hydraulic power station + loader” for high versatility and economy.
- Check module compatibility: If you have both round and square piles, choose a universal model. Our machine uses interchangeable modules, so one set breaks both types and greatly reduces purchase cost.
- Check construction environment:For complex terrain, choose a telescopic chain design.For underwater or waterside work, confirm waterproof performance.
Concrete Pile Breaker — Cylinder & Module Maintenance
- Daily cylinder inspection: Before work, check for oil leakage, scratches on piston rods, and damaged dust seals. Replace seals immediately if leaking.
- Module connecting pins: Check daily for loose pins or missing cotter pins. Grease every 100 working hours to reduce wear.
- Chisel wear: The chisel directly contacts the pile and wears quickly. Check for broken or worn chisel tips. Replace or repair in time to avoid damaging cylinders.
- Hydraulic system maintenance: Keep hydraulic oil clean and replace filters regularly. Keep working pressure within 300MPa to avoid overpressure damage.
- Storage: If unused long-term, clean the machine, apply anti-rust oil, store modules flat, and protect piston rods from moisture.
If you are still troubled by low pile-breaking efficiency and high labor costs, learn more about YG pile breaker machine — making pile head processing simple from now on.【WhatsApp/WeChat/Phone】+86 13837122632
