In modern construction environments, how can large-scale engineering demands be integrated into limited working spaces? The answer lies in the agile and efficient skid steer front loader. It not only turns flexibly in the narrowest areas but can also quickly switch attachments, transforming instantly from a loader into an excavator, breaker, or sweeper — truly achieving “one machine for multiple purposes.” Let’s explore the outstanding performance of this powerful machine together. Feel free to contact us anytime for your exclusive front loader skid steer quotation!【WhatsApp/WeChat/Phone】+86 13837122632
Compact Skid Steer for Sale Parameters

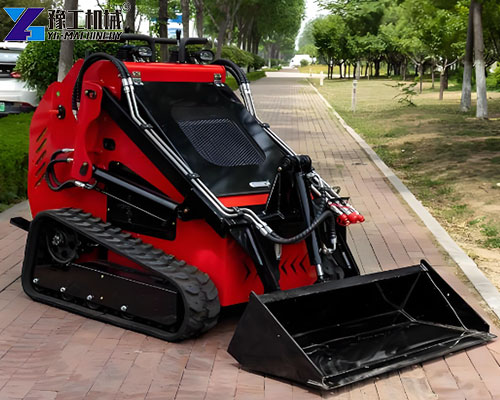

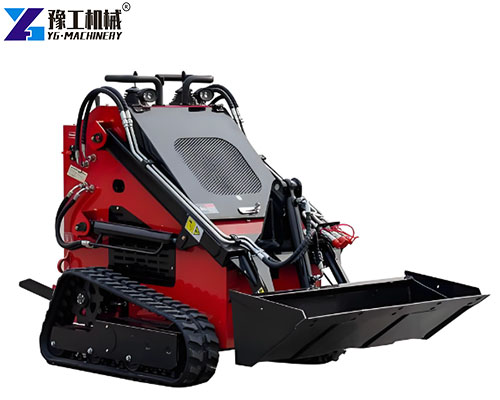

Stand-up mini skid steer models:
| MODEL | V1000 | S370 |
| Basic performance parameters | ||
| Bucket width | 1235mm | 1070mm |
| Distance from ground | 200mm | 122mm |
| Gradeability | 25° | 25° |
| Maximum loading height | 2140mm | 1925mm |
| Maximum unloading height | 1522mm | 1373mm |
| Maximum height | 2794mm | 2415mm |
| Minimum height | 1548mm | 1208mm |
| Bucket capacity | 0.19m³ | 0.07m³ |
| Bucket loading quality | 650kg | 210kg |
| Size | ||
| Dimensions | 2691*960*1548mm | 2138*1070*1208mm |
| Include Bucket length | 2691mm | 2138mm |
| Does not include Bucket length | 1981mm | 1528mm |
| Engine | ||
| Brand | YANMAR/KUBOTA | B&S |
| Model | 3TNV80/D1105 | 25T2 |
| Rated power | 17.8kw/18.5kw | 8.6kw |

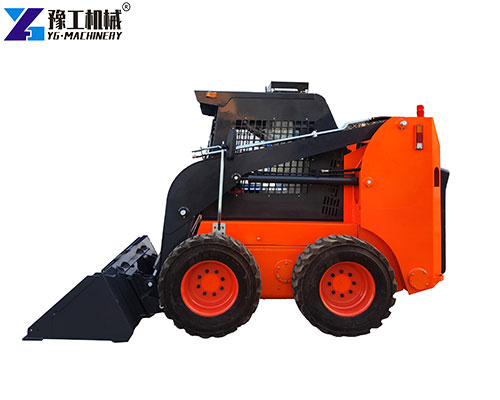

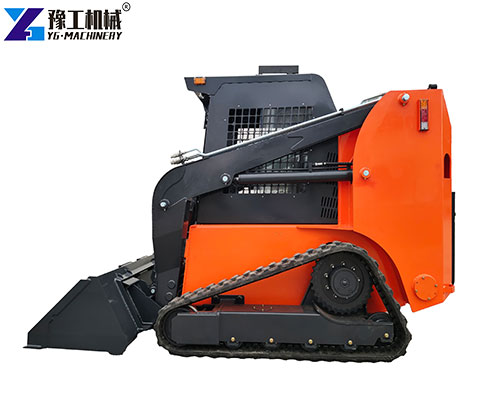

Mini skid steer with cab models:
| Model | W45 | W65 | T50 | T65 |
| Operating load (kg) | 700 | 1050 | 700 | 1000 |
| Max Speed（km/h） | 10 | 10 | 10 | 12 |
| Rated flux (L/min) | 80 | 89 | 80 | 89 |
| Rated power (Kw) | 36.7KW | 55KW | 45KW | 55KW |
| Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
| self weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
| Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
| Hheight to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
| Dumping angle at maximum height(° ) | 37.5 | 32 | 40 | 40 |
| Dumping height(mm) | 2342 | 2410 | 1990 | 2270 |
| Dumping reach(mm) | 550 | 850 | 1040 | 1120 |
| Rollback o bucket on ground(° ) | 20.5 | 23 | 30 | 30 |
| Rollback of bucket at full height(° ) | 96.5 | 95 | 100 | 100 |
| Wheelbase(mm) | 991 | 1074 | 1230 | 1500 |
| Ground clearance(mm) | 185 | 205 | 230 | 200 |
| Angle of departure(° ) | 20 | 20 | 18.5 | 18.5 |
Application Advantages of Skid Steer Front Loader
- Extreme Maneuverability:
Its minimum turning radius is less than half that of similar articulated loaders, allowing it to move flexibly in narrow environments such as warehouse aisles and ship cabins. The short wheelbase design further enhances this advantage. - Wide Applicability:
From urban infrastructure to factory workshops, from docks to ship decks, the small tracked skid steer performs with ease. The rubber track design reduces noise and vibration while protecting the ground surface from damage. - Powerful Passability:
A compact body does not mean performance compromise. With high ground clearance and a climbing ability of 25° (as seen in the V1000 model), it adapts well to complex terrains.
Skid Steer Front Loader’s Multifunctional Attachment System
- Quick Change Capability:
Attachments can be replaced on-site within minutes, greatly improving equipment utilization. The quick-connect system allows the skid steer front loader to rapidly switch to various specialized tools. - Rich Attachment Options:
YG Machinery provides dozens of attachments including general-purpose grapples, backhoes, cutters, snow blades, and mowers, meeting diverse needs from construction to agriculture. - Enhanced Cost Efficiency:
With one machine serving multiple purposes, users can handle various jobs without investing in multiple specialized machines. The high-performance engine provides stable power output for all attachments.
Skid Steer Front Loader Safety and Operating Comfort
- Stable Structure Design:

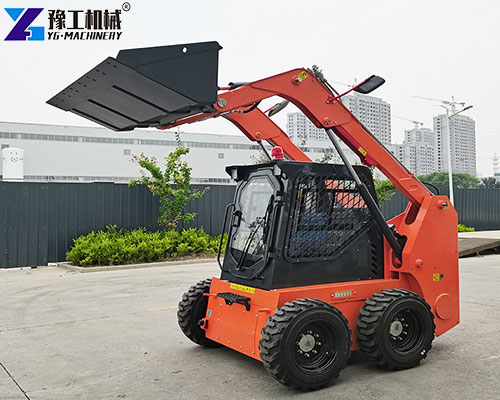

For the cab-equipped small skid steer loaders for sale, the cab is centrally located to improve stability and visibility. The low center of gravity reduces rollover risk, especially on uneven terrain. - User-Friendly Control Interface:
Intuitive control layout and comfortable operation reduce fatigue. Cab models are equipped with air-conditioning systems for comfortable operation in all weather conditions. - Comprehensive Safety Configuration:
The dual hydraulic pump system improves efficiency and reliability under heavy loads, while the four-wheel independent drive system ensures stronger power and smoother control.
How to Choose the Right Model
- Non-cab Models (V1000, S370): Ideal for users with limited budgets or simple working conditions. These models are smaller, lighter, and perfect for extremely narrow or indoor environments.
- Cab Models (W65, T65): Designed for long working hours or harsh environments. The cab offers better protection and comfort with air-conditioning for improved efficiency in hot or cold climates.
- Power and Load Selection: Choose the right model based on workload. For light operations, select smaller models like S370 (8.6kw); for heavy-duty work, consider higher-power models like W65 (55kw).
The compact skid steer for sale series from YG not only maximizes space utilization but also delivers exceptional investment returns.
Contact our professional consultants now to get a customized equipment solution and let YG’s machinery show its true value on your job site. Choosing YG means choosing a reliable engineering partner.
Let us recommend the most suitable front loader skid steer configuration and open a new chapter of efficient construction!
Act now to seize limited-time offers and make this powerful machine your key to standing out from the competition!【WhatsApp/WeChat/Phone】+86 13837122632
