Choosing a suitable car charging machine is far more than just comparing power ratings and checking the ev charging machine price. It bears on electrical safety, operational stability, and return on investment for years to come. Especially for operators planning to build a fast charging station for ev, a robust, reliable ev quick charger that stands the test in every aspect is the cornerstone of business success.【WhatsApp/WeChat/Phone】+86 13837122632

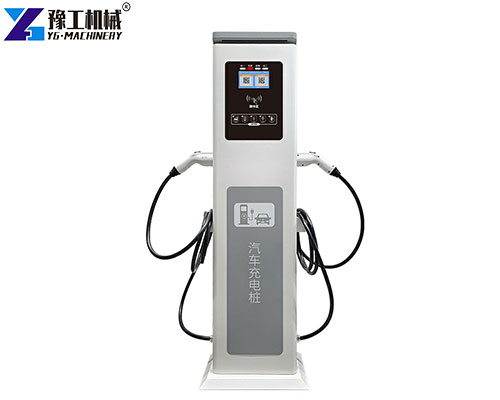

YG Series DC Fast Charging Piles Parameters
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||

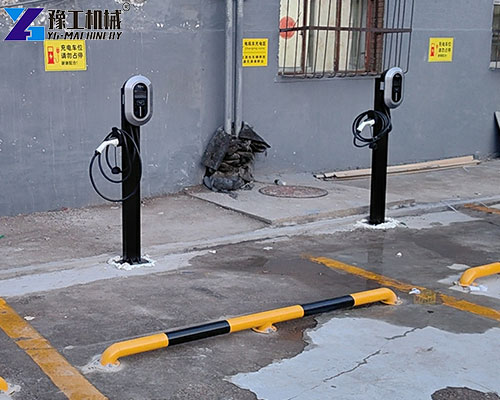

What Conditions Are Required to Deploy a Car Charging Machine?
Before installing a car charging machine, the following basic conditions must be met to ensure project feasibility and safety:
Sufficient Power Capacity: Especially for high-power DC fast charging piles, it is necessary to apply for an independent industrial power supply line, and professional electricians must assess the load capacity of existing transformers and cables.
- Clear Parking Space Ownership or Right of Use: Possess the right of use or ownership of a fixed parking space, and obtain written installation permission from the property management or relevant authorities.
- Safe Installation Environment: The planned installation location should avoid waterlogging and direct sunlight exposure, with adequate space reserved for operation and heat dissipation. A well-planned fast charging station for ev is the starting point of successful operation.
- Network and Platform Access: The equipment needs to be connected to the Internet to realize remote management and payment functions, so stable network signal (wired or wireless) must be guaranteed at the installation site.

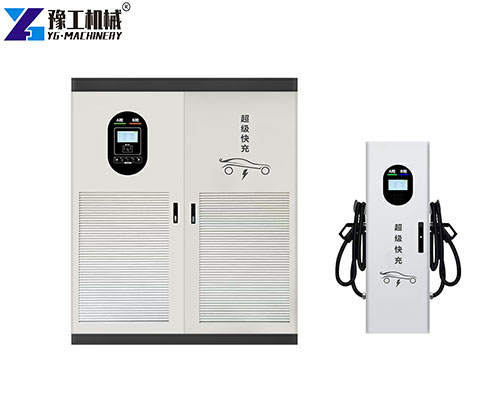

What Makes a High-quality Car Charging Machine?

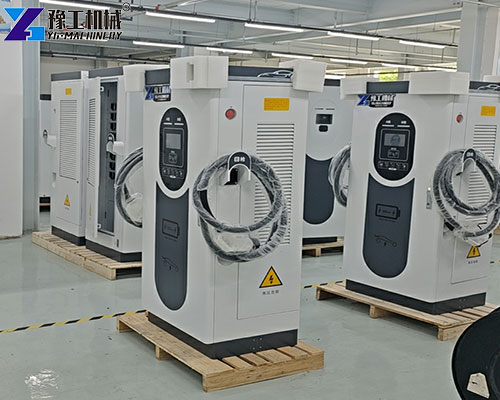

Evaluating the quality of a car charging machine should not be limited to power and ev charging machine price; its internal craftsmanship directly determines equipment lifespan and reliability. Take YG charging piles as an example—we pursue excellence in shell craftsmanship:
- Industry-leading Sheet Metal and Coating Technology: Our partner sheet metal factory is a holding enterprise of our company, implementing strict exclusive quality control. After meticulous polishing, the shell is immersed in a derusting tank for thorough treatment to ensure no moisture residue. Then, galvanized sheet metal and painting technology equivalent to original automobile factory standards are adopted, with the paint finish formed in one go, ensuring the equipment remains as clean as new even after 8–10 years of outdoor operation in harsh environments.
- Cost-uncompromising Sealing Protection: Imported waterproof foam rubber strips are used for the shell, costing 3–4 times that of ordinary brands. Automated gluing is performed by precision robots to ensure the rubber strips have moderate hardness and the sealing is formed in one step. Failure to meet the standards of this critical process can easily lead to rubber strip aging, shell water seepage, and damage to internal core components after three years of use, resulting in huge losses. This is precisely one of the essential differences between a high-quality ev quick charger and cheap products.

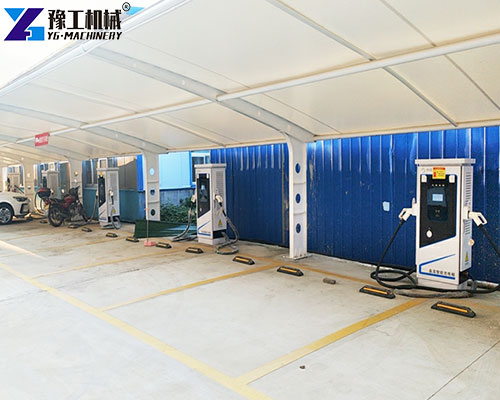

How to Build an Efficient Fast Charging Station for ev?
Building a sustainable charging station is far more than just installing several pieces of equipment; it is a systematic project:
- Scientific Site Selection and Planning: Comprehensive evaluation of factors such as traffic flow, target vehicle types (private cars, logistics vehicles, taxis), and vehicle parking duration is required to rationally allocate the ratio of fast and slow charging piles and design smooth vehicle traffic flow.
- Professional Power Capacity Expansion and Construction: Qualified power engineering design and construction units must be hired to complete the full set of compliant processes from power application and capacity expansion to cable laying and grounding protection—this is the bottom line for safe operation.
- Intelligent Operation and Management Platform: It is crucial to choose a supplier like YG that provides a powerful cloud management platform. The platform should support functions such as remote equipment monitoring, fee settlement, fault alarm, and data analysis to realize unmanned, intelligent station operation.
Points for Long-term Maintenance After Car Charging Machine Installation
Regular maintenance is essential to ensure the long-term stable operation and extend the service life of the equipment:
- Remote Intelligent Monitoring: Make full use of the management platform to check daily data such as equipment online status, charging success rate, and revenue reports, and detect anomalies in a timely manner.
- Regular On-site Inspection: Clean the charging pile body quarterly, check for physical damage to the charging gun cable, screen, and buttons, confirm the normal operation of the cooling fan, and ensure no debris accumulation around the equipment.
- Software and System Upgrade: Choose equipment that supports OTA remote upgrade (such as YG charging piles), which can ensure continuous access to new functions and security patches without interrupting services, keeping your ev quick charger in optimal condition at all times.
Why Do More and More Operators Choose YG?
When evaluating ev charging machine price and comprehensive value, YG charging piles provide highly competitive solutions. We are not just a manufacturer, but your reliable partner. Our advantages stem from control over the core supply chain, craftsmanship standards higher than industry norms, and an intelligent management platform that empowers operators to succeed. Choosing YG means choosing a car charging machine that stands the test of time, and a construction solution for fast charging station for ev that effectively reduces operating costs and improves return on investment.
Contact Us Now
If you are planning a private charging pile installation or a commercial charging station project, and wish to obtain more detailed technical solutions and competitive product quotations, please feel free to contact our professional team at any time. Let us help you solve all challenges of charging infrastructure with a one-stop service.【WhatsApp/WeChat/Phone】+86 13837122632
