With the popularization of electric vehicles, charging infrastructure has become the key to the development of the industry. As core energy-supplementing equipment, the electric vehicle charging pile is not only related to users’ charging experience, but also directly affects the promotion efficiency of electric vehicles.【WhatsApp/WeChat/Phone】+86 13837122632

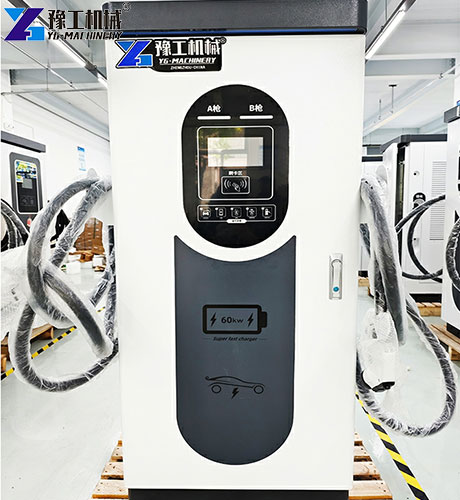

Hot-selling Car Charging Machine Parameters
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Safety Hazards of Traditional Charging Methods
Before the popularization of professional charging equipment, electric vehicle users often faced the following safety risks:
- Circuit Overload Risk: Household circuits are difficult to bear high-power charging loads, which are prone to cause circuit overheating and even fire.
- Lack of Protection Mechanism: Ordinary sockets do not have protection functions such as overvoltage protection, leakage protection and battery reverse connection protection, which pose a threat to vehicle batteries and personal safety.
- Poor Environmental Adaptability: During outdoor charging, the equipment is vulnerable to moisture and dust, accelerating aging and increasing the risk of short circuit.
Modern Solution: Intelligent Electric Vehicle Charging Pile
To address the drawbacks of traditional charging, a new generation of intelligent electric vehicle charging pile has emerged as the times require, with its advantages mainly reflected in:
- Comprehensive Safety Protection: Adopting a casing with IP54 protection rating, it is equipped with multiple hardware protections such as over-temperature protection, short circuit protection and leakage protection. Combined with software intelligent monitoring, it achieves dual safety guarantee.
- Smart Interconnection & Convenient Operation: Remote reservation, payment and status inquiry can be realized through APP or mini-program. The 7-inch touch screen makes the operation intuitive and simple.

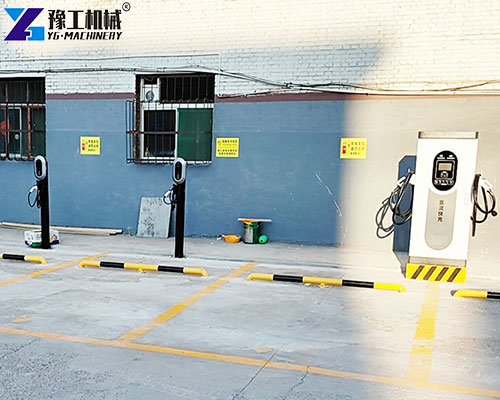

- Wide Application Adaptability: Whether in commercial centers, residential areas or bus depots, this car charging machine can be flexibly deployed and is compatible with various types of electric vehicles.
Differences Between DC and AC Electric Vehicle Charging Pile

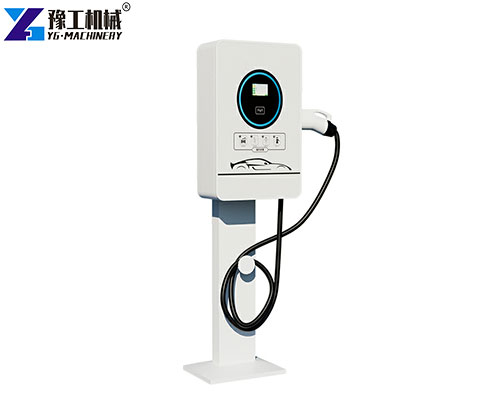

Before choosing a suitable ev charger stand, it is necessary to understand the two mainstream technical types:
DC Fast Charging Pile (DCFC): It directly converts alternating current into direct current for charging the battery, with high power (usually above 60KW). It can replenish a large amount of power within 30-60 minutes, suitable for places in urgent need of fast charging such as highway service areas and commercial centers.
AC Slow Charging Pile (AC): It converts current through the on-board charger, with relatively low power (usually 7KW-22KW). It takes several hours to fully charge the battery, suitable for scenarios with long parking time such as residences and office buildings. Users need to make a choice based on actual usage scenarios and vehicle compatibility.

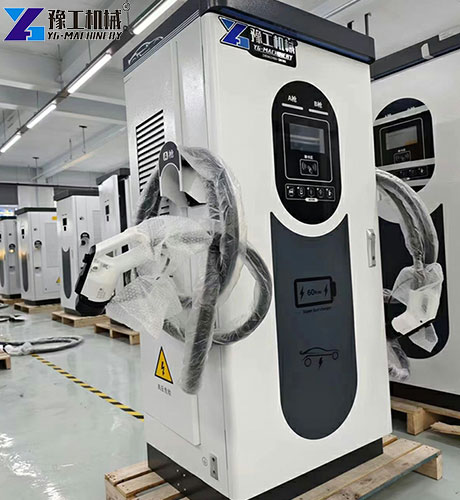

Factors Affecting EV Car Fast Charger Price
Ev car fast charger price is directly related to power and configuration. As shown in the table above, ranging from 60KW to 120KW, the higher the power, the higher the price usually is. When making a decision, one should not only focus on the initial purchase cost, but also consider the long-term value of the equipment. For example, higher conversion efficiency (≥94.5%) and power factor (≥0.99) mean lower power loss and advantages in grid subsidies, while a longer mean time between failures (MTBF up to 100,000 hours) reduces maintenance costs and downtime losses. Therefore, choosing a reliable and efficient device may result in a lower total cost of ownership.
Contact Us
If you have any questions about or cooperation intentions for intelligent electric vehicle charging pile, our professional team is always ready to provide you with support:
- Product Consultation & Information Acquisition: If you wish to gain an in-depth understanding of the detailed product information of the YG series charging piles, you can click to read our professional article EV Charging Pile for an in-depth interpretation.
- Professional Connection & Customized Solutions: If you have specific project needs, site selection planning or require customized solutions and quotations, please feel free to contact our professional team directly. We provide one-on-one technical and commercial consulting services.【WhatsApp/WeChat/Phone】+86 13837122632

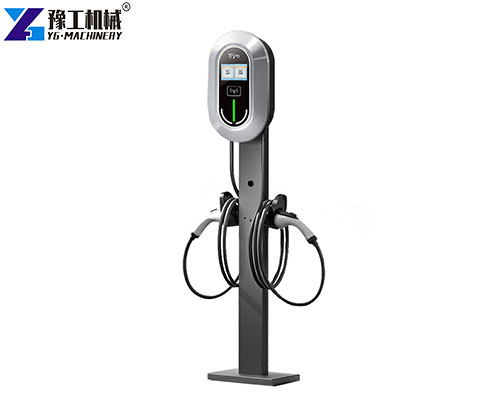

- Service Commitment: We are committed to becoming your reliable partner, providing full-life-cycle services from pre-sales consultation, solution design to installation, operation and maintenance, to ensure that every ev charger stand can operate stably and efficiently.
