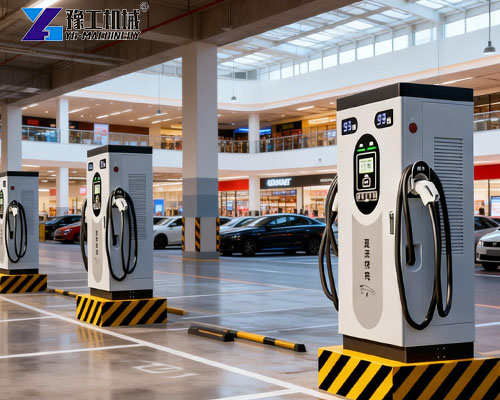

A high-performance fast charger for ev car not only drastically cuts down charging waiting time, but also serves as the key to safeguarding vehicle battery safety and enhancing user experience.【WhatsApp/WeChat/Phone】+86 13837122632

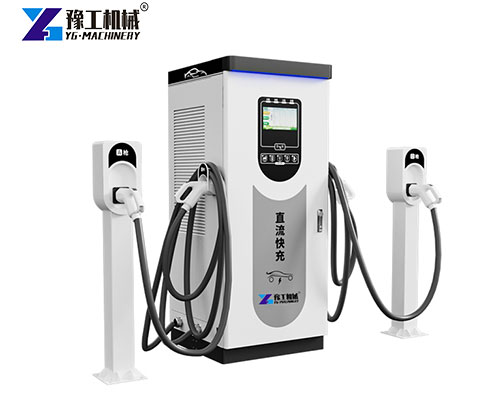

Parameters of Dc Fast Charger for Sale
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Why Choose a Fast Charger for Ev Car?
Choosing a professional fast charger for ev car means opting for a safe, efficient and sustainable charging experience for the future.
- Ultimate efficiency, time is money: With a power output of up to 120KW, it can replenish a large amount of driving range for vehicles in a short time, truly achieving “a cup of coffee time, full charge and go”. It is a powerful tool for fleet operations and commercial venues to boost turnover rates.
- Wide compatibility, one charger for multiple uses: Boasting a wide voltage output range of 200-750V, it can intelligently adapt to most electric sedans, logistics vehicles, buses and other models on the market, delivering high investment value.
- Stable and reliable, a worry-free choice: With a mean time between failures (MTBF) of up to 100,000 hours, it ensures long-term stable operation of the equipment, reducing operation and maintenance costs and troubles.
Multi-layer Safety Protection of Fast Charger for Ev Car
A safe rapid electric car charger is the top priority of design. Through the collaboration of software and hardware, we have built a safety protection system that far exceeds industry standards.
- Dual protection against overcurrent and overload: An innovative “software + hardware” dual protection mechanism is adopted, featuring more sensitive and rapid response, which can effectively prevent damage to equipment or vehicles caused by abnormal current.
- Real-time monitoring with multiple sensors: Built-in temperature, smoke and other sensors monitor the internal and surrounding environment of the equipment 24/7. Abnormal conditions trigger instant alarms and linked protection, eliminating hazards before they occur.
- Intelligent high-temperature auto start/stop: When an overheated charging gun head is detected, the system will automatically adjust the power or pause charging, and resume once the temperature returns to normal. It protects battery safety throughout the process and eliminates the risk of overcharging.
Smart Configuration of Fast Charger for Ev Car
Intelligence is the core of modern quick charge for electric cars. With cutting-edge technologies, our equipment achieves all-round convenience from the user side to the management side.
- Remote monitoring and OTA upgrade: Managers can check equipment status and transaction data in real time through the cloud platform. The leading OTA technology enables remote software upgrades and function iterations without on-site operations.
- Full-scenario intelligent networking: Based on IOT technology, the equipment can seamlessly connect to intelligent networks, supporting location search, navigation, charging reservation and multiple mobile payment methods via APP/mini program with a simple and smooth process.
- Humanized interactive design: Equipped with a 7-inch HD touch screen, it displays status at a glance and features simple and intuitive operation. It supports multiple charging modes such as fixed amount, fixed power and fixed time, meeting personalized needs.
Energy-Saving Design of Rapid Electric Car Charger
A true expert in fast charging pursues not only speed, but also energy utilization efficiency, which is directly related to operation costs and environmental value.
- High-efficiency conversion: With an overall conversion efficiency of ≥94.5%, it means less power loss and more energy input into the battery, delivering significant energy-saving benefits in long-term use.
- High power factor: When the load is above 50%, the power factor is ≥0.99, which can effectively reduce harmonic pollution to the power grid, improve power grid quality, making it a friendly “grid citizen”.
Material of Quick Charge for Electric Cars
As equipment used outdoors for a long time, its shell material directly determines durability and safety.
- High-performance flame-retardant shell: Adopting flame-retardant PC/ABS material or sheet metal shell, it has excellent fire and flame-retardant performance, which can effectively inhibit the spread of fire and provide a solid physical barrier for charging safety.
- All-weather protection: With an IP54 protection rating, it is impervious to wind, rain and dust, and can operate stably in a wide temperature range of -25°C to 50°C, adapting to China’s complex outdoor environments.
An excellent fast charger for ev car is the perfect combination of safety protection, intelligent interaction, high efficiency, energy saving and robust quality. Choosing such a professional device means opting for efficiency, peace of mind and long-term value guarantee for your electric vehicle life or operation business.【WhatsApp/WeChat/Phone】+86 13837122632
