The underground parking lot of a commercial complex in the center of Brussels needs to be equipped with at least 10% fast charging points for 200 parking spaces. YG Machinery has specifically provided a solution of 12 units of 120KW fast charger for ev.【WhatsApp/WeChat/Phone】+86 13837122632

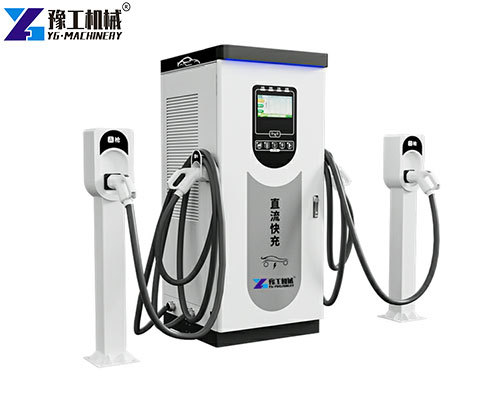

Dc Fast Charger for Sale Parameters
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detectionovervoltage protectionundervoltage protectionoverload protectionshort circuit protectiongrounding protectionover temperature protectionlow-temperature protectioninsulation monitoring protectionpolarity reverse connection protectionlightning protectionemergency stop protectionleakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||

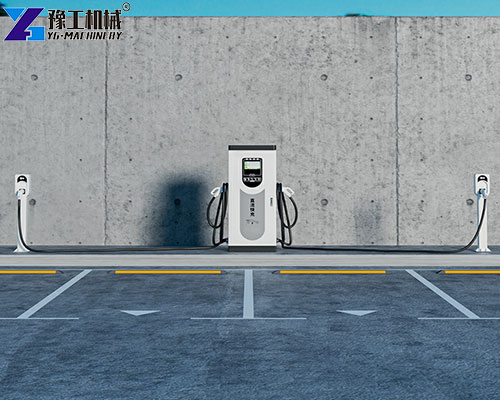

Underground Scenario Solutions for Fast Charger for Ev
- Heat Dissipation in Enclosed Spaces: Aiming at the limited ventilation in underground areas, the forced air cooling design ensures the equipment operates at full power in a 35°C environment. The 120KW model maintains a stable temperature below 45°C even after 8 hours of continuous operation.
- High Humidity and Moisture Protection: The humidity in underground parking lots often reaches 85%. The IP54 protection level and flame-retardant casing effectively prevent moisture and rust, reducing the equipment failure rate by 80% compared with traditional devices.
- Compact Layout Installation: With dimensions of 6354231600mm, it fits perfectly in the gaps between parking spaces. The floor-standing design requires no damage to the ground structure, and 12 units only occupy the space of 3 standard parking spaces.
Efficiency Improvement Solutions for Fast Charger for Ev
- Reservation to Avoid Queues: Shoppers can reserve charging via the multilingual APP, and the system automatically navigates to idle equipment. The waiting time during peak hours is reduced from 40 minutes to 5 minutes.
- Remote Centralized Management: The property team monitors the status of 12 devices in real time through the IOT platform. The response time for abnormal alarms is shortened from 1 hour to 5 minutes, and manual inspection work is reduced by 90%.
- Local Payment Adaptation: It supports mainstream contactless payment and APP scan code payment in Belgium, with a payment success rate of 99%.
Ev Charging Pile’s Underground-Level Protection
- Multi-Sensor Early Warning: Smoke and temperature sensors monitor in real time. Once signs of battery thermal runaway are detected, the power is immediately cut off and the fire sprinkler system is activated, with a response time of less than 1 second.
- Dual Protection Against Overload: The dual hardware-software protection technology quickly cuts off power when the underground power grid fluctuates, preventing fires caused by equipment damage and meeting the strict safety requirements of commercial premises.
- Auto-Stop When Fully Charged: It automatically detects the battery status and cuts off power immediately after full charge, preventing potential safety hazards in underground spaces due to overcharging and extending the service life of vehicle batteries.
Long-Term Benefits of Ev Charging Machine
- Significant Energy Saving and Cost Reduction: With a conversion efficiency of ≥94.5% and off-peak charging, the monthly electricity cost is reduced by 2,200 Euros, and the equipment investment is expected to be recovered within 3 years.
- Low Maintenance and Expense Saving: The 100,000-hour MTBF ensures equipment durability. There have been no failures in half a year of operation, saving about 8,000 Euros in maintenance costs.
- OTA Upgrade for Value Preservation: Remote upgrades complete the adaptation to Europe’s new charging protocols without the need to replace hardware, extending the service life of ev charging machine to more than 8 years.
Practical Value of Fast Charger for Ev
The parking lot operation manager said: “YG’s fast charger for ev has perfectly solved our operation problems. The 120KW model can charge an electric SUV to 80% in just 25 minutes. Especially the low-noise design of the ev charging pile—you can hardly hear the operation sound in the underground parking lot, and the customer complaint rate has dropped to zero.”
Whether you want to equip an underground parking lot with fast charger for ev or upgrade the energy supplement network for a commercial complex, YG Machinery can provide full-process support from solution design, equipment customization to local installation and operation & maintenance. Consult us now, and you can also get exclusive compliance adaptation plans and cost calculations for the European market, allowing you to take the lead in the wave of electrification and easily earn the first bucket of gold in the energy supplement era!【WhatsApp/WeChat/Phone】+86 13837122632
