Is there a machine that can handle both 600mm standard curbs and 1300mm crash barriers, while also forming drainage ditches and side ditches in one pass? The YG1300 kerb laying machine does it. Maximum working width: 2000 mm, maximum height: 1300 mm, steel tracks with a low-center-of-gravity design, auto-steering + auto-leveling, and the hopper can shift sideways by 450mm. One curb paver machine covers multiple construction scenarios, giving a much higher ROI than single-purpose equipment.
YG1300 Slipform Curb Machine parameters
| Parameter | Specification |
| Overall dimensions (excluding mold) | LWH, 4.2m * 2.6m * 2.2m |
| Packing dimensions (20-foot container) | LWH, 4.2m * 2.2m * 2.2m |
| Weight | 6T (excluding oil, water, concrete, molds, etc.) |
| Power system | R4105-type four-cylinder turbocharged diesel engine, rated speed 1500 RPM, rated power 62 KW |
| Walking power system | 2 * 3KW variable frequency motors |
| Walking speed | 0.375-7.5 m/min (the speed range can be adjusted according to the concrete structure) |
| Forming process | Vibrating rod |
| Direction control | Automatic steering sensor control of machine |
| Leveling control | Automatic leveling sensor control of mold |
| Lateral travel of the mold | 1200mm |
| Mold lifting stroke | 1300mm |
| Lateral travel of the hopper | 450mm |
| Max dimensions of construction structure | W 2000mm, H 1300mm |
| Track specifications | 2 steel tracks, width 400mm |
| Feeding method | Hydraulic motor-driven helical blade |
| Hopper volume | 0.5m³ |
| Mini turning radius | 3m |
| Additional configurations | Car wash machine, sunshade, vehicle tools |
| Optional configuration | 10-key remote control: Packing auger: ①FWD, ②REV; Turn: ③L, ④R; Walking: ⑤FWD, ⑥BWD; Mold: ⑦up, ⑧down, ⑨extend, ⑩retract |
| Optional configuration | high-frequency vibrating rod (Advantages: ①Self-starting ②Adjustable vibration force(8000-12000RPM)) |
Why the YG1300 Kerb Laying Machine Deserves Your Attention
- Ultra-low center of gravity: The YG1300 uses two 400mm-wide steel tracks. Its overall center of gravity and chassis height are significantly lower than similar models, giving better stability when pouring large cross-section structures. No extra braking measures are needed on slopes.
- Fully automatic control system: Standard auto-steering sensor and auto-leveling sensor. The machine automatically corrects its path and levels itself along the guide line, ensuring high straightness and greatly reducing manual measurement and correction work.
- Variable-frequency stepless speed control: The walking system uses two 3KW variable-frequency motors, allowing paving speed to be adjusted steplessly between 0.375-7.5 m/min to suit different concrete slumps and cross-section sizes.

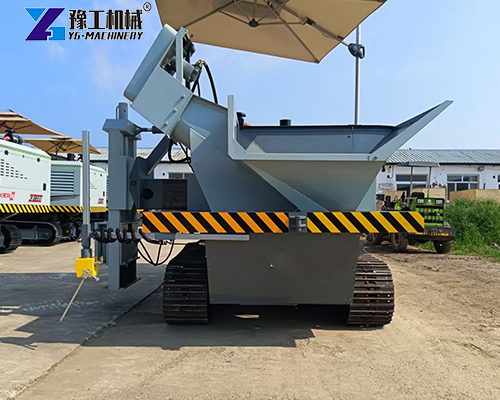

- Lateral hopper movement: The hopper can shift sideways by 450mm, making it easy for excavators to feed directly, and also allowing the hopper to be retracted to reduce overall width during transport.
- Full-container shipping: Packing dimensions 4.2m×2.2m×2.2m, weight about 6 tons – fits into one standard 20-foot container, keeping sea freight costs under control.
Why the YG1300 Kerb Laying Machine Is Better for Large-Scale Construction

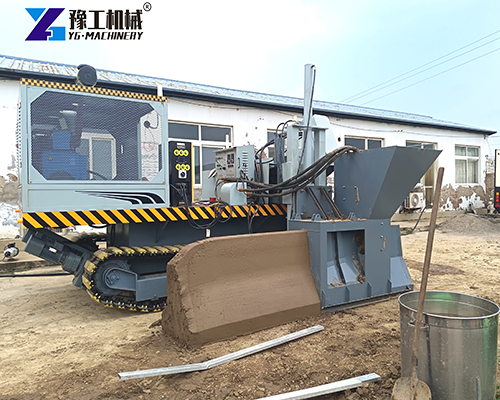

- Large cross-section capability: Mold lateral travel 1200mm, mold lifting stroke 1300mm – maximum construction dimensions of 2000mm wide and 1300mm high – can form curbs, drainage ditches, safety barriers, retaining walls, and other large cross-sections in one pass.
- Vibrating rod forming: Unlike attached vibration motors, the YG1300 uses a vibrating rod inserted directly into the concrete for better compaction of large-volume concrete, resulting in higher strength and a smoother surface finish.
- Heavy-duty chassis support: The dual steel-track chassis has greater deadweight and wider ground contact, providing ample support and roll resistance during large-section pouring, ensuring the mold does not deform under heavy load.
- Screw secondary mixing: The hydraulic motor-driven helical blade mixes the concrete a second time during feeding, improving workability, preventing large aggregate blockages, and ensuring uniform density inside large cross-sections.
- Single-steering system stability: The YG1300 uses a single-steering design, which provides more stable direction control during continuous large-section construction compared to dual-steering models, reducing deviation risk.
What Configuration Options to Consider When Shopping for a Kerb Machine for Sale
- High-frequency vibrating rod (optional): Available with adjustable vibration frequency from 8000-12000 RPM, self-starting design. Works better for dry-hard concrete and extra-large cross-sections – recommended for large-section projects.
- 10-key wireless remote control (optional): Full-function remote operation covering screw forward/reverse, left/right steering, forward/backward travel, and mold up/down/extend/retract. The operator can stay away from the work area, reducing labor intensity.
- Additional practical configurations: Depending on the site, you can add a car wash machine (for quick cleaning of residual concrete after work), a sunshade (for protection in hot or rainy weather), and vehicle tools.
- High-altitude power version: Standard R4105 four-cylinder turbo diesel engine rated at 62KW. For high-altitude areas, an increased power output version is available to ensure adequate power reserves even in low-oxygen conditions.
FAQ About the Kerb Laying Machine
Q1: Can the walking speed of the YG1300 be adjusted?
A: Yes. The YG1300’s walking speed is steplessly adjustable between 0.375–7.5 m/min. The operator can flexibly adjust the speed according to concrete slump, cross-section size, and site conditions to ensure forming quality.
Q2: Does the automatic steering system require extra setup?
A: No complex setup is needed. Just lay a guideline along the designed alignment before work, start the auto-steering sensor, and the machine will automatically follow the line. The operator only needs to monitor the process.
Q3: What if concrete supply is interrupted during forming?
A: The YG1300’s screw feeder is driven by a hydraulic motor with high torque, so it rarely jams. Even if the mixer truck pauses briefly during refilling, some material remains in the screw, allowing a smooth transition without forming gaps.
Q4: Can the YG1300 really fit in a 20-foot container?
A: Yes. Packing dimensions are 4.2m × 2.2m × 2.2m, which fits a standard 20-foot container (internal dimensions approx. 5.9m × 2.35m × 2.39m). No major disassembly is needed, and sea freight costs are manageable.
Q5: What is the minimum turning radius of the YG1300, and what curved sections can it handle?
A: The minimum turning radius is 3m, which covers common curved sections such as highway ramps, roundabouts, and city road bends. The auto-steering system still maintains precise correction during turns.
Choose YG
Can it run on soft sandy subgrade at the edge of the desert? Yes – steel tracks don’t get stuck. Can it stay stable on steep slopes? Yes – the low-center-of-gravity design resists tipping. Can it form 1.1-meter-high crash barriers in one pass? Yes – the 1300mm maximum forming height says it all. That’s the answer from the YG1300 slipform curb machine. No matter where your site is, how complex the terrain, or how large the structure, this machine can handle it. Still unsure which kerb machine for sale to choose? Contact YG directly and let our engineers recommend the right model for your working conditions.
