Russia has an extremely short construction window — suitable temperatures last less than five months each year. Long winters and frozen ground bring road construction to a near halt. The traditional precast curbstone process involves advanced raw material preparation, curing, transportation, and on-site manual installation. This full workflow wastes precious construction time on waiting and hauling. For this reason, a growing number of Russian engineering contractors are turning to the concrete curb and gutter machine, which delivers one-step forming ready for immediate paving.
This equipment mixes concrete raw materials and continuously spreads, vibrates, and extrudes them into shape on site. It eliminates prefabrication and secondary installation steps, lifting daily working output from 200 meters to over 800 meters. For Russian projects where construction schedules are measured by hours, a dependable slipform curb machine enables crews to finish several extra kilometers of pavement before snow and ice arrive. This alone becomes the critical threshold determining whether most small and medium construction teams can deliver projects on schedule.
Parameters of Concrete Curb and Gutter Machine
| Model | YG20 | YG30 | |
| Length*Width*Height | 5200*2400*2800mm | 5200*4100*2900mm | |
| Unladen mass | About 7000kg | The deadweight is greater, the crawler grip is raised, the construction stability is improved, the climbing and sliding formwork flatness, and the slope is free from interference from external factors | |
| Construction scope | Width ≤ 2000mm (road shoulder, ditch), height ≤ 600mm (kerbstone, curbstone) | Width ≤ 2000mm Height ≤ 1100mm | |
| Hopper volume | 1m³ | 0.5m³ | |
| engine | Rated power | 65kw | Inline 4-cylinder turbocharged diesel engine (for high altitude areas, increased power output) |
| Operating voltage | AC380v | ||
| Startup form | Electric start | ||
| Rated speed | 1500rpm | ||
| Heat dissipation form | Water cooling | ||
| Molding method | High-frequency vibrator (suitable for plastic concrete) | Formed shoulders and side ditches have higher strength | |
| Attached vibration motor (suitable for dry, hard concrete) | Can be paved with curbstones and higher curbstone heights | ||
| Automatic leveling system (imported DLS, optional) | Leveling range ±40mm | Imported components, temperature compensation, overvoltage, and overcurrent protection | |
| Steering form | Dual automatic steering system (imported DLS, standard) | Imported components, temperature compensation, overvoltage, and overcurrent protection | |
| Manual steering wheel (hydraulic steering gear) | |||
| Minimum turning radius | 6800mm | ||
| Paving and transfer speed | 1m-10m/min | Frequency conversion speed regulation can achieve a wide range of stepless adjustment of paving and transfer speed | |
| Travel drive form | Full-time four-wheel drive | When the road slope is ≤5%, a fully loaded 15m3 tank truck can be used for construction, and the slipform machine connection construction can be realized. | |
| Screw feeder drive type | High torque hydraulic gerotor motor | Ensure the continuous feeding of concrete, the screw feeder will not be stuck by large stones, and the concrete will be mixed twice to improve the workability of the concrete. | |
Case 1: Municipal Road Project in Saint Petersburg
Client Background
Andrey runs a mid-sized municipal engineering firm in Saint Petersburg specializing in urban road and residential supporting infrastructure works. In early 2025, he secured an 8-kilometer municipal road renovation project with a tight 3-month construction timeline.
Client Demand
Using conventional methods, a 20-person crew could lay a maximum of 200 meters of curbstone daily, requiring 40 days for the full 8 kilometers. Factoring in low-temperature delays and weather buffers, on-time completion was nearly impossible. Andrey urgently needed an efficient concrete curb and gutter machine to replace manual labor.
YG Solution

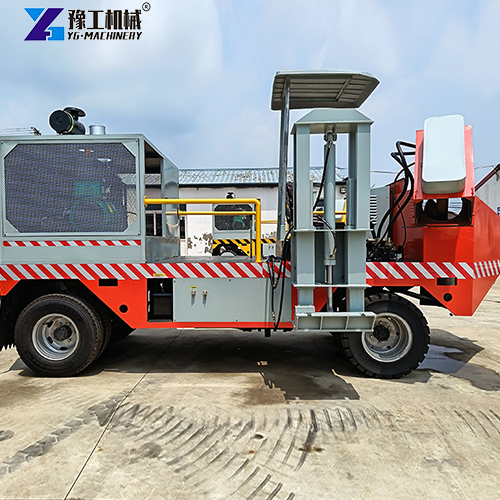

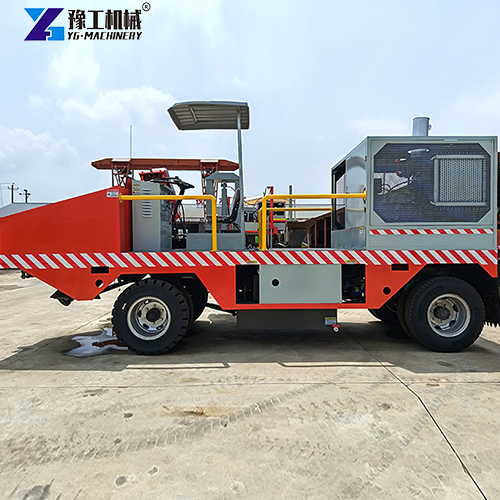

YG’s technical team recommended the wheel-mounted YG20 slip form kerb machine for Andrey. This model comes with a dual automatic steering system, limiting construction deviation to within 2 cm. Its screw feeder is coated with imported wear-resistant material, so it never jams even with coarse local aggregate. The 1m³ hopper maintains an uninterrupted material supply. Additionally, the unit fits into a 20-foot shipping container for transport, cutting freight costs by 30% compared to rival brands.
Project Process
After multiple video demonstrations and technical Q&A sessions, Andrey was highly impressed by the machine’s cold-start performance and automatic leveling system. The YG20 arrived at the Saint Petersburg construction site in May 2025.
Operational Results
Only three operators are required to run the equipment, laying 800 meters of curbstone per day — four times the output of traditional methods. The original 20-person team was downsized to 5 staff, and the project finished 15 days ahead of schedule. Tests confirm slipformed curbs deliver 30% higher overall strength than precast blocks, with zero cracks forming after exposure to winter de-icing agents.
Case 2: Highway Expansion Project in Kemerovo Oblast
Client Background
A major road and bridge contractor in Kemerovo Oblast won a federal highway expansion contract in 2025, which required simultaneous construction of curbstones and drainage ditches.
Client Demand
The project needed a slipform curb machine capable of pouring curbs and drainage ditches in one pass, with reliable performance in Siberia’s frigid climate and uneven terrain.
YG Solution

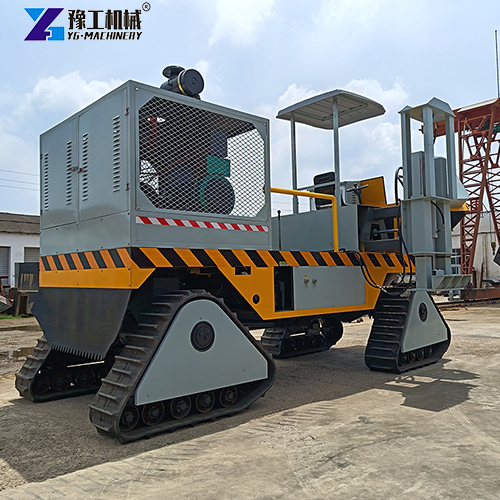

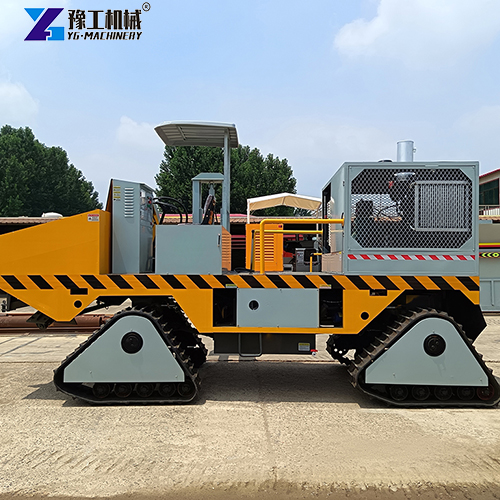

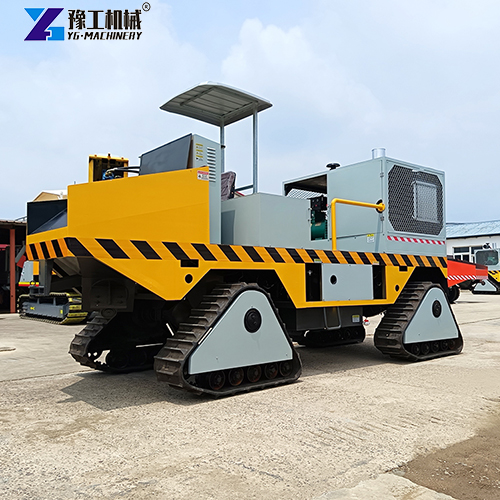

YG proposed the tracked YG30 slip form kerb machine. Its heavier deadweight delivers stronger track traction for superior construction stability, with slope operations unaffected by outside interference. Most importantly, YG offers custom mold service — custom dies can be manufactured per client construction drawings to enable multi-task operation with a single machine.
Project Process
The client learned about YG equipment through an industry partner who collaborated with us in Saint Petersburg. After inspecting Andrey’s job site, they were satisfied with the YG20’s performance but required greater forming capacity and more versatile molding functions for their project. YG’s sales team presented three technical plans with custom molds and demonstrated each via video. The client was ultimately convinced by our multi-functional single-unit solution, which eliminates the worry of purchasing one machine for only one type of work. They placed a one-time order for one YG30 unit plus three sets of custom molds of different specifications.
Operational Results
On-site deployment of the YG30 paired with three custom molds allowed the same machine to complete slipforming for standard curbstones, drainage ditches, and crash barriers sequentially. Across the whole project, crews laid 12 km of curbs, 8 km of ditches, and 3 km of crash barriers. Automated operation of the slip form kerb machine drastically cut on-site manpower: the original plan required three separate crews totaling 30 workers, yet only one 8-person crew finished all slipforming tasks. Finished structures feature smooth linearity, dense surfaces, and fully compliant strength standards, passing the owner’s inspection on the first submission. Cost calculations show YG’s all-in-one solution reduced the client’s equipment procurement expenses by roughly 40% versus buying multiple dedicated standalone machines.

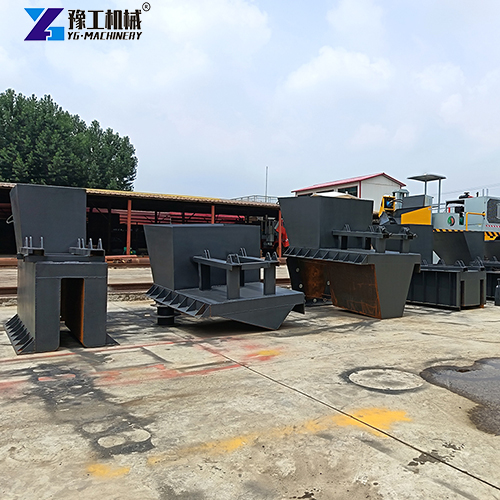

How Concrete Curb and Gutter Machine Meets Diverse Project Requirements via Mold Replacement
One core competitive advantage of the YG kerb machine for sale is its mold-swapping design for multi-scenario operation. Both YG20 and YG30 support fully custom-shaped molds made to construction drawings — covering standard curbstones, U-shaped drainage ditches, crash barriers, and road shoulders. Simply switching molds lets one machine switch between different construction tasks. Mold replacement drastically reduces equipment idle time and repeated purchasing costs. This feature proves especially valuable for Russia’s market, where construction project types vary widely.
Contact YG
With the continuous advancement of Russia’s road infrastructure development, demand for high-efficiency, reliable curb slipforming equipment will keep rising. YG’s concrete curb and gutter machine has built a solid reputation across the Russian market thanks to its cold resistance, high-precision forming, and multi-task versatility. If you are searching for a trustworthy kerb machine for sale, feel free to reach out to us at any time. The YG team will provide professional technical support and customized solutions tailored to your needs.
