If you’ve worked on concrete structure demolition in Australia, you know the headaches: material too thick to cut, too much rebar, tight schedules, and vibration restrictions. Traditional equipment often fails against heavy reinforced concrete, dense steel, and site safety rules. But a concrete rope saw uses a hydraulic-driven diamond wire that runs in a high-speed loop, cutting large, thick structures with a “soft” approach. This tool has been successfully used on wharf piles, bridge piers, underground passages, and more. The two cases below show how the diamond cutting wire saw performed in real Australian jobs.

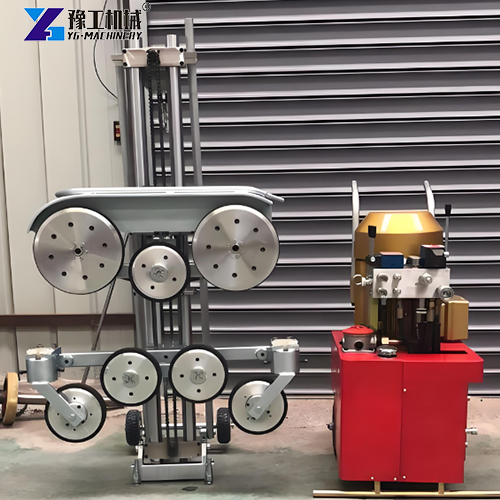

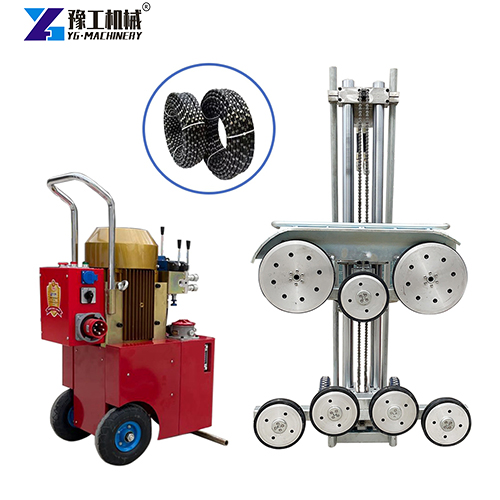

YG Concrete Rope Saw specifications
| Wire Saw Wheel Parameters | Hydraulic Pump Station Parameters | ||
| Wire Drive Mode | hydraulic | Rated Output Power | 22/25KW |
| Model Type | HM-40/80 | Working Voltage | 380v 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Station | Gear pump |
| Output Shaft Speed | 350/940/1300r/min | Motor Working Floe | 40-100L/min |
| Maximum Wire Length | 18m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Volume | 16L |
| Wire Saw Wheel | 64kg | Weight | 98kg |
| Motor Weight | 13kg | Dimension(mm) | 650*550*1150 |
| Cutting Type | Transverse and longitudinal cutting | ||
Case 1: Brisbane Wharf Pile Cutting Project
Customer background: In early 2024, a large marine contractor in Brisbane won a job to demolish a dock facility. They needed to cut over 200 reinforced concrete piles underwater at the North Shore Hamilton Wharf. These piles had been in seawater for years; some were over 1 meter in diameter with heavy rebar inside.
Challenges: Underwater work is tough on both equipment and crews. Traditional underwater cutting is slow and leaves rough surfaces, driving up cleanup costs. The customer needed a stable machine that could run continuously underwater and cut accurately enough to meet later structural modification requirements.
YG solution: The YG technical team recommended the concrete rope saw with a waterproof head and special diamond beads. The hydraulic drive is fully sealed, so it works reliably underwater for long periods. Also, the flexible wire adapts well to complex water currents and irregular pile shapes.
Process: YG provided underwater test videos to ease concerns about waterproofing. After two rounds of technical talks and price negotiation, the customer bought 2 units of concrete rope saw along with matching diamond wire. The project lasted four months, with the machines running underwater almost every day, cutting all 200+ piles.
Results: In this project, the wire saw for concrete showed excellent stability underwater. Apart from routine maintenance and wear-part replacement, no breakdowns occurred. The cut surface smoothness far exceeded expectations, greatly reducing follow-up cleaning and patching. The customer gave high praise for YG’s underwater cutting capability.
Case 2: Queensland Roma Street Station Rail Renovation Project
Customer background: In early 2025, a medium-sized concrete cutting service in Sydney took on a basement renovation for a commercial building near the CBD. The owner wanted to turn an old storage basement into a parking garage, so they needed to remove several reinforced concrete columns and some partition walls. The customer had basic cutting gear, but for columns over 500mm thick, their handheld tools were too slow to meet the contract deadline.
Challenges: Two main difficulties. First, space—the basement ceiling height was under 4 meters, so large machines couldn’t fit, and work areas were cramped. Second, accuracy—after cutting the columns, the floor base had to stay intact for later work; cut surfaces had to be flat, with no damage to the slab. Also, the building is in a commercial zone with strict noise limits and limited daytime working hours, so they needed an efficient solution.
YG solution: The YG sales team recommended a compact setup of the diamond wire cutting saw. The wire saw frame weighs only 64kg, and the power pack is 650×550×1150mm, so it easily goes down narrow stairs and passages. With guide pulleys, the diamond wire can loop around columns flexibly—no large swing space needed like a blade saw. Plus, the saw cuts statically, with almost no vibration or loud noise, meeting all site restrictions.
Process: The YG team calculated wire length and cutting time based on the customer’s column sizes (about 600mm diameter, with dense rebar) and quantity (8 columns), and provided a detailed cutting plan. After comparing several suppliers, the customer finally bought a standard set of the concrete rope saw. During construction, YG guided the first cut’s parameter setup via remote video call; the rest was done by the customer’s own team.
Results: The diamond wire cutting saw performed steadily on all 8 columns. Each column took 40–50 minutes to cut, with good surface flatness and no damage to the floor base. The whole basement renovation was delivered on time, and the customer was satisfied with the ease of use and cutting efficiency.
Why Australian Customers Choose YG Concrete Rope Saw
From these two cases, the YG diamond cutting wire saw has won recognition in Australia mainly for these strengths:
- Strong adaptability: Whether underwater or in sensitive land areas, YG equipment runs steadily. It supports underwater cutting—just connect a water hose to the head inlet for cooling and dust suppression.
- High efficiency: In standard concrete, the YG concrete rope saw cuts about 8 square meters per hour, far faster than traditional methods. Even with dense rebar, the diamond beads maintain a stable cutting speed.
- Flexible operation: It supports both transverse and longitudinal cutting, and with the driven pulley guide system, it handles various angles and shapes. From 18m max wire length to full hydraulic feed, the design meets diverse site needs.
- Full technical support: From pre-sale planning to after-sales remote guidance, YG provides end-to-end service to help customers get started quickly and work productively.
Contact YG for your cutting solution
If you’re working on bridge demolition, dock renovation, rail transit construction, or any other project involving reinforced concrete cutting, the YG concrete rope saw is a partner you can trust. Whether it’s underwater cutting, quiet static cutting in sensitive areas, or precision cutting of thick concrete, YG offers professional equipment and support. Reach out via our official website or sales hotline to get expert advice and a quote tailored to your project needs.
