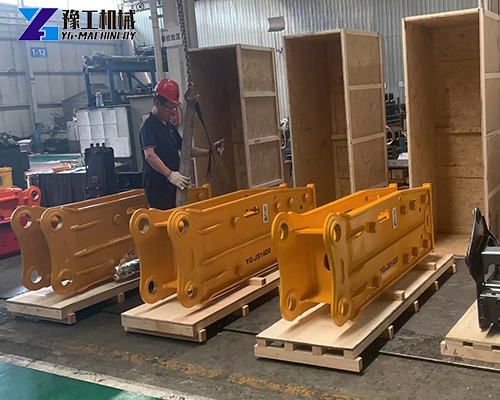

Top Type hydraulic breaker features a top direct-mount design. Its impact force transfers vertically straight down through the chisel, delivering inherent structural advantages for vertical demolition and hard rock breaking. YG’s Top Type hydraulic hammer machine lineup fits excavators ranging from 0.8 tons to 100 tons with a full range of models, which have been widely deployed across multiple overseas markets. Since entering the Saudi market, YG has carried out targeted upgrades to sealing systems and housing strength to adapt to local conditions: extreme high temperatures, heavy dust, and non-stop continuous operation. This article shares two real cases involving municipal road expansion and historical site foundation treatment. You will see how YG selects suitable rock hammer machine models based on clients’ excavator tonnage and rock hardness, and delivers solutions balancing strong performance and a reasonable excavator breaker price.
Hydraulic Hammer Machine Specifications
| Item/Model | Unit | YGB100 | YGB200 | YGB300 | YGB400 | YGB600 | YGB800 | YGB900 | YGB1600 | YGB1900 | YGB3500 | YGB4500 | YGB5000 | YGB5500 | YGB6000 | YGB6500 |
| Top Type Weight | kg | 85 | 140 | 160 | 355 | 440 | 640 | 900 | 1800 | 1970 | 2850 | 3160 | 4120 | 4800 | 5300 | 7200 |
| Box Type Weight | kg | 100 | 167 | 194 | 363 | 450 | 730 | 970 | 1950 | 2050 | 3000 | 3300 | 4250 | 4900 | 5400 | 7400 |
| Length | mm | 1000 | 1300 | 1400 | 1700 | 1750 | 2100 | 2400 | 2700 | 2860 | 3100 | 3286 | 3800 | 3700 | 4200 | 4300 |
| Pressure | bar | 90-120 | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 180-220 | 200-240 | 200-240 |
| Flow | lpm | 15-25 | 20-40 | 25-50 | 40-70 | 50-90 | 60-100 | 80-120 | 120-160 | 130-170 | 170-220 | 200-300 | 210-290 | 220-300 | 230-320 | 360-450 |
| Rate | bpm | 900-1400 | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 | 400-700 | 400-600 | 250-400 | 250-350 | 200-350 | 200-250 | 150-200 | 150-200 |
| Hose | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ |
| Chisel | mm | 40 | 45 | 53 | 68/70 | 75 | 85 | 100 | 135 | 140 | 155 | 165 | 175 | 185 | 195 | 205 |
| Suit | ton | 0.8-2.0 | 1.2-3.0 | 2.5-4.5 | 4-7 | 6-9 | 7-14 | 11-16 | 19-26 | 19-26 | 28-40 | 36-45 | 40-55 | 50-60 | 55-65 | 65-100 |
Case 1: On-site Application for a Municipal Contractor in Riyadh
Client Background
A medium-sized civil engineering contractor based in Riyadh won a bid for an urban road expansion project in early 2025. Massive hard sandstone and old concrete pavement needed to be broken during subgrade construction.
Client Requirements
The project construction period lasted around four months. The client required breakers that are stable and reliable under Saudi summer temperatures above 45°C for continuous operation. The equipment must also be user-friendly for local operators to master quickly. Meanwhile, the client expected a competitive excavator breaker price within their budget.
YG Solution
Our technical team recommended the Top Type YGB900 hydraulic hammer machine, perfectly matching the client’s existing 12-ton excavator. This model delivers balanced impact force matching the excavator’s weight and is equipped with high-temperature resistant sealing systems to withstand Saudi Arabia’s extreme heat.
Project Process
YG sales representatives held online meetings to explain full product parameters and installation guidelines, and shared operation videos of the same model working on other construction sites for reference. After roughly two weeks of communication and price negotiation, YG provided a package with excavator breaker price fitting the client’s budget, and the customer placed an order for two YGB900 units. The whole delivery cycle took 25 days from order placement to shipment. Once the machines arrived in Riyadh, YG offered remote video guidance for installation and commissioning.
Operation Results
The two hydraulic hammer machine units accumulated around 700 working hours over the 4-month project, breaking 80 to 100 square meters of material daily, and fully completed all scheduled breaking tasks. Only one chisel replacement was needed, which falls within normal wear and tear. The client commented that the breaker’s impact power and stability fully met project demands, and the machine was easy to operate.
Case 2: Bulk Purchase by Subcontractor of Dir’iyah Gate Project
Client Background
Dir’iyah Gate is a large cultural heritage regeneration project in Riyadh with huge earthwork volumes. A subcontractor responsible for foundation treatment in certain zones faced complex ground conditions dominated by hard limestone.
Client Requirements
The client owned multiple 20–40 ton excavators and needed matched breakers of various sizes with strong impact power and low failure rates. Besides, the contractor required full technical parameter support from the supplier to arrange construction schedules efficiently on site.
YG Solution
YG recommended two Top Type rock hammer machine models for the client: YGB1400, compatible with 20–24 ton diggers for medium-hard rock layers, and YGB1650, suitable for 33–38 ton excavators for heavy-duty breaking work. Both models feature reinforced housings and high-wear chisels to extend service life under hard rock working conditions.
Project Process
The client found YG’s official website via Google Search and sent an inquiry after reviewing the detailed specs of Top Type breakers. YG assigned a dedicated salesperson to follow up, issuing model selection suggestions and formal quotations based on the client’s excavator models and rock type. The client compared YG with two other suppliers. YG stood out with completely transparent technical data and fast response speed. Finally, the customer ordered 8 units of YGB1400 and 4 units of YGB1650, 12 rock hammer machine units in total.
Operation Results
The equipment ran steadily on limestone strata. A single YGB1650 could break 6–8 cubic meters of rock per hour. Up to now, all 12 units have accumulated over 4,000 working hours with an overall low failure rate. The client stated that product performance matched expectations and will choose YG again for future new projects.
Factors Affecting the Excavator Breaker Price
As shown in the above two cases, the excavator breaker price is determined by multiple factors. First, model and specification: ranging from the 85kg YGB100 to the 7200kg YGB6500, larger units with stronger impact force come with higher prices.Second, technical type: Top Type and Box Type differ in internal structure and raw material cost.Third, order quantity: bulk orders usually enjoy a lower unit price. In addition, matching packages of wearing parts, such as chisels, will also change the final excavator breaker price.
Hydraulic Hammer Machine Supplier – YG
If you are looking for a reliable hydraulic hammer machine supplier for construction projects in Saudi Arabia or the broader Middle East, feel free to contact the YG team. Kindly share your excavator model, primary working conditions, and breaking requirements. We will match you with suitable Top Type or silent Box Type breakers and send detailed excavator breaker price quotations. Whether small or bulk orders, YG consistently provides dependable products and full professional after-sales technical support.
