In the construction of large-area concrete floors such as modern industrial workshops, large shopping malls, and underground parking garages, the laser screed machine has become core equipment to boost construction efficiency and floor quality. Equipped with a high-precision Swiss Leica laser system, powerful vibration force, and flexible structural design, the YG laser concrete screed machine perfectly solves common drawbacks of traditional construction, including poor flatness, low efficiency, and easy cracking. It can achieve millimeter-level leveling effect for both complex indoor environments and super-large outdoor construction sites. As a professional supplier of concrete laser screed for sale, YG Machinery provides customized equipment for various construction scenarios, making super-flat floor construction more efficient and hassle-free.【WhatsApp/WeChat/Phone】+86 13837122632
Hot-Selling Concrete Laser Screed for Sale Specifications
| YG-CL300 | |
| Engine model | Briggs & Stratton 38E3/LONCIN/Honda 690 (optional) |
| Engine type | Gasoline, air-cooled 4-stroke, twin-cylinder engine |
| Engine power | 22KW/30ps |
| Fuel capacity | 20L (operation time is about 8 hours |
| Hydraulic oil capacity | 37L |
| Laser transmitter | Swiss Leica/Tower transmitter (optional) |
| Laser receiver | Swiss Leica/Tower receiver (optional) |
| Laser system control effect | Plane, slope, double slope (three-dimensional) |
| Laser system control method | Microcomputer laser scanning |
| Paving method | Hydraulic stirring cage paving |
| Vibration method/excitation force | Hydraulic vibration/2000N |
| Vibration plate width | 2500mm |
| Leveling thickness | 50-300mm |
| Travel drive | Reducer motor integrated |
| Travel speed | 0-4Km/h (speed adjustable) |
| Travel tire | Solid anti-skid and anti-puncture tires (optional wide tires) |
| Body size | 3250x2850x1320mm |
| Body weight | 900Kg |
| YG-ZP40 | |
| Engine brand model | Yanmar 4TNV98L |
| Type | Diesel |
| Power | 63.9KW/86hp |
| Fuel tank volume | 140L |
| Hydraulic oil volume | 200L |
| Hydraulic system | Danfoss |
| Laser transmitter | American Tempo |
| Laser receiver | German Mopar |
| Laser system control effect | Flat, inclined or double slope (3D) |
| Laser system control method | Microcomputer laser scanning |
| Trapping method | Hydraulic Cage Paving |
| Auger power | Hydraulic motor |
| Advantages of Jiaobanlong | Flip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durable |
| Reach length | 6000mm |
| Vibrating plate width | 4000mm |
| Leveling thickness | 100-500mm |
| Walking weight/working speed | 4-8km/h 24m2/min |
| Walking drive form | Hydraulic four-wheel drive Outrigger |
| Steering method | One-touch four-leg self-leveling |
| Walking tires | Front wheel + four wheels + crab walk |
| Cleaning machine flow | 15L/min |
| Body size | 5495x4555x2630mm |
| Weight | 8500 kgs |
Traditional Screed Leveling vs. Laser Screed Machine
Traditional manual screed leveling relies heavily on workers’ experience, featuring high labor intensity, large flatness errors, and insufficient concrete compactness. It takes 2 days to finish 1000 square meters of floor, and the finished floor is prone to sanding and cracking. By contrast, the YG laser screed machine (take YG-CL300A as an example) adopts laser reference plane control and conducts dynamic calibration 10 times per second to reach millimeter-level leveling accuracy, raising concrete compactness by over 20%. It only needs 4 hours to complete the same construction area, with efficiency 3 times that of traditional methods. Besides, the laser concrete screed machine integrates spreading, vibrating, and leveling functions to finish construction in one go, reducing construction joints, avoiding floor hollowing and peeling, and greatly cutting later maintenance costs.
What Performance Features Does the YG Concrete Laser Screed for Sale Have?
- Millimeter-level precise leveling: Fitted with a high-precision Swiss Leica/Tuowei laser system and automatic microcomputer control, it keeps flatness error within ±2mm~±3mm, leaving no water pooling on floors and ensuring high one-time acceptance rate.
- High efficiency and wide coverage: YG-CL300A has a 3000mm wide leveling plate, and its telescopic arm model reaches a 6-meter working radius. It finishes 1000 square meters of floor in only 4 hours with 3 times higher efficiency than traditional work, and can cover 2500–3500 square meters per working shift.
- Powerful vibration for high compactness: The hydraulic vibrator delivers 2000N vibration force at 4000 vibrations per minute, fully discharging internal air bubbles, increasing concrete compactness by 20%, and fundamentally preventing sanding, cracking, and hollowing.
- High automation to save labor: Fully automatic leveling operation needs no manual elevation adjustment, cutting 2–3 plasterers per project, saving over 100,000 RMB in annual labor costs, and lowering working intensity.
- Stable and durable for harsh working conditions: Adopts imported Briggs & Stratton/Yanmar engine and integrated reducer, with sturdy frame, wear-resistant scrapers and augers, low failure rate, and support for long-time continuous operation.
- Flexible 3D slope control: Supports flat surface, single-slope, and double-slope 3D adjustment, accurately realizing 0.5%–3% drainage slope to fit complex terrains of garages, workshops, and plazas.
- Compact body with strong site adaptability: Medium and small ride-on models have a body height of 1320–1650mm, equipped with solid anti-slip and anti-puncture tires and flexible steering, ideal for height-limited and column-dense underground parking garages.
- Integrated spreading, vibrating, and leveling: Combined scraper, vibrator, and leveling plate complete leveling, smoothing, and compaction in one process, reducing construction joints and improving floor integrity and wear resistance.
What Are FF/FL Values of Super-Flat Floors? How Does the YG Laser Screed Machine Control Elevation Accurately?
FF (Floor Flatness) and FL (Floor Levelness) are internationally accepted floor quality standards. A higher FF value means a smaller floor undulation, and a higher FL value means a smaller horizontal deviation. YG concrete laser screed for sale uses separately arranged laser transmitters to emit rotating laser beams. Receivers collect real-time signals and feed back deviation data, then the control system drives hydraulic actuators to adjust the height of leveling heads to realize closed-loop control. Supported by Swiss Leica laser system and 10 times elevation calibration per second, its finished floor FF/FL values are far above industry standards, completely eliminating water accumulation and achieving a 100% one-time acceptance pass rate.
How Does the YG Laser Concrete Screed Machine Prevent Large-Area Concrete Sanding and Cracking?
Insufficient vibration compaction and excessive water loss are the main causes of concrete sanding and cracking. Equipped with a 2000N hydraulic vibrator running at 4000 vibrations per minute, YG concrete laser leveling machine effectively expels air bubbles inside concrete and fully compact aggregates to raise concrete strength by over 20%. The built-in leveling plate ensures even vibration without missing local areas. Combined with concrete hardener curing measures, it reduces water loss by 93% and solves sanding and cracking problems fundamentally. As a professional concrete laser leveling machine manufacturer, YG Machinery optimizes vibration parameters according to different concrete slump degrees to suit low-slump concrete and fiber concrete construction.
Height Limit and Dense Columns in Underground Garage Construction? Medium & Small Ride-On Laser Screed Machine Offers Perfect Solutions
Underground garage construction is often restricted by low clear height (usually below 2.2 meters) and dense columns, making large traditional machines hard to operate flexibly. YG-CL300/CL300A medium and small ride-on laser screed machines have a body height of only 1320-1650mm, fitted with solid anti-slip tires and flexible steering system to move freely in narrow passages and between columns. Its hydraulic mixing cage spreading mode saves 74% formwork usage with no need for side formwork assembly and removal. Equipped with crab walking mode, it easily adapts to complex layouts and boosts construction efficiency 5 times higher than manual work, being the top choice for underground garage floor projects.
How to Handle Joints and Slopes Perfectly with Concrete Laser Leveling Machine in Large-Scale Outdoor Plaza Construction?

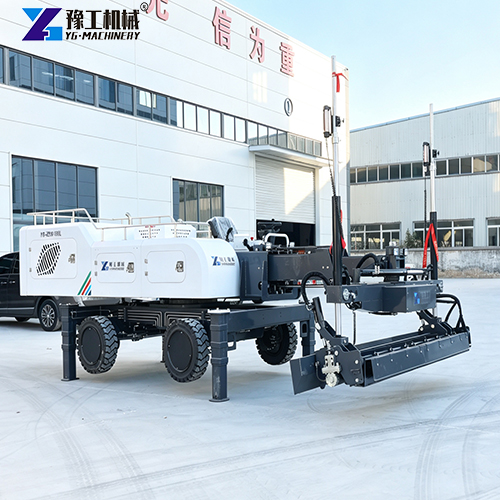

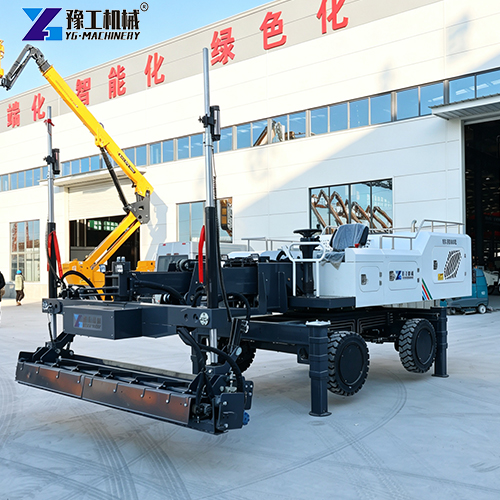

Outdoor plaza construction faces difficulties in excessive construction joints and difficult slope control. YG telescopic arm concrete laser screed for sale (YG-ZP30/ZP40) features a 6-meter telescopic arm with a single working width of 3 to 4 meters, cutting construction joints by 80%. It supports automatic slope adjustment to achieve precise 0.5%-3% drainage slope, and matches the 3D special-shaped ground processing system to fit plazas of various shapes. During construction, alternate bay pouring and expansion joint cutting technologies together with uniform vibration by laser leveling machines guarantee overall floor performance and avoid cracking caused by thermal expansion and contraction, making plaza floors beautiful and long-lasting.
Contact Us
If you are looking for efficient and precise concrete laser screed for sale solutions or need customized laser concrete screed machine for specific construction scenarios, feel free to contact YG Machinery. We provide free construction plan design, equipment operation training, and lifelong after-sales service to make your floor construction easier and more efficient!
