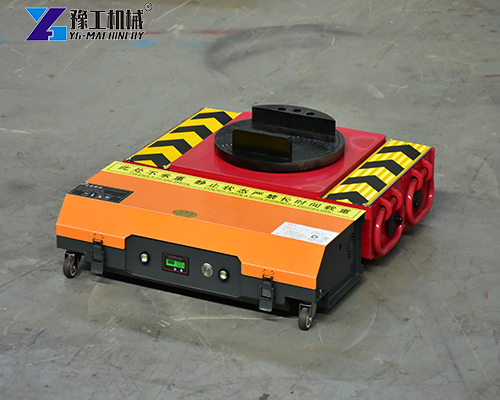

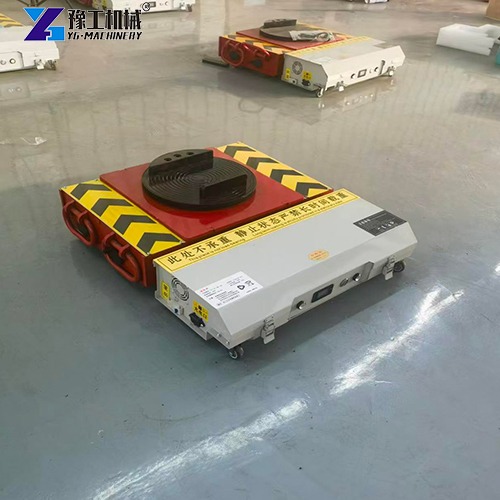

With the ongoing global upgrade of manufacturing equipment and the rising demand for factory relocations, the 30 ton electric machinery skate is becoming the core equipment in the mid-to-large equipment moving market. Compared to the 20-ton model, this electric load moving skate offers upgrades in driving force, chassis thickness, and battery life. Each unit carries 15 tons, and two units working together can safely move 30-ton equipment – a perfect fit for relocating medium-to-large industrial machines like heavy machine tools, large injection molding machines, and transformers. Whether it’s repositioning equipment in precision manufacturing workshops or moving steel structures on construction sites, its wireless remote control, 360° steering, and modular synchronization are redefining the efficiency and safety of heavy load moving.
YG Electric Load Moving Skates Specifications
| Model | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Motor | 500W x2 with brake 104, flange heavy-duty gearbox | 750W x2 with brake 104, flange heavy-duty gearbox | 1000W x2 with brake 104, flange heavy-duty gearbox | 1200W x2 with brake 120, flange heavy-duty gearbox | 1500W x2 with brake 120, flange heavy-duty gearbox | 2000W x2 with brake 120, flange heavy-duty gearbox | 3000W x2 with brake 120, flange heavy-duty gearbox |
| Controller | D2T80A dual driver | D2T80A dual driver | D2T100A dual driver | D2T100A dual driver | D2T200A dual driver | D2T200A dual driver | D2T220A dual driver |
| Remote control | C7 remote | C6/C7 remote or industrial remote | C7 remote | C7 remote | C6/C7 remote or industrial remote | C7 remote or industrial remote | C7 remote or industrial remote |
| Battery | 48V 30AH ternary lithium | 48V 60AH ternary lithium or LiFePO4 | 48V 60AH ternary lithium or LiFePO4 | 48V 60AH ternary lithium or LiFePO4 | 48V 120AH ternary lithium or LiFePO4 | 48V 120AH ternary lithium or LiFePO4 | 48V 120AH ternary lithium |
| Working current | 25A | 60A | 60A | 60A | 120A | 120A | 120A |
| Charging current | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 |
| Drive wheels | 80×120×4, high-hardness fully imported polyurethane | 90×135×4, high-hardness fully imported polyurethane | 90×135×4, high-hardness fully imported polyurethane | 90×135×4, high-hardness fully imported polyurethane | 140×140×4, high-hardness fully imported polyurethane | 140×140×4, high-hardness fully imported polyurethane | 140×140×8, high-hardness fully imported polyurethane |
| Gear | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module |
| Steel plate | 10mm Q355 manganese steel | 10mm Q355 manganese steel | 12mm Q355 manganese steel | 12mm Q355 manganese steel | 16mm Q355 manganese steel | 16mm Q355 manganese steel | 16mm Q355 manganese steel |
| Towing capacity | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Load capacity | 10T | 10T | 12.5T | 15T | 20T | 25T | 30T |
| Dimensions (L×W×H) | 500×550×145mm | 670×620×165mm | 670×635×165mm | 740×640×185mm | 810×800×182mm | 810×800×182mm | 1110×800×185mm |
| Turntable flange | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter |
| Travel speed | 2-10 m/min, adjustable | ||||||
| Continuous runtime | 2- 3 h | 3- 4 h | 3- 4 h | 3- 4 h | 4- 5 h | 4- 5 h | 4- 5 h |
Why is the 30 Ton Electric Machinery Skate So Popular?
- Sweet-spot tonnage coverage: The 30-ton class covers a wide range of industrial equipment – heavy CNC machines (15-25T), large injection molding machines (10-30T), and medium transformers (20- 30 T) – which are the most common loads in factory relocations. Two battery powered machinery skates working together handle the job without needing the larger 40T or 50T models, keeping investment costs reasonable.
- Clear power upgrade: Compared to the 20T model’s 750W×2 motors, the 30T comes with a 1200W×2 dual-motor system and a 120-flange heavy-duty gearbox – delivering 60% more driving force under heavy loads, with smoother climbing and starting.
- Matching battery life: The 48V 60AH battery pack (LiFePO4 optional) runs 3-4 hours – enough for a full day’s moving work. A quick charge during lunch break tops it back to full.
- Agile and safe control: 50-meter wireless remote range lets one operator work safely from a distance; 360° in-place turning is a clear advantage in tight workshops; speed is adjustable from 2-10 m/min, allowing precise positioning at slow speed for delicate equipment.
- Modular expandability: When loads exceed 30 tons, you can add 3-4 units in sync – the system flexibly adapts to 45-ton, 60-ton, or even heavier moves, without buying a larger dedicated model.
20T vs. 30 Ton Electric Machinery Skate – How to Choose?
For customers shopping for heavy duty machine moving skates, the 20T and 30T models are the most commonly compared.
- When to choose the 20T electric load moving skates: If your equipment weighs between 10-20 tons per piece – like small-to-medium CNC machining centers, packaging machines, or light injection molding machines – the 20T model (two units working together) meets the need. Each unit carries 10 tons; the unit is more compact (670×620×165mm), better suited for tight workshops, and costs less.
- When to choose the 30 ton electric machinery skate: If your equipment weighs between 15-30 tons – like large gantry machining centers, heavy injection molding machines, medium transformers, or generator sets – the 30T model (two units working together) is the smarter choice. The 12mm manganese steel plate offers stronger load capacity, and the 1200W dual motors handle heavy starts and slopes with greater ease.
- General selection guide: Consider ① max equipment weight (including attachments); ② slope conditions along the moving path; ③ workshop aisle width and turning space; ④ budget and payback period. We recommend choosing a total system capacity of 1.2-1.5× the heaviest equipment weight, to leave a safety margin.
- Multi-unit sync option: If the equipment exceeds the capacity of a single 30T system, you can use 3-4 units together – total capacity reaches 45-60 tons, which is more flexible than buying a larger model.

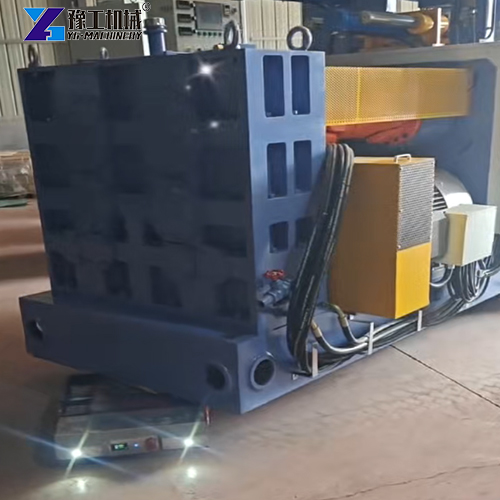

Application Cases – 30 Ton Heavy Duty Machine Moving Skates
Spanish wind power equipment factory: A Spanish wind-turbine gearbox manufacturer needed to move several 25-ton CNC vertical lathes from an old workshop to a new building. The path had an 8-degree slope, and the new concrete floor was not fully cured. The customer used four YG 30T battery powered machinery skates in a synchronized setup. All equipment was safely positioned within 3 days. The polyurethane wheels distributed pressure evenly on the fresh concrete, causing no surface damage.
French aerospace assembly workshop: An aerospace parts supplier in Toulouse, France, frequently adjusts the layout of large 5-axis machining centers to match production line configurations for different projects. Each machine weighs about 22 tons, workshop aisles are narrow, and sensitive instruments are placed nearby. The YG 30 ton electric machinery skate moves at a minimum speed of 2 m/min, with wireless remote control ensuring precise positioning. The time to reposition one machine dropped from half a day (traditional method) to just 2 hours – saving over 200 hours of adjustment time annually.
FAQs About the 30 Ton Electric Machinery Skate
How many units are needed for the 30T model?
The standard setup uses 2 units (2×15T = 30T). If your equipment weighs under 20 tons, you could consider the 20T model (2×10T) to lower costs.
What if battery life isn’t enough?
You can choose LiFePO4 batteries (longer life, safer), or keep a spare battery pack for quick swaps without interrupting work.
Can it work on rough job sites?
Yes. The imported polyurethane wheels handle concrete, asphalt, and unpaved surfaces; the 1200W dual motors provide plenty of drive, and the 3-15° slope capability suits most site conditions.
How do multiple units stay synchronized?
The industrial remote supports multi-unit sync mode – all units respond to the same command, keeping speed and direction consistent, with one operator handling everything.
How often do the drive wheels need replacing?
Under normal use, imported polyurethane wheels last 2-3 years, depending on usage frequency and floor conditions. Replacement is simple and doesn’t affect the overall structure.
What custom options are available?
We offer custom table sizes, hydraulic lifting functions, steel wheels (for extremely high-temperature environments), protective rails, and more.
