In factories, warehouses, ports, construction sites, and energy projects, moving heavy-duty equipment is far more than “shifting equipment from Point A to Point B”. Heavy items such as large machine tools, injection-molding machines, molds, transformers, generators, steel coils, prefabricated components, bridge steel structures, and extra-large pallets usually feature huge weight, complex center-of-gravity conditions, limited access space, and high positioning-accuracy requirements.
Traditional moving methods mostly rely on manual pushing-pulling, roller bars, winches, forklifts, or cranes. These methods still serve short-distance straight-line transport. Nevertheless, in narrow workshops, dense production lines, complex installation zones, or projects requiring precise positioning, they may bring challenges including high labor input, difficult turning, blocked sightlines, insufficient path control, and extended downtime.
Electric remote-controlled heavy machinery moving skates deliver a more controllable solution for floor-level transport of heavy-duty equipment. Equipped with electric drive, industrial-grade wireless remote control, brake-deceleration systems, and in-situ turning design, this equipment completes equipment transfer, direction adjustment, and low-speed precise positioning within confined spaces. It acts as an essential heavy-transport tool for equipment installation, production-line relocation, in-house logistics transfer, or large-component positioning projects.
YG Heavy Machinery Skates Specifications
| Model | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Motor | 500W x2 with brake 104, flange heavy-duty gearbox | 750W x2 with brake 104, flange heavy-duty gearbox | 1000W x2 with brake 104, flange heavy-duty gearbox | 1200W x2 with brake 120, flange heavy-duty gearbox | 1500W x2 with brake 120, flange heavy-duty gearbox | 2000W x2 with brake 120, flange heavy-duty gearbox | 3000W x2 with brake 120, flange heavy-duty gearbox |
| Controller | D2T80A dual driver | D2T80A dual driver | D2T100A dual driver | D2T100A dual driver | D2T200A dual driver | D2T200A dual driver | D2T220A dual driver |
| Remote control | C7 remote | C6/C7 remote or industrial remote | C7 remote | C7 remote | C6/C7 remote or industrial remote | C7 remote or industrial remote | C7 remote or industrial remote |
| Battery | 48V 30AH ternary lithium | 48V 60AH ternary lithium or LiFePO4 | 48V 60AH ternary lithium or LiFePO4 | 48V 60AH ternary lithium or LiFePO4 | 48V 120AH ternary lithium or LiFePO4 | 48V 120AH ternary lithium or LiFePO4 | 48V 120AH ternary lithium |
| Working current | 25A | 60A | 60A | 60A | 120A | 120A | 120A |
| Charging current | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 |
| Drive wheels | 80×120×4, high-hardness fully imported polyurethane | 90×135×4, high-hardness fully imported polyurethane | 90×135×4, high-hardness fully imported polyurethane | 90×135×4, high-hardness fully imported polyurethane | 140×140×4, high-hardness fully imported polyurethane | 140×140×4, high-hardness fully imported polyurethane | 140×140×8, high-hardness fully imported polyurethane |
| Gear | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module | Luomeng Titanium high-strength gear, 3-module |
| Steel plate | 10mm Q355 manganese steel | 10mm Q355 manganese steel | 12mm Q355 manganese steel | 12mm Q355 manganese steel | 16mm Q355 manganese steel | 16mm Q355 manganese steel | 16mm Q355 manganese steel |
| Towing capacity | 10T | 20T | 25T | 30T | 40T | 50T | 60T |
| Load capacity | 10T | 10T | 12.5T | 15T | 20T | 25T | 30T |
| Dimensions (L×W×H) | 500×550×145mm | 670×620×165mm | 670×635×165mm | 740×640×185mm | 810×800×182mm | 810×800×182mm | 1110×800×185mm |
| Turntable flange | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter | 2900mm diameter |
| Travel speed | 2-10 m/min, adjustable | ||||||
| Continuous runtime | 2- 3 h | 3- 4 h | 3- 4 h | 3- 4 h | 4- 5 h | 4- 5 h | 4- 5 h |

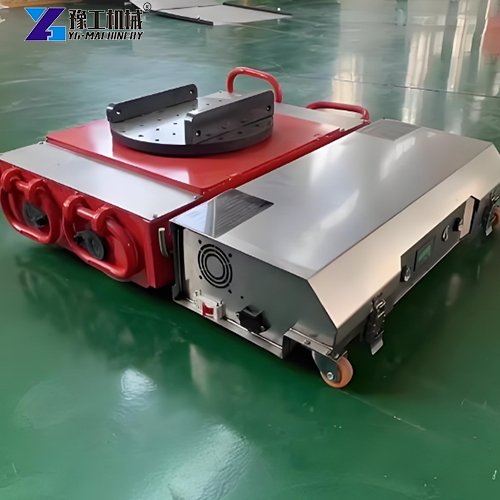

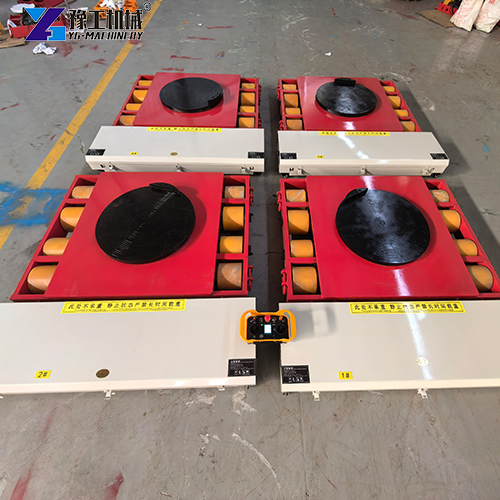

What Are Electric Heavy Machinery Moving Skates?
Electric heavy machinery moving skates are powered moving tools built to carry, tow, and shift heavy industrial equipment over short distances. Battery-powered drive wheels, brake-deceleration assemblies, and industrial-grade wireless remotes enable forward travel, reverse travel, turning, and low-speed accurate positioning of heavy loads.
Unlike conventional manual moving trolleys that need manual pushing-pulling, forklifts, winches, or external traction gear, electric remote-controlled models integrate driving and control functions into the unit itself. Within an effective remote-control range of roughly 50 meters, operators can manage machine movement from better viewing positions. This cuts the need to stand close to moving loads or potential pinch-point zones.
An independent-wheel-drive layout delivers 360° in-situ turning and zero-turn-radius handling. It fits narrow workshops, production lines, warehouse aisles, and equipment-installation areas. YG standard units cover 10T through 60T. Multiple units can also run in wireless synchronized coordination for over-length, over-width, irregular-shaped, or higher-tonnage heavy-haul assignments.
Why Choose Electric Heavy Machinery Moving Skates?
Electric remote-controlled heavy machinery skates combine wireless control, electric drive, in-situ turning, and multi-unit synchronization capabilities. They bring greater operational flexibility for industrial moving, equipment installation, and heavy-load logistics.

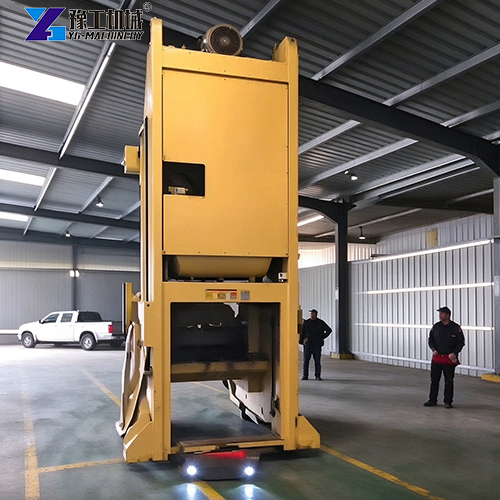

Wireless remote-control operation for safer single-operator work
Fitted with industrial-grade wireless remotes offering up to 50 meters of effective control distance. Operators observe the unit, travel path and surrounding environment from positions with clearer sightlines and improved safety, instead of staying right beside heavy loads or near potential pinch points.
Remote-control operation improves sightlines and handling convenience when units pass narrow aisles, go around fixed installations, enter installation zones, or follow complex routes. Instead of several workers manually pushing and pulling around the load, one operator monitors overall movement and adjusts travel direction plus speed as needed.
Wireless remote control does NOT replace on-site supervision, risk assessment, area isolation, operator training, or project safety procedures. Still, it keeps personnel from unnecessary exposure to moving loads and supplies more sensible operating positions for heavy-load transfers.
Heavy-load capacity from 10T to 60T, expandable for larger projects
YG standard product range includes 10T, 20T, 25T, 30T, 40T, 50T and 60T versions, satisfying moving requirements for different load weights and site environments.
For heavier, longer, wider, or irregular-shaped payloads, several skates can work together via wireless synchronization. Subject to load distribution, support-point layout, ground conditions, and project plans, combined multi-unit setups handle heavy-haul tasks of 60-100 tons and above.
When selecting equipment, clearly distinguish between “traction capacity” and “load-bearing capacity”. Traction capacity means the unit’s ability to pull payloads under suitable working conditions. Load-bearing capacity stands for its rated static capacity when directly supporting heavy objects. Unit selection cannot rely merely on total weight; you must also evaluate center-of-gravity, support points, rolling resistance, gradient, ground bearing capacity, and multi-machine-sync requirements.

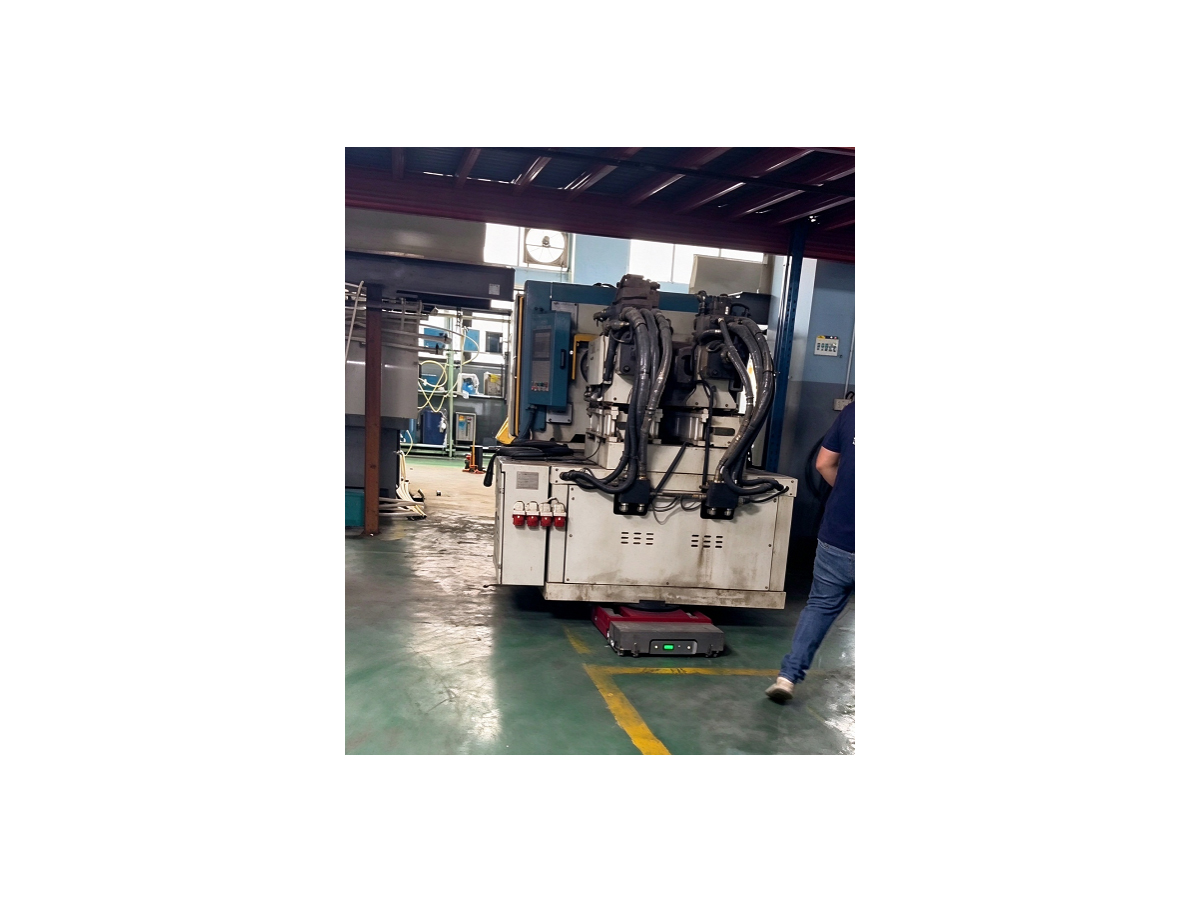

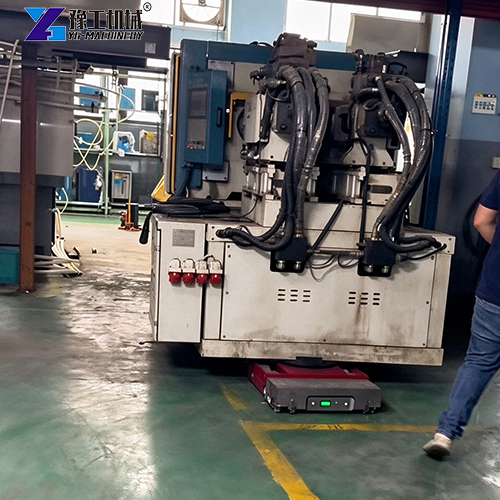

360-degree in-situ turning for tight and complex workspaces
Independent-wheel-drive construction achieves 360° in-place rotation with zero turning radius. Operators change travel direction without backing up. This suits narrow workshops, busy production lines, restricted aisles, and equipment-installation spots.
Traditional forklifts, winch-pulled trolleys, and manual roller sets demand extra turning room. They often require repeated reversing and repositioning in compact sites, wasting time and raising collision risks. Electric heavy machinery skates rotate on-the-spot and shift orientation without large-space turning paths.
For example, during final installation of large machine tools, transformers, or production machinery, equipment may need side-entry or diagonal entry onto foundation beds. In-situ turning lets crews re-orient payloads flexibly inside limited working space.

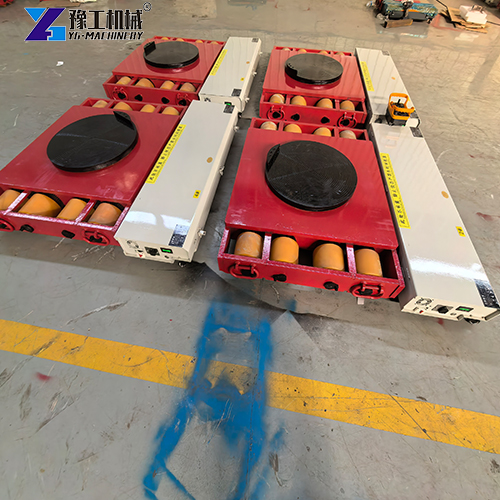

Modular multi-unit linking for over-length, over-width and irregular payloads
Multiple skates run in wireless sync and get grouped per payload dimensions, structure and project goals. The modular design supports multi-point support and coordinated transport for complex heavy objects too unstable for a single moving unit.
Typical loads handled by synchronized multi-skate setups:
- Long machine-tool bases and production-line modules
- Large molds and tooling assemblies
- Transformers, generators and power-system machinery
- Steel-structure and bridge components
- Oversized industrial skid-mounted modules
- Ship-building hull blocks
- Large precision aerospace assemblies
- Wide equipment assemblies with asymmetric center-of-gravity
For equipment that cannot be split for transport, multiple machine moving skates pair with auxiliary wheels at pre-planned support points. This adapts to equipment length, width, center-of-gravity, and bottom-frame geometry. Final configurations shall be confirmed by project technical staff reviewing force distribution, support layout, and synchronous-control demands.
Adjustable travel speed for controlled high-precision positioning
Travel speed adjusts within 2-10 meters per minute. For equipment installation, production-line reconfiguration, and high-value-asset positioning, slow, steady, controllable movement matters more than pure transport speed.
As large machine tools, injection-molding machines, transformers, generators, or precision equipment near foundations, equipment interfaces, floor layout marks, or installation stations, operators need adequate reaction time for fine adjustments and safety checks. Adjustable speed maintains superior control accuracy approaching final resting positions.
Within warehouses, logistics yards and port facilities, variable-speed travel also supports short-haul transfers connecting receiving zones, staging areas, production-line interfaces, loading-bays and installation zones.

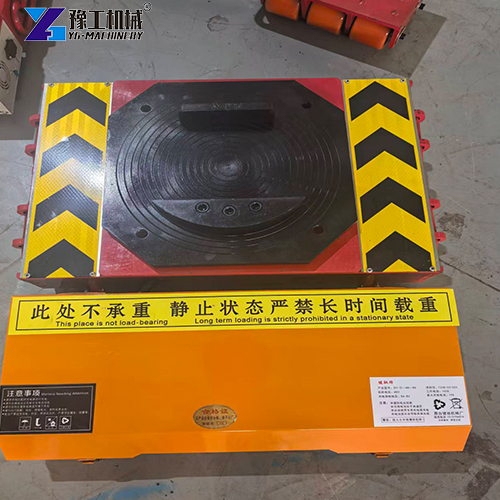

Heavy-duty steel build, brake gearboxes and polyurethane drive wheels
Units adopt Q355 manganese-steel plate, high-strength gears, reinforced-flange brake-deceleration gearboxes and high-hardness imported polyurethane drive wheels. Versions for different load grades use 10 mm, 12 mm, or 16 mm Q355 manganese-steel plate construction.
Drive-wheel specifications vary by model. Lower-tonnage units use four polyurethane drive wheels; the 60T model fits eight polyurethane drive wheels to meet diverse heavy-haul demands.
These skates work across many industrial floor surfaces. They may operate on unpaved or uneven job-site ground following proper ground preparation. Actual performance still depends on payload weight, center-of-gravity, floor flatness, surface friction, slopes, ground bearing capacity, and overall project configuration.
Speak with Our Product Manager
Return on Investment for Electric Skates for Moving Heavy Objects
Calculating return-on-investment for electric skates for moving heavy objects goes beyond purchase price. Look at total cost of ownership plus risk-adjusted savings:
- Labor efficiency: Reduce a four-person moving crew down to one operator, saving three working hours per move. At 100 moves yearly, that totals 300 working hours — roughly 7.5 weeks of full-time work.
- Avoided safety-related costs: Direct plus indirect costs stemming from one manual-handling injury may hit $50 000-$150 000. Moderate risk reduction delivers substantial expected-value savings.
- Prevention of equipment damage: Load drops, floor damage, and misalignment triggered by imprecise manual handling create repair expenses systematically cut by powered moving skates.
- Accelerated schedules: Faster setup, single-operator control, and instant mobility compress project timelines and cut downtime during equipment-relocation work.
- Insurance & compliance: Remote-controlled equipment fitted with redundant safety systems positively impacts insurance-premium levels and regulatory-compliance audits.
Frequently Asked Questions about Heavy Machinery Moving Skates
Q: What equipment can heavy machinery moving skates transport?

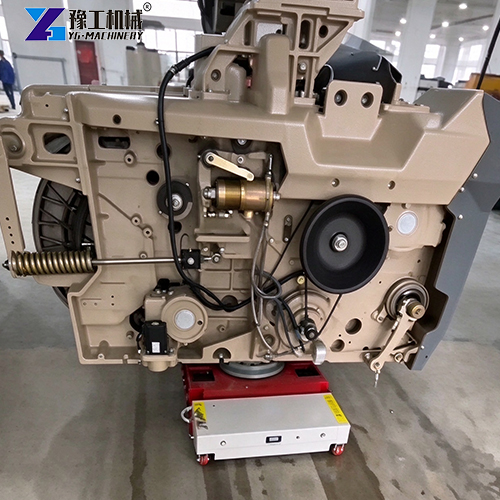

They move and position machine tools, injection-molding machines, molds, steel coils, transformers, generators, industrial modules, extra-large pallets, bridge steel structures, prefabricated components, and other heavy-duty machinery or components.
Q: Are heavy machinery skates suitable for narrow workshops?
Yes. Independent-wheel-drive construction enables 360° in-situ turning plus zero-turn-radius operation. Direction changes happen without reversing. They fit narrow workshops, production-line zones, confined aisles, and equipment-installation locations.
Q: What is the load-bearing capacity of heavy machinery skates?
Standard models cover 10T, 20T, 25T, 30T, 40T, 50T, and 60T. Synchronized wireless multi-unit groups serve projects above 60-100 tons. Final setups require verification against load distribution, ground conditions, travel routes, and engineering assessment.
Q: Can they work on ramps or uneven ground?
The system works on slopes of approximately 3-15 degrees. Real-world performance depends on payload weight, ground status, and project configuration. Unpaved or uneven sites call for proper ground preparation to confirm fitness of your final setup.
Q: How do I select suitable heavy machinery skates?
Evaluate total equipment weight, center-of-gravity, support-point loading, traction requirements, ground strength, gradients, turning clearance, operating hours, and whether multi-unit synchronization is required. For complex projects, confirm final model selection and configuration with your equipment manufacturer.
Pick the Right Partner — YG
Not all electric heavy machinery moving skates deliver equal quality. When you assess suppliers, prioritize these points:
- Verified load-bearing ratings: Values backed by engineering calculations, not over-optimized marketing figures
- Mature control-system performance: Proportional speed control, synchronized turning, redundant safety-protection systems
- Service & support: Accessible technical assistance, spare-parts availability and responsive warranty support
- Application-engineering competence: A supplier ready to analyze your unique payload, ground-surface and material-handling requirements
At YG, we manufacture electric remote-controlled moving skates built for heavy-industry applications. Our systems merge German-inspired drive technology with operator-focused control design — supplying the safety, positioning precision, and reliability demanded by plant managers, project contractors, and logistics specialists.
Reach out to our application-engineering team to discuss your specific heavy-equipment-moving requirements. Get customized configuration recommendations tailored for your payloads, site ground-surface conditions, and operational workflows.
