In the metal surface treatment industry, the shot blasting room has become essential core equipment. Whether for shipbuilding, bridge construction, engineering machinery, or petrochemical sectors, a high-efficiency and eco-friendly shot blasting room can greatly raise the efficiency and finish quality of workpiece surface treatment. If you are looking for a sand blasting booth for sale with stable performance and adjustable parameters, learning fully about its working principle, core advantages, and selection tips will help you make a wise investment.
Sand Blasting Booth for Sale: Parameters
| Size of Blasting Room | Size of workpieces | Blasting Gun Qty |
| 6000×6000×5000mm | 3000×3000×2500mm | 2 |
| 6000×6000×6000mm | 3000×3000×3500mm | 2 |
| 8000×6000×5000mm | 5000×3000×2500mm | 2 |
| 8000×6000×6000mm | 5000×3000×3500mm | 2 |
| 10000×6000×6000mm | 7000×3000×3500mm | 2 |
| 15000×6000×6000mm | 12000×3000×3500mm | 2 |
| 15000×8000×6000mm | 12000×5000×3500mm | 2 |
| 18000×8000×6000mm | 15000×5000×3500mm | 4 |
| 18000×10000×8000mm | 15000×7000×5500mm | 4 |

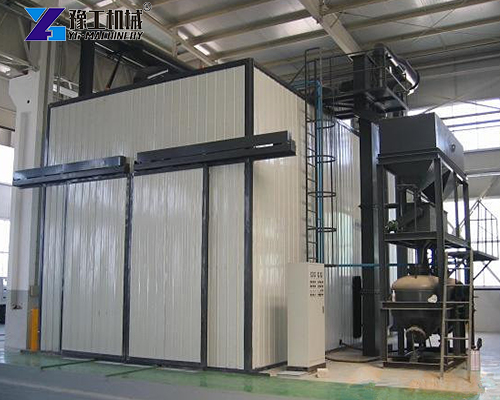

How Does a Shot Blasting Room Work?
The working logic of the shot blasting chamber is simple, yet its integrated internal systems are highly precise. To put it simply, operators stay inside a sealed cabin and use compressed air to blast abrasives like steel shot and steel grit onto workpiece surfaces at high speed. The impact force of abrasive strips rust, mill scale, welding slag, and other attachments off parts.

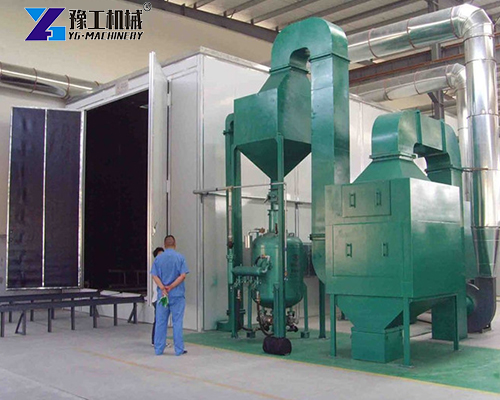

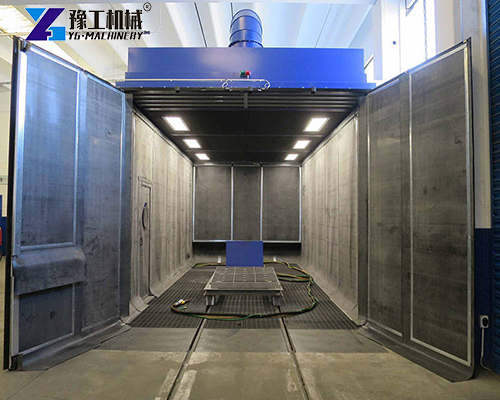

A complete shot blasting room is made up of seven key units: control system, lighting system, dust removal system, blasting cabin, workpiece conveying system, blasting system, and abrasive recycling system. After blasting, the used abrasives mixed with the removed dirt fall onto the grating floor at the bottom. Screw or scraper conveyors send them to lifting machines, then a separator separates reusable abrasives from dust through air sorting. Clean abrasives are recycled for repeated use, while dust passes through the dust removal system and is discharged up to environmental standards. This closed-loop workflow guarantees continuous blasting operation and eco-friendly performance.
What Are the Advantages of Using a Shot Blasting Chamber?
Compared with traditional manual grinding or open-air blasting, a professional shot blasting chamber brings many obvious benefits:
- Much higher efficiency: Compressed air pushes abrasives to a speed of 50–60 meters per second, creating a strong and even impact that removes rust far faster than hand grinding. For mass-produced steel components, blasting booths finish surface work within minutes that would take hours manually.
- Stable and controllable surface finish: Adjust machine parameters to get consistent surface roughness and cleanliness, creating a perfect base for later painting, electroplating and other processes.
- Meets environmental standards: The fully closed structure plus high-performance dust stop system prevents dust leakage, protects operator health, and complies with stricter and stricter emission rules.
- Recyclable abrasives cut running costs: The abrasive recovery system lets steel shot and other supplies be reused many times, greatly lowering abrasive consumption and daily operation expenses.

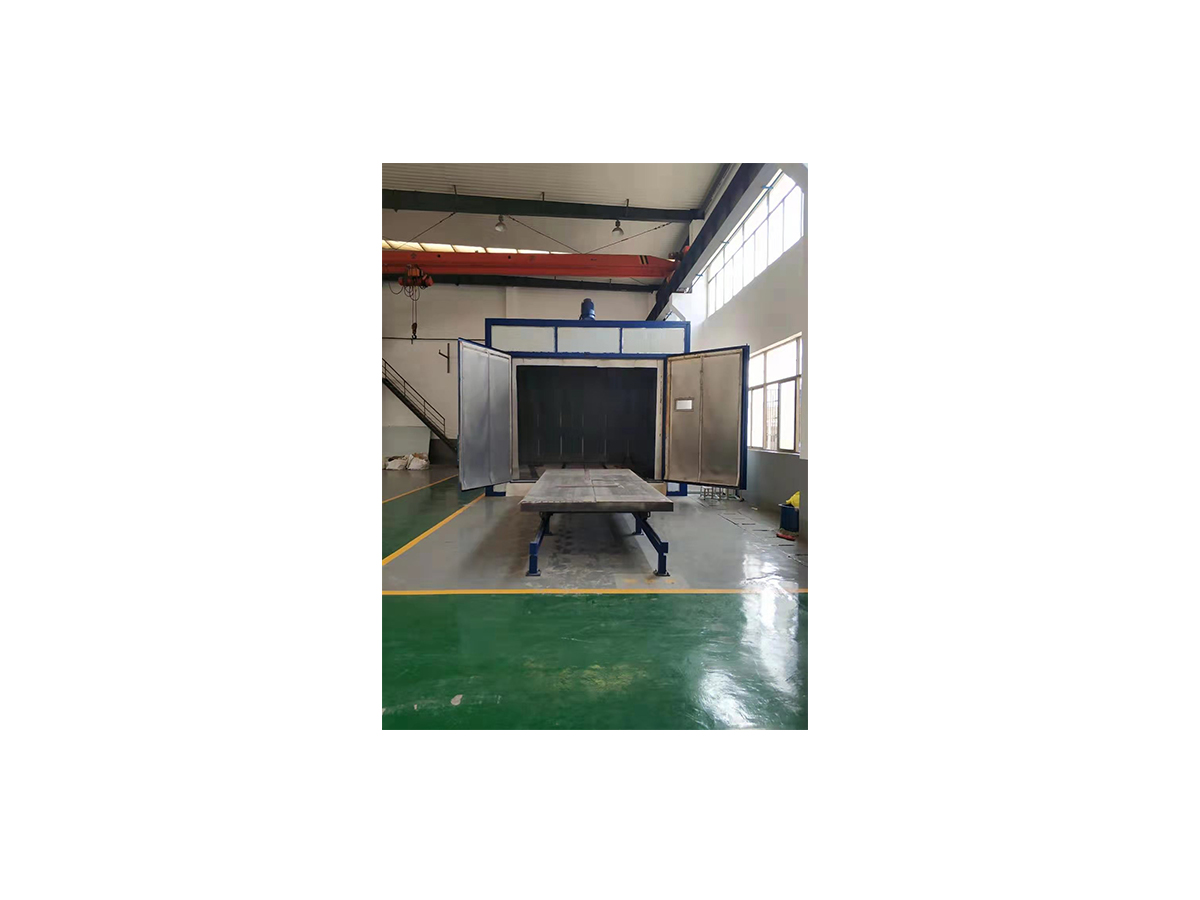

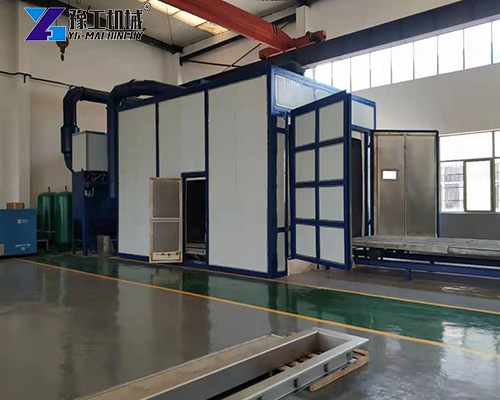

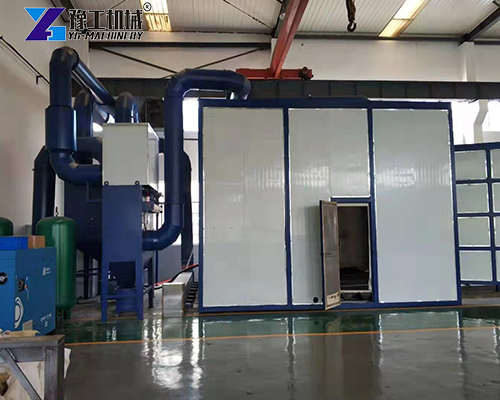

What Strengths Does the YG Sand Blasting Booth for Sale Have?
Among all similar products, the YG brand sand blasting booth for sale stands out with the following strengths: Uniform and high-efficiency blasting effect: YG shot blasting room delivers even steel shot coverage to quickly clear rust, mill scale, and other dirt. It outperforms manual grinding and works for workpieces of all sizes. Smart dust removal control system: Fitted with two-stage dust purification equipment, the cabin uses negative pressure to stop dust from leaking out. Treated exhaust gas meets global environmental standards, ideal for regions and industries with strict pollution limits. High-efficiency abrasive recovery: High recycling rate cuts abrasive waste and material costs, saving enterprises a large amount of money in long-term operation.Fast modular installation: Factory pre-made parts make on-site setup quick and easy, and the whole unit can be taken apart and moved freely. This is especially useful for factories that need to shift production lines or for temporary projects. Complete safety protection: Equipped with viewing windows, emergency stop buttons, and other safety parts. The operation area is physically separated from the blasting cabin to fully protect workers. Wide compatibility for workpieces: Handles all types of metal workpieces. When matched with hanging blast machines, it can process extra-long parts to satisfy diverse production demands. Precisely adjustable parameters: Operate the touch screen to change blasting speed, processing time, and other settings, achieving ideal treatment results for workpieces of different materials.

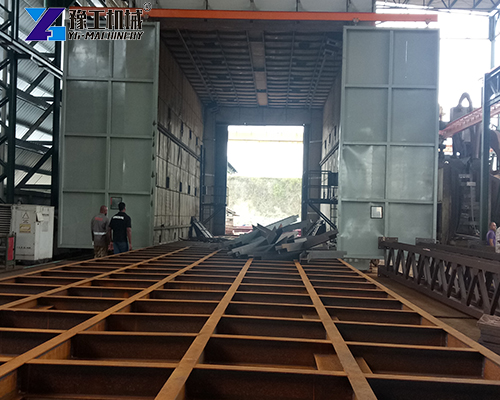

Application Range of Blast Room for Sale
The shot blasting chamber has extremely wide applications, covering almost all industries requiring metal surface treatment:
- Shipbuilding: Rust removal and pre-treatment for hull steel plates and bulkhead structural parts
- Bridges & steel structures: Surface cleaning and anti-corrosion preparation for large steel beams and trusses
- Engineering machinery: Blasting strengthening for excavator arms, buckets, and structural components
- Petrochemical industry: Internal and external surface treatment for pipelines, pressure vessels, and storage tanks
- Rail & vehicles: Surface cleaning for locomotive carriages, truck chassis, and trailer parts
- Military & aerospace: Surface finishing for high-precision structural components
YG machines can offer matched solutions for both small parts and oversized structural pieces up to 15 meters long.
How to Pick the Right Sand Blasting Booth for Sale?
We suggest you consider these factors comprehensively: Workpiece size: Choose a blasting booth with proper dimensions based on the length, width, and height of your largest workpiece, so parts can be moved in and out smoothly with enough operating space. Production output: The number of blasting guns directly affects working capacity. Models with 4 blasting guns are recommended for mass production. Environmental requirements: If your local area has strict pollution standards, give priority to equipment fitted with high-efficiency dust removal systems.Site conditions: Modular blasting booths have low site requirements and fast installation, perfect for renovation projects of existing workshops.
Contact YG for Custom Professional Solutions
If you are searching for a sand blasting booth for sale with excellent performance and flexible parameters, the YG team is ready to provide professional selection advice and full technical support. Whether you process 3-meter small components or 15-meter super-large structural pieces, YG can provide customized shot blasting room solutions according to your unique production needs.
Feel free to contact YG to get detailed product brochures, technical parameters, and quotations. Our engineers will recommend the most suitable model for you, helping you improve surface treatment efficiency and cut operation costs. Choose YG, choose reliable and high-efficiency blasting equipment!
