When your embroidery business shifts from “custom single-piece orders” to “bulk deliveries”, production capacity bottlenecks will immediately hold you back. Single-head machines are too slow, while four-head machines cost too much and take up excessive floor space. The three head embroidery machine hits the perfect sweet spot: three heads operate simultaneously, delivering three times the output of a single-head machine, yet occupying less than 30% more floor space than a two-head model. Take the YG-1203CT as an example. Its fully packed dimensions measure only 2.07×1.12×0.98 meters, roughly the size of a household refrigerator. Whether you run a garment factory needing fast turnaround for group orders or an embroidery studio looking to scale up output, a 3 head embroidery machine lets you maximize production gains without sacrificing too much workspace.
Parameters of Three Head Industrial Embroidery Machine for Sale

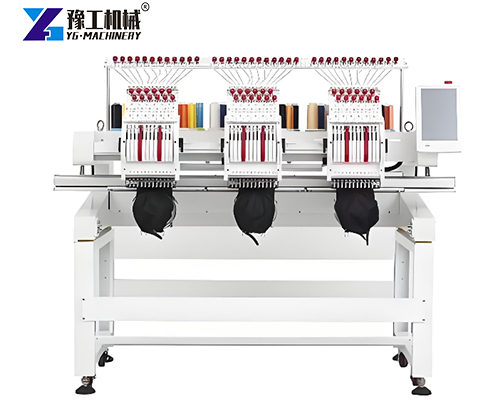

Below are the specifications of the YG-1203CT:
| Model | Needle Count | Number of Heads | Working Area | Max Speed | Control System | Packing Size | Gross Weight |
| YG-1203CT | 9/12/15 needles | 3 heads | 400×450mm | 1000 RPM | Dahao A15 | 2.07×1.12×0.98m | 690KG |

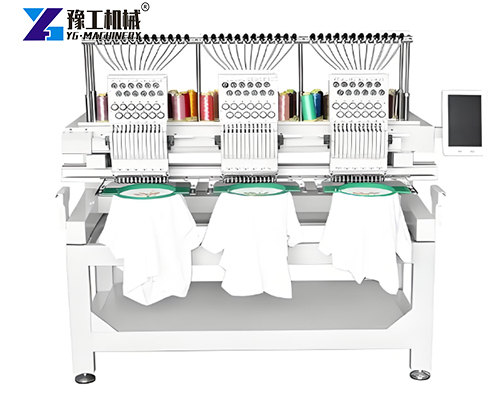

This three head embroidery machine supports 9, 12, or 15 needles per head, with a single working area of 400×450mm. All three heads can embroider three finished items at the same time — T-shirts, caps, backpacks, and towels — with zero mutual interference. The machine weighs 690 kilograms in total, and its sturdy frame guarantees stable high-speed operation. It comes fitted with the Dahao A15 electronic control system, paired with a 10-inch color LCD touchscreen boasting a 1280×800 resolution. The system supports 16 operation languages for worldwide use.
Why Is the Three Head Embroidery Machine the Golden Balance Between Space Utilization and Production Capacity?
Many buyers ask: Why not just buy a four-head embroidery machine? The answer lies in the mathematical trade-off between space and output. A four-head embroidery machine usually spans over 2.5 meters in width, while a three-head model is only 2.07 meters wide. That 0.5-meter gap determines whether the machine can fit through standard factory doorways and leave enough operating aisles inside compact studios. A three-head unit delivers 75% of a four-head machine’s output with just 75% of its width, whereas a four-head machine requires the full 100% width to hit full production capacity. For most small and medium embroidery studios, three-head machines strike the ideal balance: enough output to handle bulk orders, and dimensions that fit existing premises perfectly.
More importantly, a three-head computerized industrial embroidery machine achieves the highest output efficiency per square meter (production output divided by floor area) among all multi-head embroidery machines. Simply put, it churns out the maximum number of finished products per square meter of space — this is exactly what the “golden balance point” means.
Who Is the Three Head Embroidery Machine Suitable For?
The three head industrial embroidery machine for sale mainly caters to three types of customers:
- Garment manufacturers and OEM factories. When fulfilling bulk group custom orders such as school uniforms, workwear, and team sportswear, this machine can finish embroidery for 120 to 150 pieces within an 8-hour shift. Its efficiency far outperforms single-head equipment and easily meets delivery deadlines for medium-volume orders.
- Embroidery studios and apparel brands. If your in-house brand clothing, bags, and caps need batch branding or decorative stitching, this machine lets you keep all embroidery work in-house instead of outsourcing. You gain full control over product quality, delivery schedules, and overall costs.
- E-commerce sellers and live-stream sales teams. Custom merchandise is a high-profit category for online retail. The three-head machine enables fast production and quick shipping upon receiving orders, turning custom embroidery from a premium service into a standardized, agile production capability.
Master These Three Core Components, and You’ll Understand 80% of Any Three Head Embroidery Machine
When shopping for a 3 head embroidery machine, don’t feel intimidated by complex spec sheets. Judging the machine’s real performance only requires checking the following three key components.
- Computerized Control System (Electronic Controller) — the “brain” of the embroidery machine. The YG-1203CT adopts the industry-leading Dahao A15 control system. It supports a maximum stitch count of 5 million stitches per single pattern, with an internal storage capacity of 200 million stitches that can hold up to 500 unique embroidery designs. Patterns are imported via USB flash drive, and the system previews embroidery paths and displays real-time stitching progress. In short, the control system sets the upper limit of machine performance, and the Dahao A15 represents the top-tier option available on the market today.
- Rotary Hook — the “heart” of the embroidery machine. The rotary hook interlocks the upper thread and the bobbin thread to form stitches, executing every embroidery movement. A three-head machine runs three rotary hooks simultaneously; a fault in any single hook will ruin products from its matching head. The YG 3 head embroidery machine is equipped with heavy-duty, highly wear-resistant industrial rotary hooks, paired with precise bobbin thread tension control to ensure perfectly consistent stitch density across all three heads.
- Drive Motors (Stepper vs Servo) — the “muscles” of the embroidery machine. Stepper motors are low-cost but limited in precision, prone to lost steps during prolonged high-speed running. Servo motors cost more yet deliver faster response, superior accuracy, and a longer service life. The YG-1203CT features servo drive technology on its full X/Y axis frame, ensuring all three heads move precisely within the 400×450mm working zone, eliminating uneven stitching where one head aligns perfectly while another prints skewed patterns.
How to Extend the Service Life of Your Computerized Industrial Embroidery Machine by 5 Years
A 3 head embroidery machine is built for heavy use, but durability does not mean zero maintenance. Follow these three maintenance rules to add five extra years to your equipment’s lifespan:
- Clean the rotary hook area daily. Lint buildup is the top cause of rotary hook damage. Before closing shop each day, use an air blower or small brush to clear lint and thread scraps around all three rotary hooks, especially inside the hook cases. Accumulated lint leads to overheating, unstable bobbin tension, and degraded embroidery precision.
- Refill lubricant regularly based on stitch counts. The Dahao A15 system automatically reminds operators of oil change intervals based on accumulated stitch numbers. Do not wait for machine error alerts to lubricate — scheduled oil top-ups cost far less than emergency repairs. Only use dedicated embroidery machine oil; ordinary motor oil has incorrect viscosity and accelerates component wear.
- Inspect belt tension periodically. Loose X/Y axis drive belts cause positional shifting errors, while over-tightened belts wear down bearings rapidly. Check belt tension every three months. Press the middle of each belt with your finger; a normal deflection depth ranges from 5 to 8 millimeters.
Contact YG
Whether you are a garment factory aiming to boost output or an embroidery studio preparing to take on larger orders, the YG 3 head embroidery machine is your reliable business partner. The machine supports dual voltage 110V/60Hz and 220V/50Hz for global operation. Custom body paint colors are available per client requests. We provide comprehensive technical support and after-sales service for all complete units.
Reach out to YG to receive detailed quotations, machine demonstrations, or customized production solutions. Let a three head embroidery machine become your trusted triple-speed engine powering your business expansion.
