How much does it cost to move a 50-ton injection molding machine to a new workshop using the traditional method? Rental of two large forklifts, more than ten workers, half a day to a full day of production downtime, plus costs for re-leveling the equipment — conservatively estimated at thousands of US dollars. But with remote control machinery skates, one operator, one remote controller, and 2 to 4 electric machine moving skates can finish the whole job within two hours. No forklift rental fees, no large labor costs, no long production shutdown losses. This is why remote control machinery skates are rapidly adopted in factories worldwide: not because of fancy technology, but because they truly help businesses cut costs, save time, and reduce risks.

Click Here for a Free Quote

Heavy Machinery Moving Skates Specifications

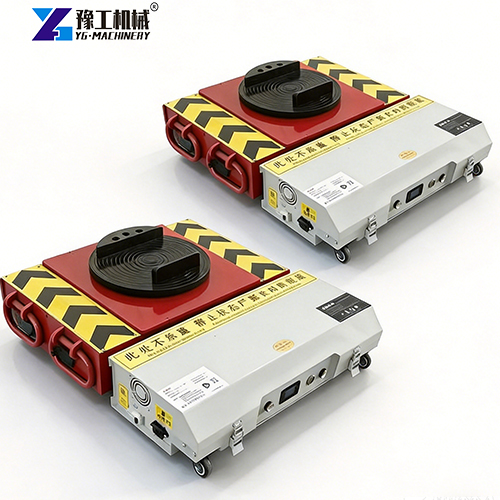

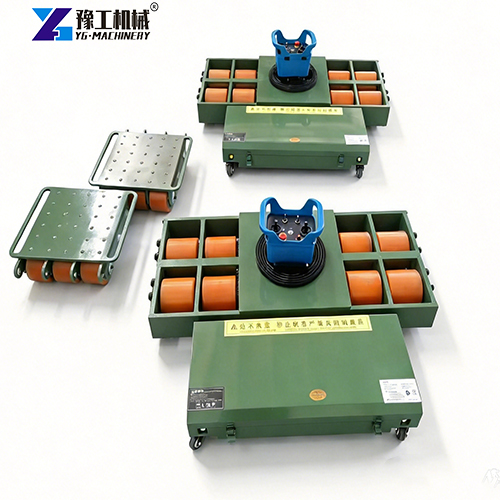

The hot-selling models at present are 20T, 30T, and 60T machine moving skates.

Model	10T	20T	25T	30T	40T	50T	60T
Motor	500W x2Brake 104Reinforced flange gearbox	750W x2Brake 104Reinforced flange gearbox	1000W x2Brake 104Reinforced flange gearbox	1200W x2Brake 120Reinforced flange gearbox	1500W x2Brake 120Reinforced flange gearbox	2000W x2Brake 120Reinforced flange gearbox	3000W x2Brake 120Reinforced flange gearbox
Controller	D2T80ADual-channel driver	D2T80ADual-channel driver	D2T100ADual-channel driver	D2T100ADual-channel driver	D2T200ADual-channel driver	D2T200ADual-channel driver	D2T220ADual-channel driver
Remote Controller	C7 remote controller	C6/C7 remote controller or industrial remote controller	C7 remote controller	C7 remote controller	C6/C7 remote controller or industrial remote controller	C7 remote controller or industrial remote controller	C7 remote controller or industrial remote controller
Battery Spec	48v 30AHTernary lithium	48V 60AHTernary lithium or LiFePO4	48V 60AHTernary lithium or LiFePO4	48V 60AHTernary lithium or LiFePO4	48V 120AHTernary lithium or LiFePO4	48V 120AHTernary lithium or LiFePO4	48V 120AHTernary lithium
Working Current	25A	60A	60A	60A	120A	120A	120A
Charging Current	54.6	54.6	54.6	54.6	54.6	54.6	54.6
Drive Wheel	80*120x4High-hardness fully imported polyurethane	90x135x4High-hardness fully imported polyurethane	90x135x4High-hardness fully imported polyurethane	90x135x4High-hardness fully imported polyurethane	140x140x4High-hardness fully imported polyurethane	140x140x4High-hardness fully imported polyurethane	140x140x8High-hardness fully imported polyurethane
Gear	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module
Steel Plate	10mmQ355 manganese steel plate	10mmQ355 manganese steel plate	12mmQ355 manganese steel plate	12mmQ355 manganese steel plate	16mmQ355 manganese steel plate	16mmQ355 manganese steel plate	16mmQ355 manganese steel plate
Towing Capacity	10T	20T	25T	30T	40T	50T	60T
Load Capacity	10T	10T	12.5T	15T	20T	25T	30T
Overall Dimension	500x550x145mm	670x620x165mm	670x635x165mm	740x640x185mm	810x800x182mm	810x800x182mm	1110x800x185mm
Disc Flange	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter
Travel Speed	Adjustable from 2-10 m/min	Adjustable from 2-10 m/min	Adjustable from 2-10 m/min	Adjustable from 2-10 m/min	Adjustable from 2-10 m/min	Adjustable from 2-10 m/min	Adjustable from 2-10 m/min
Continuous Working Time	2-3 hours	3-4 hours	3-4 hours	3-4 hours	4-5 hours	4-5 hours	4-5 hours

Ask For Details

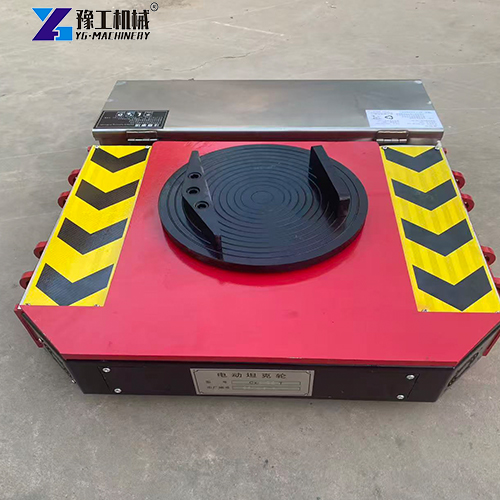

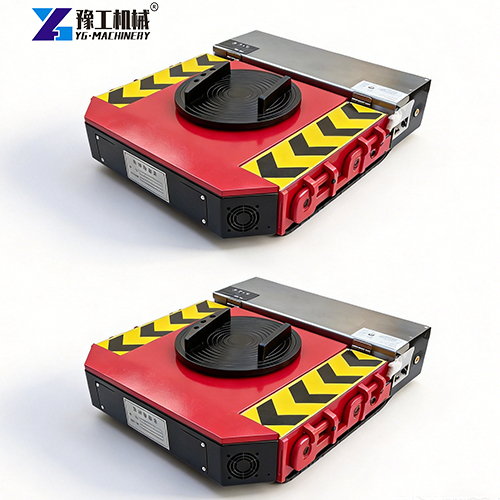

What Are Remote Control Machinery Skates?

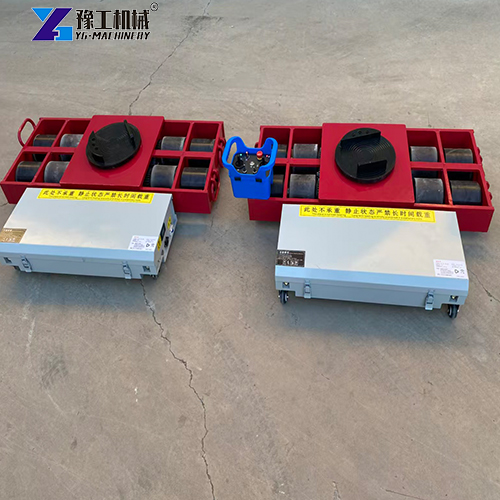

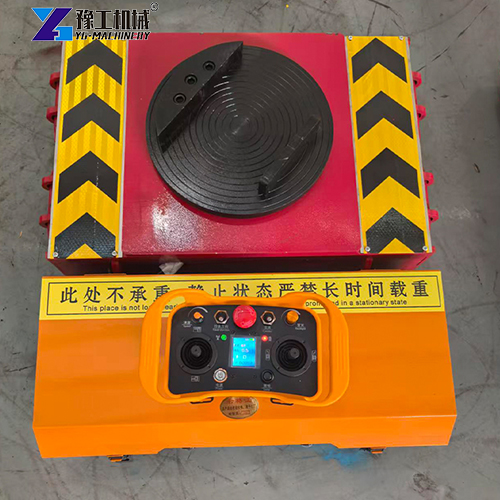

Remote control machinery skates are self-propelled, battery-powered transport platforms designed for moving heavy machinery and industrial loads. No forklifts, cranes, or manual pushing are required. Unlike traditional passive moving trolleys that need external force, they come with built-in drive motors, gearboxes, and wireless control systems. One single operator can move loads that previously needed a whole team of workers.

This system works by placing multiple moving skate units under the load. The units connect wirelessly, and a handheld industrial remote controls direction, speed, and braking. Each unit runs independently but synchronously, evenly distributing weight while moving in coordination. This technology has become the standard for precision equipment relocation in manufacturing, logistics, and energy sectors, where safety and efficiency are critical.

5 Features That Define the Performance of Remote Control Machinery Skates

1. Precise Wireless Remote Control

The industrial wireless remote controller offers an effective control range up to 50 meters, letting the operator keep the best viewing angle during the whole moving process. Single-person operation greatly cuts labor costs and improves safety. Workers stay away from dangerous blind zones and can stop movement immediately if obstacles appear. The remote features dual-channel control, an emergency stop function, and automatic braking when the signal is lost.

2. Strong Performance for Heavy Load Climbing

Covering a full load range of 10 to over 100 tons, these heavy duty machine moving skate systems easily handle slopes of 3 to 15 degrees. High-torque motors paired with reinforced gearboxes maintain traction on unpaved roads and uneven factory floors. High-hardness imported polyurethane wheels protect floors while delivering excellent grip. This makes battery powered machine moving skates suitable for precision indoor work and outdoor site conditions.

3. Flexible 360° In-situ Steering

Independent wheel drive design enables true 360-degree rotation on the spot with zero turning radius. No reversing or complicated operations needed. This feature is essential for narrow workshops, restricted aisles, and spaces where conventional material handling equipment cannot work. Operators can position loads accurately without disconnecting or re-rigging, cutting setup time from hours down to minutes.

4. Modular Synchronized Operation of Multiple Units

Multiple electric load moving skates can sync wirelessly and operate as one coordinated system to handle extra-long, extra-wide, and irregular loads. Synchronized control automatically balances load distribution across all connected units, which is vital for asymmetrical equipment or unevenly weighted cargo. This modular design means you can expand capacity to match specific job requirements, instead of being limited by the rated capacity of a single unit.

5. Long Battery Runtime

The 48V lithium battery system delivers 4 to 8 hours of continuous operation, depending on load weight and terrain. Fast charging enables quick turnaround between shifts, ensuring multi-day projects stay on schedule without mid-operation battery replacement that interrupts workflow.

Request Custom Solution

What Fields Are Electric Load Moving Skates Suitable For?

Factories & Precision Manufacturing

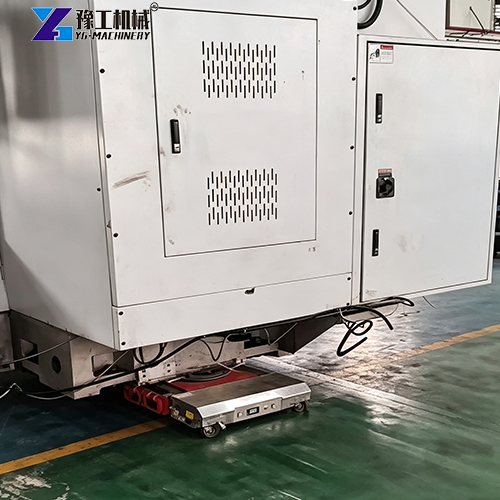

1. Heavy machine tool relocation — Use heavy duty machine moving skates to translate CNC machine tools as a whole. No production line disassembly, avoiding precision loss caused by equipment reassembly.

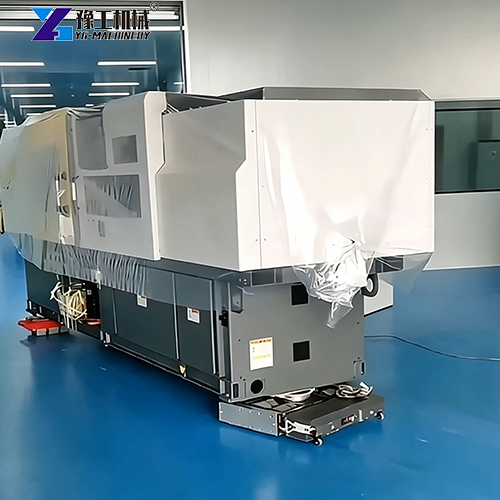

2. Injection molding machine positioning — Ten-ton injection molding machines can be remotely moved by one person with battery powered machine moving skates and precisely placed at reserved workshop stations.
3. Large aerospace component transport — Large precision parts such as aircraft wing sections and engine casings are moved smoothly by synchronized units with minimal vibration to protect workpiece surface quality.
4. Ship hull section shifting — Precise alignment and docking of hull blocks inside dry docks. The 360° steering capability solves operation challenges in confined spaces.

Warehousing & Logistics Hubs

1. Heavy steel coil handling — Single steel coils weigh dozens of tons. Heavy duty machine moving skate replaces traditional gantry crane and forklift combinations for higher efficiency and safety.
2. Large mold transfer — Fast transfer of injection molds and stamping molds between different production lines, reducing mold change downtime.
3. Full transport of oversized pallets — Move extra-wide and high-tonnage pallets in one go. The multi-unit sync mode of electric load moving skates easily handles non-standard-sized goods.
4. Short-distance container transfer at ports — At terminals, remote control machinery skates enable fast transfer between containers and transport vehicles without large lifting equipment.

Engineering & Energy Construction

1. Transformer positioning — Power transformers weigh dozens of tons and require extremely high installation accuracy. The millimeter-level remote precision and 360° steering of battery powered machine moving skates ensure one-time successful positioning for such heavy equipment.
2. Generator set relocation — Diesel generator sets are moved from unloading zones to machine room foundations, fully controlled by one operator, removing safety risks from traditional roller methods.
3. Alternative to precast component hoisting — Horizontal transport of bridge precast beams and building precast slabs. Remote control machinery skates can replace some crane work and lower costs of bringing large machinery to site.
4. Adaptation to complex outdoor terrain — 3 to 15 degree climbing capacity and polyurethane wheel sets allow stable operation on rough site roads and muddy ground.

Discuss Your Project

Why Choose YG Heavy Duty Machine Moving Skate?

Not all heavy machinery moving skates are the same. Our industrial remote controllers provide better range and reliability than consumer-grade alternatives. While competitors cap capacity at 40-50 tons, we offer full coverage from 10 to over 100 tons, plus modular expansion. Synchronized multi-unit connection solves problems that single-unit systems cannot handle at all.

Key differences:

1. True industrial remote control with 50m range vs basic controllers of only 10- 20 m
2. Full capacity lineup from 10 tons to over 100 tons vs limited mid-range options
3. Modular synchronized operation vs single-unit capacity limits
4. 15-degree climbing capability vs standard 3-5 degree limits
5. Long 8-hour runtime vs typical 2-3 hour battery life

Want to know their practical performance? Check our case studies of electric heavy machinery moving skates sold to the USA, Australia, South Korea, and Germany.

Ready to upgrade your heavy load moving operations? Talk to our engineering team about your specific application needs.

Speak with Our Product Manager

FAQs About Remote Control Machinery Skates

Q: How far is the remote control range?

Industrial wireless remote control offers an effective range of up to 50 meters, allowing operators to keep the best viewing position during movement.

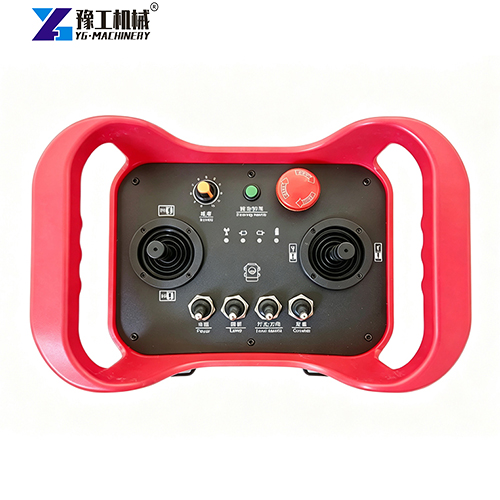

Q: What is the difference between a C7 remote controller and an industrial work remote controller?

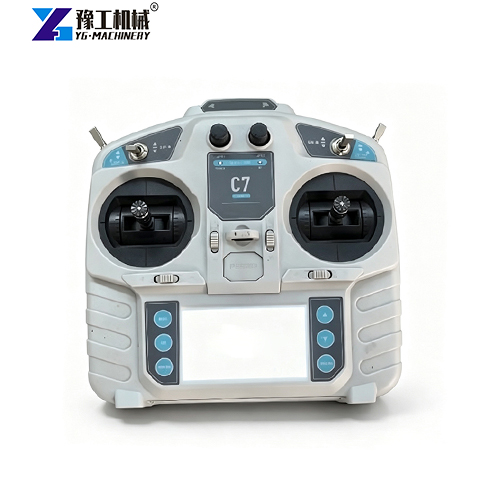

C7 remote controller: high/low speed switch, forward/backward/left/right control. Powered by 4 AA batteries or a power bank, suitable for temporary jobs.

Industrial work remote controller: 0-10 level fine speed adjustment, emergency stop, cruise control. Built-in rechargeable battery with long service life, designed for frequent industrial use. Both support a 50 m control distance.

Q: Can these battery powered machine moving skates work on slopes?

Yes. Our system is rated for slopes of 3 to 15 degrees, depending on model configuration and load weight.

Q: What load capacities are available?

We have single-unit models from 10 tons to 100 tons. Multi-unit synchronized setups support total loads of 10 to over 100 tons.

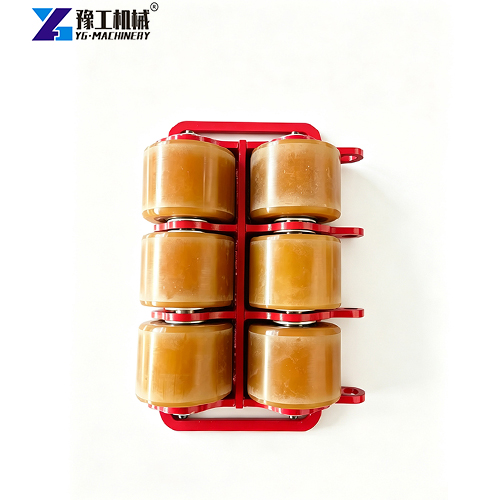

Q: What are auxiliary wheels?

Auxiliary wheels are driven support wheels used together with main units to provide extra support points. Standard setup: one main unit plus two auxiliary wheels to form 3-point support, flexible and stable for steering, meeting the needs of 90% of customers. For special equipment or 4-point support requirements, two main units with two auxiliary wheels can be adopted. Auxiliary wheels adopt a universal design to follow the main unit’s movement, spread load pressure, and protect the equipment bottom.

Q: What multi-unit sync solutions are available?

Standard setup: 1 main unit + 2 auxiliary wheels (3-point support, flexible steering). Heavy-duty setup: 2 main units + 2 auxiliary wheels (4-point support). Narrow space translation setup: 3-4 synchronized main units to achieve in-situ 360° movement without reversing. Select flexibly according to load size and space constraints. We can help configure the optimal solution.

Speak with Our Product Manager

Contact YG

Battery powered heavy machinery moving skates set the standard for safe and efficient heavy equipment relocation in modern industrial operations. Combining precise wireless control, heavy load climbing performance, flexible 360° steering, and modular expansion, these systems solve core challenges of labor cost, safety risks, and operational efficiency.

Whether you relocate precision machine tools, handle warehouse steel coils, or position transformers on construction sites, the right configuration delivers measurable return on investment by cutting labor, shortening job time, and eliminating damage risks. Contact our team now to discuss your requirements and learn how our electric load moving skates can transform your material handling operations.
